Radxa CM3I 2GB RAM + 8GB eMMC + WiFi Compute Module - Based On Rockchip RK3568J - RM118‑D2E8J0W1

The Radxa CM3I is a high-performance computing module powered by the Rockchip RK3568(J) SoC, masterfully integrating a CPU, GPU, NPU, PMU, LPDDR4 memory, and eMMC storage into a compact 70mm x 40mm form factor. This module boasts not only exceptional computational prowess but also remarkable capabilities in graphical rendering and artificial intelligence computations.


This product is 2GB RAM, 8GB eMMC with WiFi connectivity


Datasheet


Specifications

  • Form factor: 70 mm × 40 mm
  • Processor: Rockchip RK3568(J), Quad core Cortex‑A55 (ARM v8) 64‑bit SoC @ 2.0GHz
  • GPU: ARM G52‑2EE GPU ‑ OpenGL® ES1.1 / 2.0 / 3.0 / 3.1 / 3.2 ‑ OpenCL® 2.1 ‑ Vulkan® 1.1
  • NPU: NPU supporting INT8 / INT16 / FP16 / BFP16, computing power is up to 1TOPs@INT8
  • Memory꞉ 2GB LPDDR4 RAM
  • Storage꞉ 8GB Onboard eMMC Compatible with eMMC 5.1 1x SPI Flash 1x SDMMC0
  • Wireless: 2.4GHz and 5.0GHz IEEE 802.11b/g/n/ac wireless & BT 5.0, BLE
  • Ethernet
    • 1x Onboard Gigabit Ethernet PHY
    • 1x Gigabit Ethernet MAC
  • USB
    • 2 × USB 2.0 Host
    • 1 x USB 3.0 Host
    • 1 x USB 3.0 OTG
  • PCIe
    • 1 × PCIe 1‑lane Host, Gen 2 ( 5Gbps )
    • 1 x PCIe 2‑lane(1x2, 1x1+1x1) Host, Gen 3 (16Gbps)
  • Display
    • 1x HDMI up to 4Kx2K@60fps
    • 1x eDP four lanes, 2.7Gps per lane
    • 2x MIPI DSI four lanes, 1.6Gbps per lane
    • 1x LVDS four lanes(muxed with MIPI DSI0)
  • Camera
    • 1x 4-lane MIPI CSI RX or 2x 2-lane MIPI CSI RX
    • 1x 4-lane MIPI_D/C PHY RX
  • Connectivity
    • Up to 8x UART
    • Up to 4x SPI
    • Up to 2x CAN
    • Up to 4x I2C
  • Audio
    • I2S
    • PDM, support mic array

Write a review

Note: HTML is not translated!
Bad Good
Captcha

Warranty Terms :

Branded products (Waveshare/ Raspberry Pi/ Radxa/ DWIN etc) are as per brand warranty terms. Generic products are eligible for replacement within 7 days of delivery based on following conditions.

Products are eligible for a replacement if there is physical damage during transit or a clear manufacturing defect. Any claim for damage/ wrong items/ replacement must be made within 48 hours of successful delivery of the product. Requests for refund of amount or exchange of product(s) will be reviewed on a case by case basis and HUBTRONICS carries final rights to take a final decision on refund, store credit or exchange.

What to take care of ?

Most of our products are technical in nature and require trained personnel to handle them. Any kind of mishandling can result in damage or malfunctioning of the product, it is not possible for us to provide a replacement or refund if the product is damaged due to technical or physical mishandling.

Who pays the return shipping cost?

Free of cost return pickup from delivery address is eligible for products categorized as manufacturing defect/ Damage in transit/ Wrong items delivered. We do not support return pickup for any B2B order or offline orders not placed on website. Buyer need to arrange return shipping for B2B orders.

What voids warranty?

Please note that replacement/ return or refund is not possible if the product is not compatible with your system/application. Please check all the technical details/ dimensions etc. before ordering and contact us for any kind of clarifications.

If product is soldered/ programmed at any point or physically altered in any way, it is not eligible for return/ replacement. If the item requires soldering for testing, please ensure that you use suitable clips or jig to test it without soldering. Any kind of soldering job makes the product ineligible for return or replacement.

Following items are not eligible for return under any circumstances

  • Device Programmers / Dongles
  • Soldering Consumables (Wire, Flux etc)


Tags: Radxa , CM3I , Compute Module
Radxa CM3 IO Board
Radxa CM3 IO Board
Radxa CM3 IO Board is an application board for the ROCK3 Compute Module(CM3) with rich IO features:Based on Radxa CM3, compatible with Raspberry Pi CM..
₹​6,117.12
Ex Gst ₹​5,184.00
Add to Cart
Add to Wish List Compare this Product

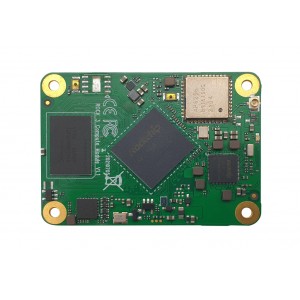

Radxa CM3 2GB RAM + 16GB eMMC + WiFi Compute Module - RM116-D2E16W2
