Waveshare RP2350 CAN Development Board, Based On Raspberry Pi RP2350A Dual-core & Dual-architecture Microcontroller, Onboard XL2515 CAN Controller

Specifications

RP2350A microcontroller chip designed by Raspberry Pi in the United Kingdom
Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard 3 RISC-V processor, flexible clock running up to 150 MHz
520KB SRAM and 4MB onboard Flash memory
Onboard XL2515 CAN controller, fully supports CAN V2.0B specification with communication rate up to 1 Mbps
Type-C connector, keeps it up to date, easier to use
Castellated module allows soldering directly to carrier boards
USB 1.1 with device and host support
Low-power sleep and dormant modes
Drag-and-drop programming using mass storage over USB
2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
Accurate clock and timer on-chip
Temperature sensor
Accelerated floating-point libraries on-chip
12 × Programmable I/O (PIO) state machines for custom peripheral support

Resources

User Manual / Datasheet / Example Codes Etc.

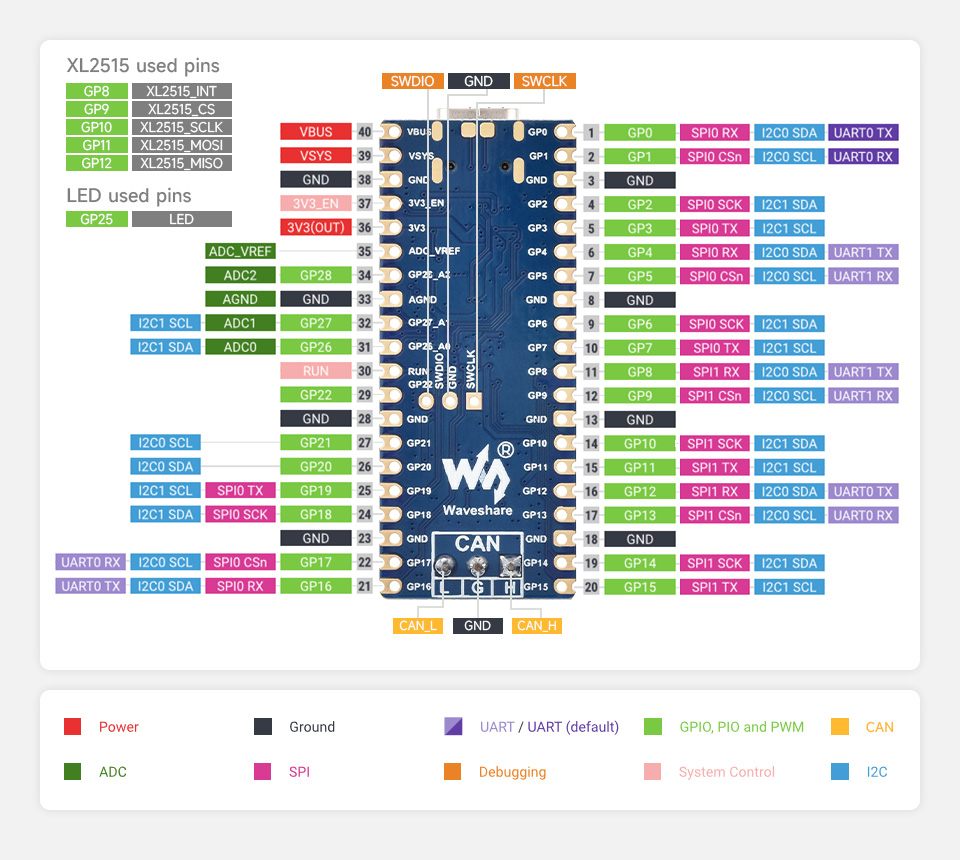

Pinouts

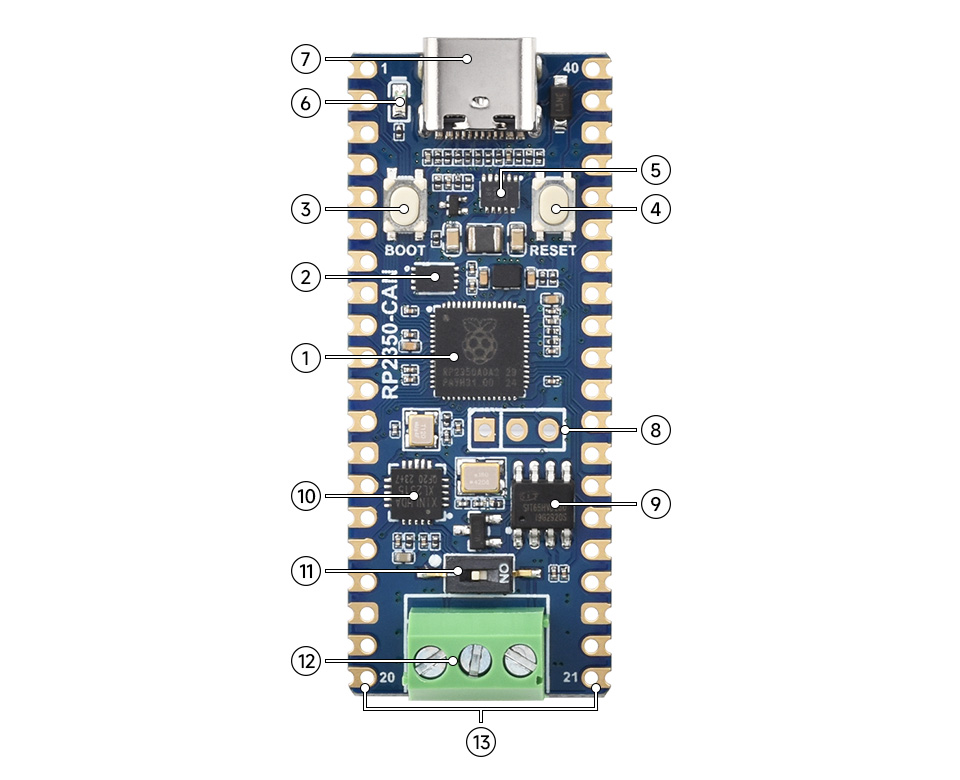

Onboard Peripherals

RP2350A
Dual-core and dual-architecture design, up to 150 MHz operating frequency
P25Q32SH-UXH-IR
4MB NOR-Flash
BOOT button
RESET button
MP28164
high efficiency DC-DC buck-boost chip
User LED
(not power indicator)
USB Type-C connector
for program downloading, supports USB1.1 hosts and slave devices

Debug pins
SIT65HVD230DR
CAN transceiver
XL2515QF20
CAN controller
Terminal resistor selection
enable/disable 120R matching resistor
CAN screw terminal
GPIO header
Compatible with Raspberry Pi Pico pin header

Dimensions
