Name: RP2350 1.47inch Display Development Board, 172×320, 262K Color, Based On RP2350 Dual-core & Dual-architecture Microcontroller, With Colorful RGB LED, USB Type-A connector
Brand: WaveShare Electronics
SKU: 30569
Price: 959.00 INR
Availability: OutOfStock

RP2350 1.47inch Display Development Board, 172×320, 262K Color, Based On RP2350 Dual-core & Dual-architecture Microcontroller, With Colorful RGB LED, USB Type-A connector

WaveShare Electronics

RP2350 1.47inch Display Development Board, 172×320, 262K Color, Based On RP2350 Dual-core & Dual-architecture Microcontroller, With Colorful RGB LED, USB Type-A connector

Based on 0 reviews. - Write a review

₹959.00

₹812.71 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 8
B2B GST Credit Available

Price in reward points: 813

Stock: 0 in Stock
SKU: 30569
Delivery Time
Bulk & B2B RFQ

Buy Now NOTIFY WHEN AVAILABLE

Plan to Buy Later ? Add to Wish List

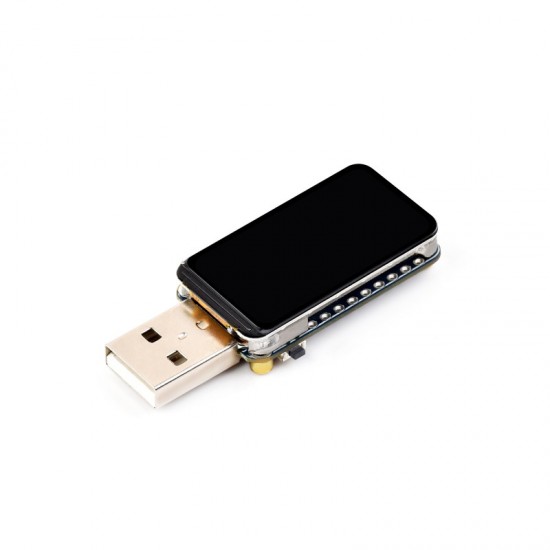

RP2350 1.47inch Display Development Board, 172×320, 262K Color, Based On RP2350 Dual-core & Dual-architecture Microcontroller, With Colorful RGB LED, USB Type-A connector

This product is a low-cost, high-performance MCU board designed by Waveshare. Tiny size with onboard 1.47inch LCD display, TF card slot, and colorful RGB LED, etc., which makes it easy for you to develop and integrate it into products quickly.

Features

RP2350A microcontroller chip designed by Raspberry Pi in the United Kingdom
Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard3 RISC-V processor, flexible clock running up to 150 MHz
520KB SRAM and 16MB onboard Flash memory
Type-C connector, keeps it up to date, easier to use (for Type-C port version only)
Onboard 1.47inch LCD display, 172×320 resolution, 262K color
USB 1.1 with device and host support
Low-power sleep and dormant modes
Drag-and-drop programming using mass storage over USB
Accurate clock and timer on-chip
Temperature sensor
Built-in RGB LED with clear acrylic sandwich panel for cool lighting effects

Resources

User Manual / Datasheet / Example Codes Etc.

Pinouts

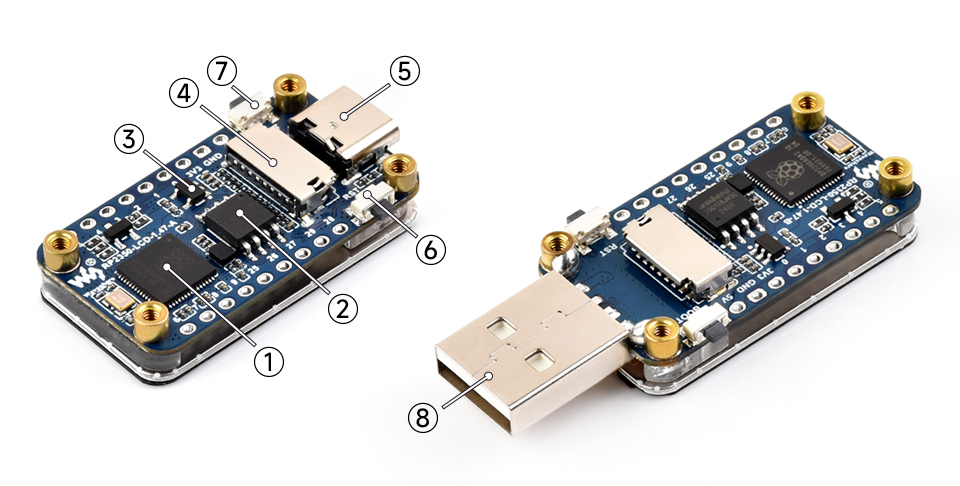

Onboard Peripherals

RP2350A
Dual-core and dual-architecture design, up to 150 MHz operating frequency
W25Q128JVSIQ
16MB NOR-Flash
RT9193-33PB
300mA low dropout, low noise, ultra-fast LDO
TF card slot

USB Type-C connector (for Type-C version only)
for program burning, USB 1.1 with device and host support
RST button
BOOT button
USB Type-A connector (for Type-A version only)
for program burning

Dimensions

Package Contents

RP2350-LCD-1.47-A x1
Black header ×2
