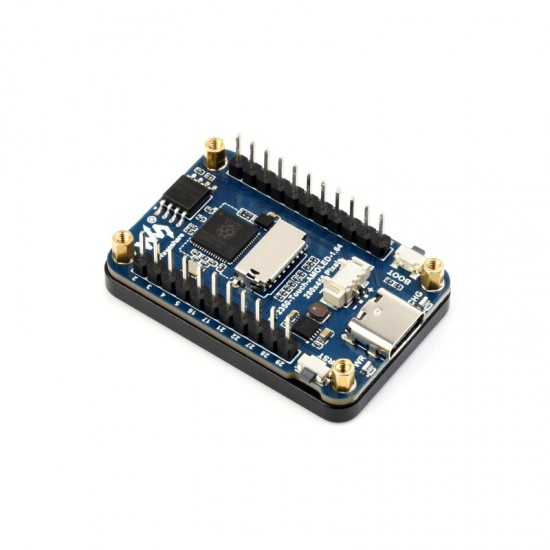

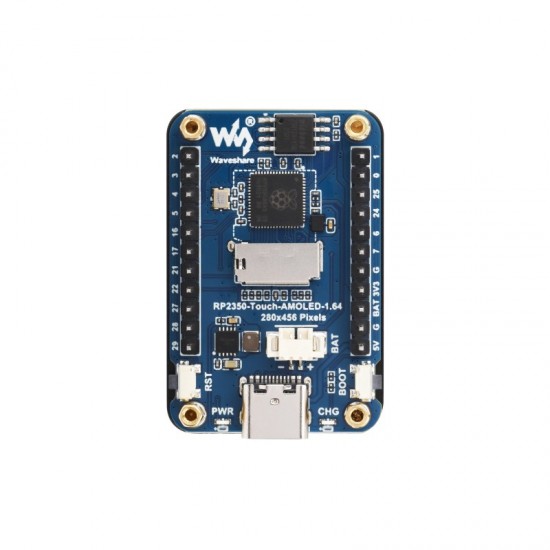

RP2350-Touch-AMOLED-1.64-M is a high-performance, highly integrated MCU board designed by Waveshare. It features a compact size with an onboard 1.64inch AMOLED capacitive touch display, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), RTC chip, TF card slot and so on, making it easy to develop and integrate into products quickly.

Features

RP2350A microcontroller chip designed by Raspberry Pi in the United Kingdom
Adopts unique dual-core and dual-architecture design: dual ARM Cortex-M33 or dual Hazard3 RISC-V processors support, flexible clock running up to 150 MHz
520KB of SRAM, and 16MB onboard Flash memory
Type-C connector for easier use

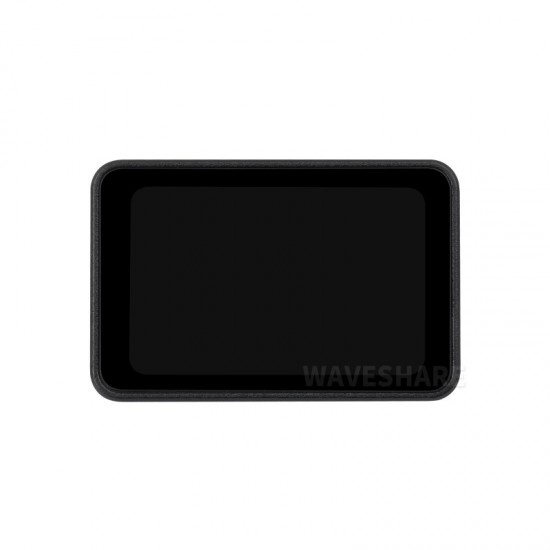

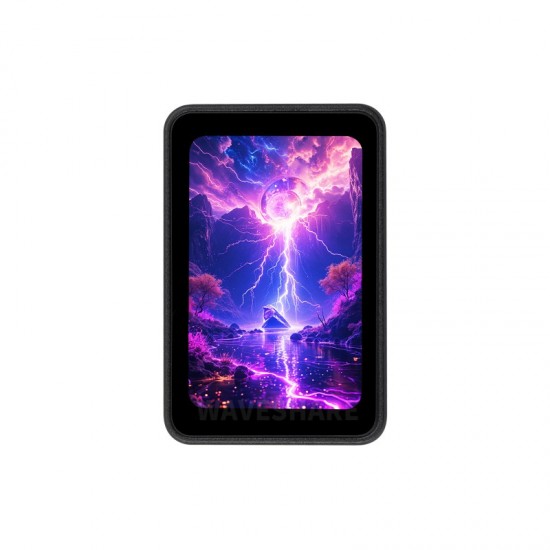

Onboard 1.64inch AMOLED capacitive touch display, QSPI interface, 280 × 456 resolution, 16.7M color
Integrated CO5300 display driver and FT3168 capacitive touch chip, using QSPI and I2C communication respectively
Lithium battery recharge/discharge header, suitable for mobile applications
USB 1.1 with device and host support
Low-power sleep and dormant modes
Drag-and-drop programming using mass storage over USB
Adapting 17 × GPIO pins for flexible configuration of pin function
2 × I2C, 2 × UART, 3 × 12-bit ADC, 13 × controllable PWM channels
Accurate clock and timer on-chip
Temperature sensor
Accelerated floating-point libraries on-chip
12 × Programmable I/O (PIO) state machines for custom peripheral support

Resources

User Manual / Datasheet / Example Codes Etc.

Specifications

Display Panel	AMOLED	Display Size	1.64 inch
Resolution	280 × 456	Display Colors	16.7M
Brightness	350 cd/㎡	Contrast Ratio	60000:1
Communication Interface	QSPI	Driver IC	C05300
Touch	Supported	Touch IC	FT3168

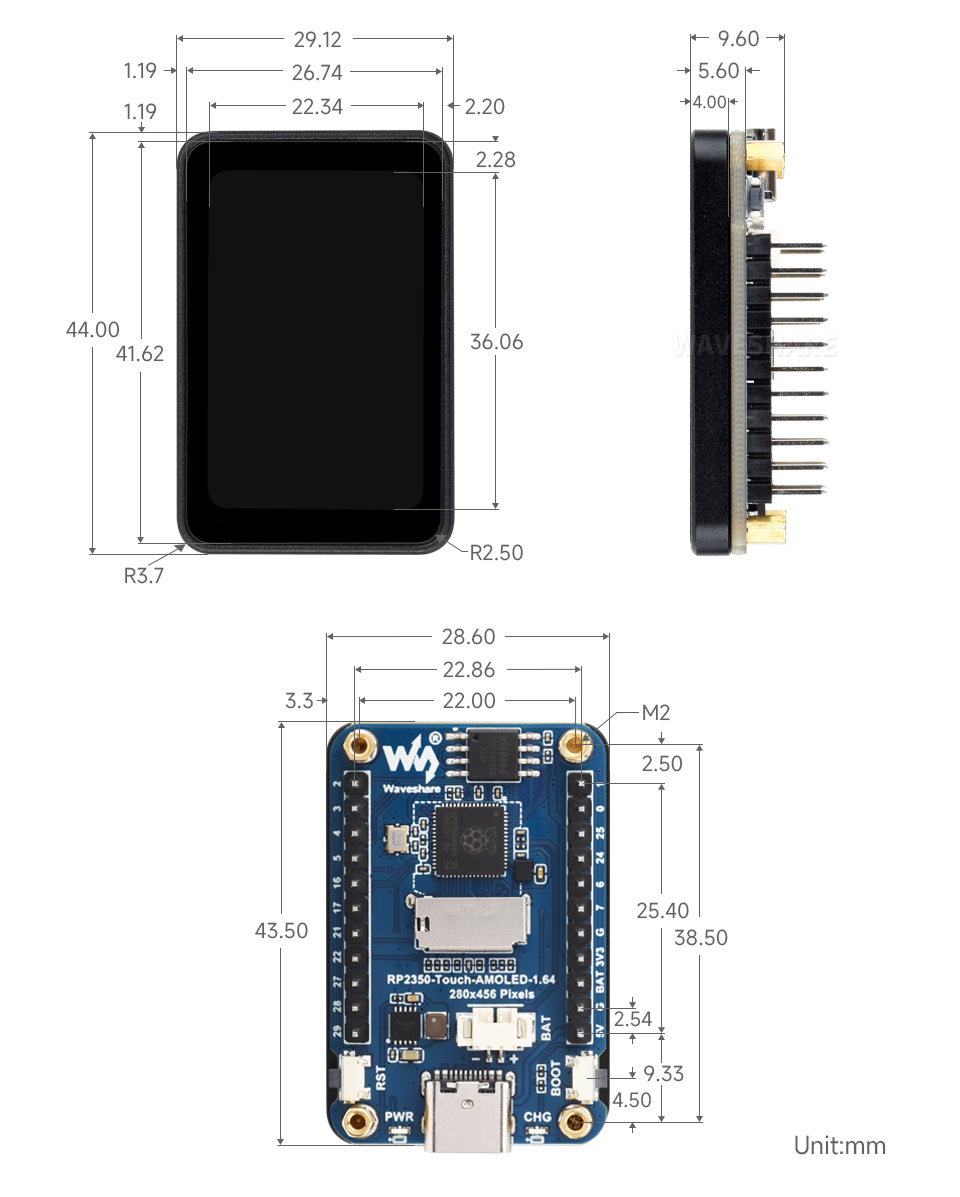

Dimensions
