RP2350 1.85inch Round LCD Development Board, 360×360, 65K Color, Dual-core And Dual-architecture Design

The RP2350-Touch-LCD-1.85C is a high-performance, highly integrated microcontroller development board designed by Waveshare. Tiny size with onboard 1.85inch capacitive IPS display, RTC chip, TF card slot, and other peripherals for easy development and integration into products.

User Manual / Datasheet / Example Codes Etc.

Features

RP2350A microcontroller chip designed by Raspberry Pi in the United Kingdom
Adopts unique dual-core and dual-architecture design: dual ARM Cortex-M33 or dual Hazard3 RISC-V processors support, flexible clock running up to 150 MHz
Built-in 520KB Static RAM, with onboard 16MB Flash
Type-C port for easier use
Onboard 1.85inch capacitive touch LCD, 360 × 360 resolution, 65K color
Supports capacitive touch control via I2C header, with interrupt support
Onboard UART, I2C, and MX1.25 2PIN Batt headers, etc.
USB 1.1 with device and host support
Low-power sleep and dormant modes
Drag-and-drop programming using mass storage over USB
Adapting 18 × multi-functional GPIO pins
2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 12 × controllable PWM channels
Accurate clock and timer on-chip
Built-in temperature sensor for real-time monitoring of chip temperature
12 × programmable I/O (PIO) state machines for custom peripheral support

Specifications

Touch Chip: CST816
Touch Port: I2C
Display Chip: ST77916
Display Interface: QSPI
Resolution: 360(H)RGB x 360(V)
Display Size: Φ46.08mm
Display Panel: IPS
Pixel Pitch: 0.128mm x 0.128mm

Package Includes

RP2350-Touch-LCD-1.85C x1
SH1.0 4PIN cable ~100mm x2
8Ω 2W speaker x1

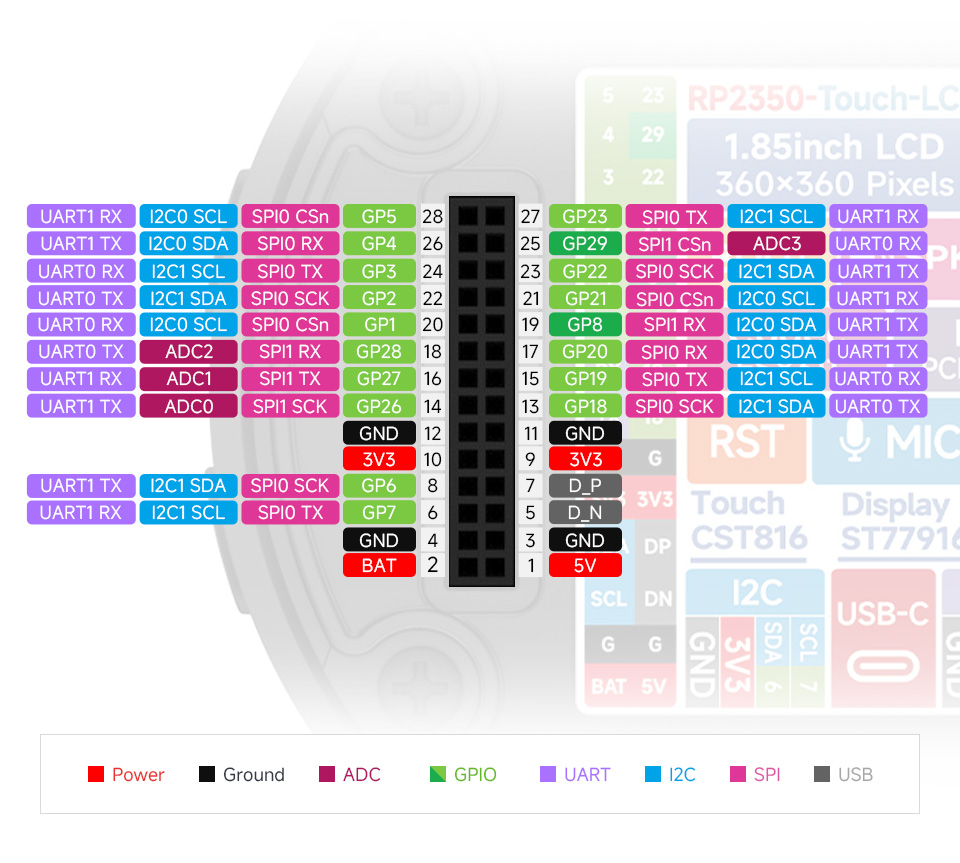

Interface definition

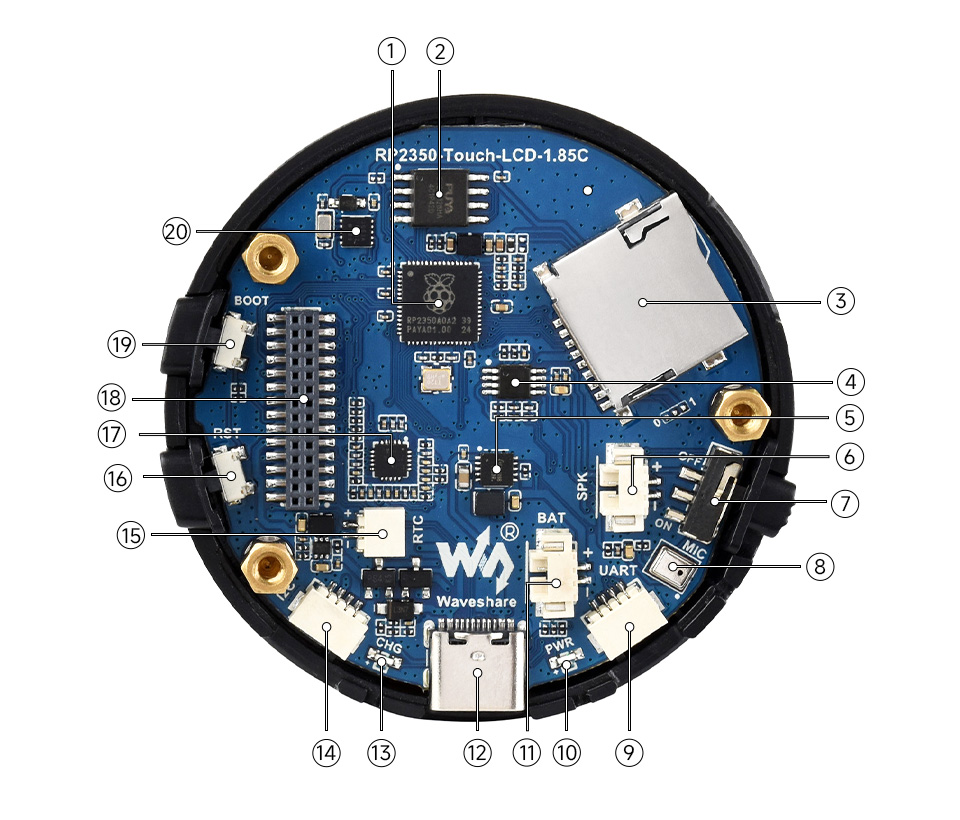

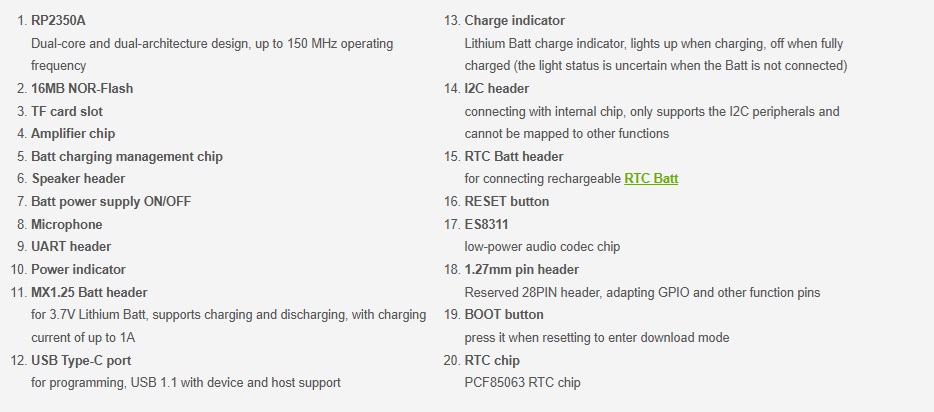

What's On Board

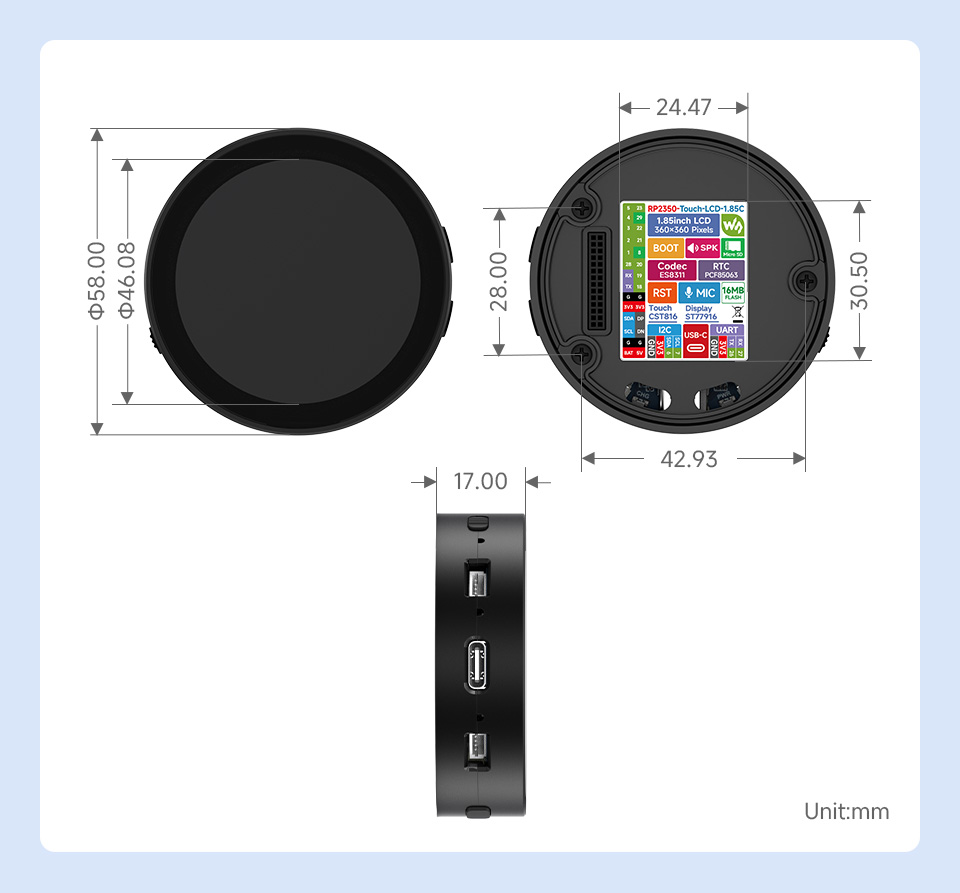

Dimensions
