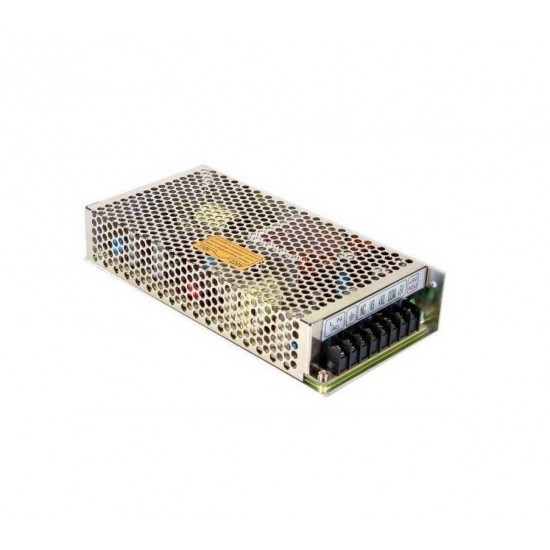

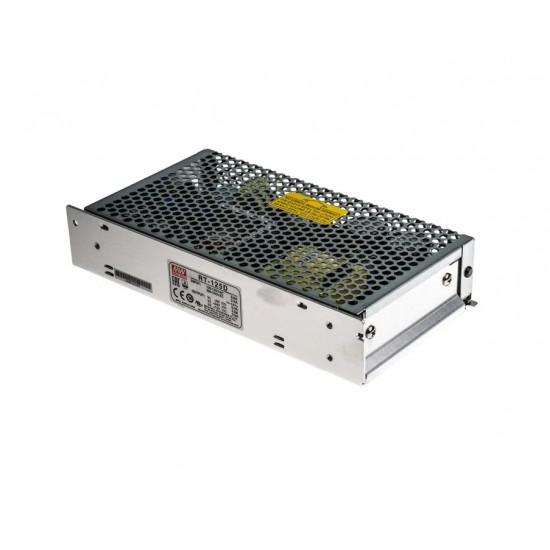

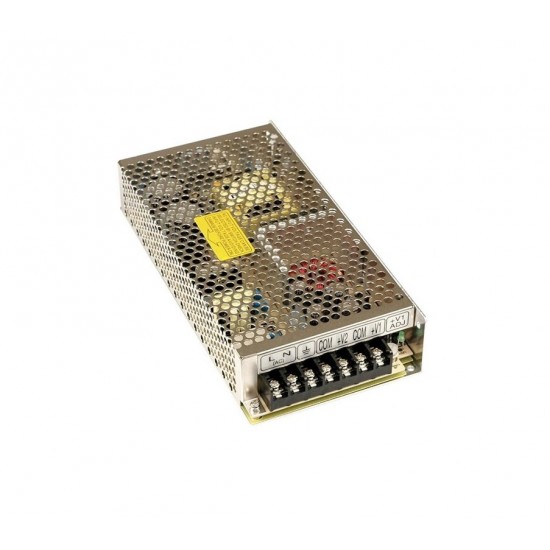

Name: Mean Well RT-125D 5V 8A + 24V 3A + 12V 2A 136W Triple Output Switching Power Supply (SMPS)
Brand: Mean Well
SKU: 07528
Price: 3249.00 INR
Availability: OutOfStock

Mean Well RT-125D 5V 8A + 24V 3A + 12V 2A 136W Triple Output Switching Power Supply (SMPS)

Mean Well

Mean Well RT-125D 5V 8A + 24V 3A + 12V 2A 136W Triple Output Switching Power Supply (SMPS)

This product qualifies for Free Surface Shipping !

All orders with value above 1999+GST are eligible for free delivery in Surface mode. (Not applicable for B2B offline orders)

Based on 0 reviews. - Write a review

₹3,249.00

₹2,753.39 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 28
B2B GST Credit Available

Price in reward points: 2753

Stock: 0 in Stock
SKU: 07528
Delivery Time
Bulk & B2B RFQ

Buy Now NOTIFY WHEN AVAILABLE

Plan to Buy Later ? Add to Wish List

Mean Well RT-125D 5V 8A + 24V 3A + 12V 2A 136W Triple Output Switching Power Supply (SMPS)

The Mean Well RT-125D is a reliable and compact triple-output switching power supply designed to deliver multiple DC voltages from a single unit. It provides 5V at 8A, 12V at 2A, and 24V at 3A, with a total power output of 136W, making it ideal for systems that require different voltage rails simultaneously.

Built for industrial and commercial applications, the RT-125D features a wide AC input range, high efficiency, and stable regulated outputs. It includes essential protection functions such as short circuit, overload, and overvoltage protection to ensure safe and continuous operation. The robust metal enclosure offers excellent heat dissipation and durability for long-term use.

This triple-output SMPS is commonly used in automation systems, CNC machines, LED signage, control panels, communication equipment, and embedded electronics where multiple voltage levels are needed from a single power source. Its compact design and dependable performance make it a cost-effective and space-saving power solution.

Datasheet

Features

Triple DC Outputs: Provides three regulated outputs — 5V, 12V, and 24V — from a single unit
High Power Capability: Total rated output power of 136W
Reliable SMPS Design: Compact and efficient switching power supply
Wide AC Input Range: Compatible with 110–240V AC mains for global use
Built-In Protection: Short circuit, overload, overvoltage, and overtemperature protections
Stable Regulated Outputs: Ensures consistent voltage delivery under load
Durable Construction: Robust metal housing for industrial environments
Low Noise & Ripple: Clean power for sensitive electronics
Heat Dissipation: Ventilated design for efficient cooling
Versatile Use: Ideal for systems requiring multiple voltage rails without multiple supplies

Specifiactions

Model: Mean Well RT-125D
Total Rated Power: 136W
Input Voltage Range: 110–240V AC (universal input)
Frequency Range: 47–63Hz
Output 1:

Voltage: 5V DC
Current: 8A
Power: 40W

Output 2:

Voltage: 12V DC
Current: 2A
Power: 24W

Output 3:

Voltage: 24V DC
Current: 3A
Power: 72W

Total Output Power: 136W
Regulation: ±5% (varies by output)
Ripple & Noise: Typically ≤ 150mV p-p
Protections: Short circuit / Overload / Overvoltage / Overtemperature
Operating Temperature: –20°C to +60°C (with derating)
Storage Temperature: –40°C to +85°C
Humidity: 20–90% RH (non-condensing)
Cooling Method: Natural convection / Ventilated enclosure
Safety Standards: CE, UL, RoHS compliant
Mounting: Chassis mount
Dimensions: 199*98*38mm (L*W*H)

Package Includes

1x Mean Well RT-125D 5V 8A + 24V 3A + 12V 2A 136W Triple Output Switching Power Supply (SMPS)
