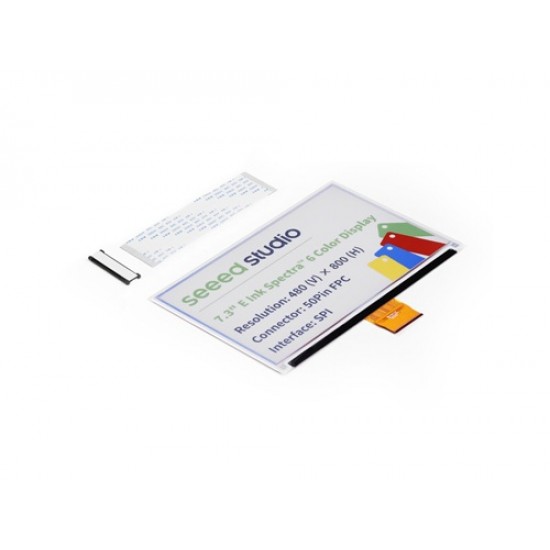

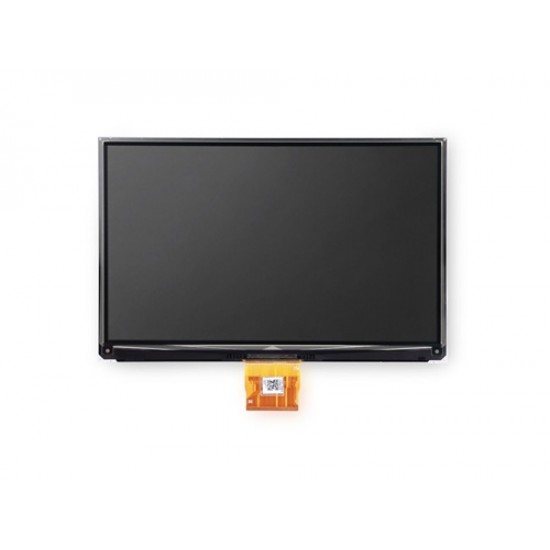

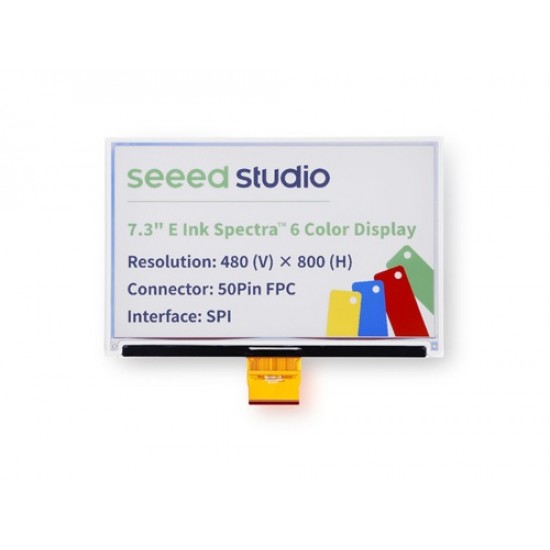

Seeed Studio 7.3 Inch spectra™ 6 E-Ink / ePaper Display with 800x480 Pixels, SPI interface, Support XIAO/Arduino (MPN:100064541)

Seeed Studio 7.3 Inch spectra™ 6 E-Ink / ePaper Display with 800x480 Pixels, SPI interface, Support XIAO/Arduino

The 7.3 inch spectra™ 6 ePaper Display offer a high-quality, low-power solution for a wide range of applications. The model features a 800x480 resolution, black, white, yellow, red, green and blue display with a diagonal size of 7.3 inches. With a fast refresh rate and excellent contrast, this display is ideal for e-readers, smart wearables, and other portable devices.

User Manual / Datasheet / Example Codes Etc.

Features

• Vibrant Spectra™ 6 Technology Display: Showcase black, white, yellow, red, green and blue colors more than just black and white, resulting in striking visuals and clear information.
• Ultra-Low Power Consumption: The ePaper consumes power only during updates, resulting in longer battery life and greater energy efficiency.
• Developer Friendly Integration: Optimized for the XIAO ePaper Display Boards EE04 (powered by the XIAO ESP32-S3 Plus) and EN04 (powered by the XIAO nRF52840 Plus), both with a reserved battery connector and user buttons to speed up prototyping and project development.
• Wide Range of Applications: Well-suited for applications such as electronic photo album, conference room signage, logistics tracking boards, and IoT dashboards, where high visibility, multi-color display, and low power consumption make a real impact.

Note

• If your epaper has been idle for a long time, you can clear the screen content, which can effectively prevent the residual shadow and increase the screen life.
• Avoid keeping the same image on the screen for more than one day, as this may cause image retention. It is recommended to refresh the display at least once a day.
• Please refresh the screen as infrequently as possible when using and debugging the program. Refreshing the screen at high speed for a long period of time may also reduce the service life of the screen.

Specifications

• Type: Dot Matrix
• Size: 7.3 inch
• Active Area(mm): 160 (H) × 96 (V)
• Resolution: 800 (H) × 480 (V)
• Pixel Pitch(mm): 0.200 × 0.200
• Display Color: Black, White, Yellow, Red, Green and Blue
• Interface: SPI
• Connector: 50 Pin FPC, 0.5mm Pitch
• Driver Mode: Support XIAO/Arduino/MicroPython
• Drawing: Support GUI Drawing

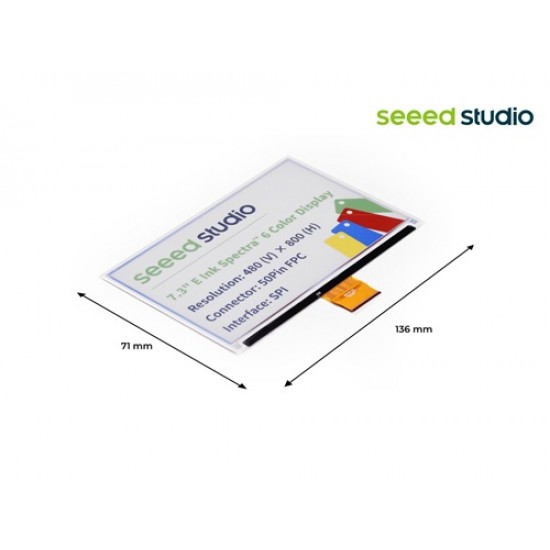

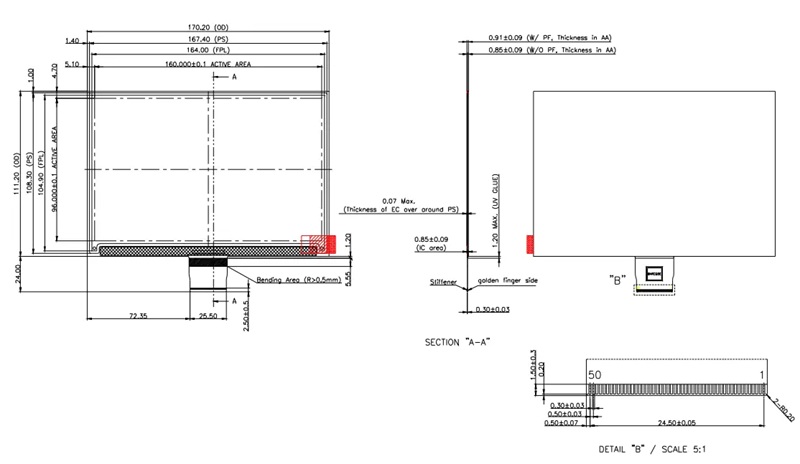

• Outline Dimension(mm): 170.2(H) x 111.2(H) × 0.9 (D)
• Weight(g): 33
• Weight(g): 60±7

Applications

• Reading equipment
• Retail shelf labels
• Conference room signage
• logistics tracking boards
• Smart home dashboards

Package Includes

• 1x Seeed Studio 7.3Inch spectra™ 6 E-Ink / ePaper Display with 800x480 Pixels, SPI interface, Support XIAO/Arduino
