Luckfox PicoKVM Ext Expansion Board, Compatible With PCIe ×1 / ×4 / ×8 / ×16 Slots, Adapting Motherboard USB Ports, Works With Luckfox PicoKVM For Remote Power Management

The Luckfox PicoKVM Ext Expansion Board is a versatile add-on designed to extend the functionality of the Luckfox PicoKVM system, enabling seamless remote power management and enhanced connectivity. Engineered for compatibility with PCIe ×1, ×4, ×8, and ×16 slots, this expansion board easily integrates with a wide range of motherboards, making it ideal for server management, remote diagnostics, and embedded system control.

This board adapts motherboard USB ports to work efficiently with the PicoKVM, allowing users to remotely control system power functions such as reboot, shutdown, and startup without physical access. It is particularly useful for IT administrators, data centers, and DIY enthusiasts who require reliable out-of-band management solutions.

Built with high-quality components, the PicoKVM Ext Expansion Board ensures stable performance and easy installation. Whether you’re managing headless systems or maintaining remote servers, this expansion board provides a convenient and cost-effective solution for remote hardware control.

User Manual / Datasheet / Example Codes Etc.

Features

Compatible with PCIe ×1 / ×4 / ×8 / ×16 slots
Enables remote power management via Luckfox PicoKVM
Adapts motherboard USB ports for seamless integration
Ideal for servers, embedded systems, and remote administration
Easy installation with reliable performance
Compact and efficient design for various setups

Specifications

Power Supply Modes

PCIe power (12V)
USB power (selectable via onboard switch)

USB Connectivity

USB-C port (via motherboard USB header)
USB-A port (via motherboard USB header)

Motherboard Interfaces

USB header connection for data/power adaptation
Dual front panel headers for simultaneous connection to motherboard and chassis

IO Control Interface

Dedicated IO control connector for power/reset signal control

Remote Control Functions (with PicoKVM)

Remote power ON/OFF
Restart / force shutdown
Power status monitoring via web interface

Installation

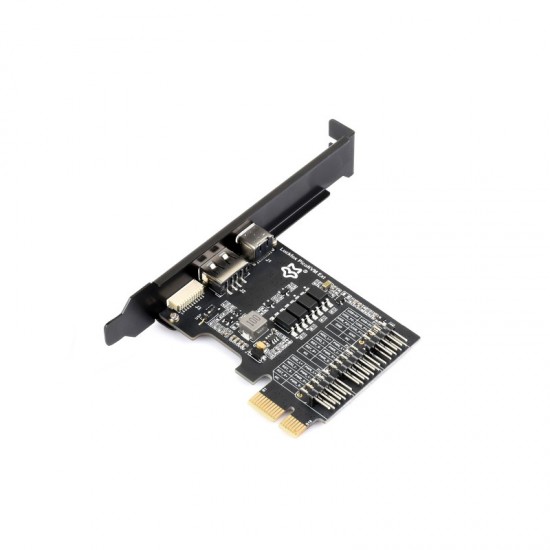

Includes full-height metal bracket
Fits standard PC chassis without additional space requirements

Package Includes

Luckfox PicoKVM Ext (with full-height metal bracket) x1
Motherboard USB extension 9PIN cable x1
Motherboard panel extension 9PIN cable x1
SH1.0 10PIN cable ~1m x1

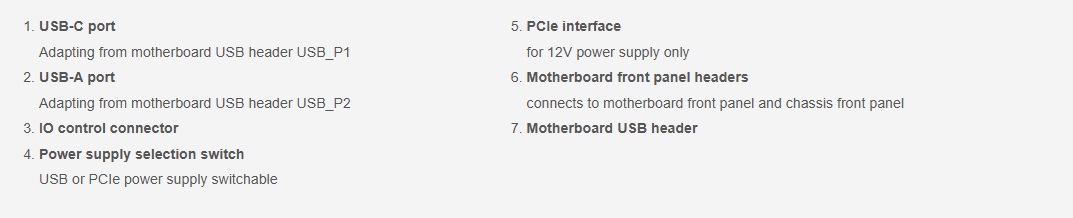

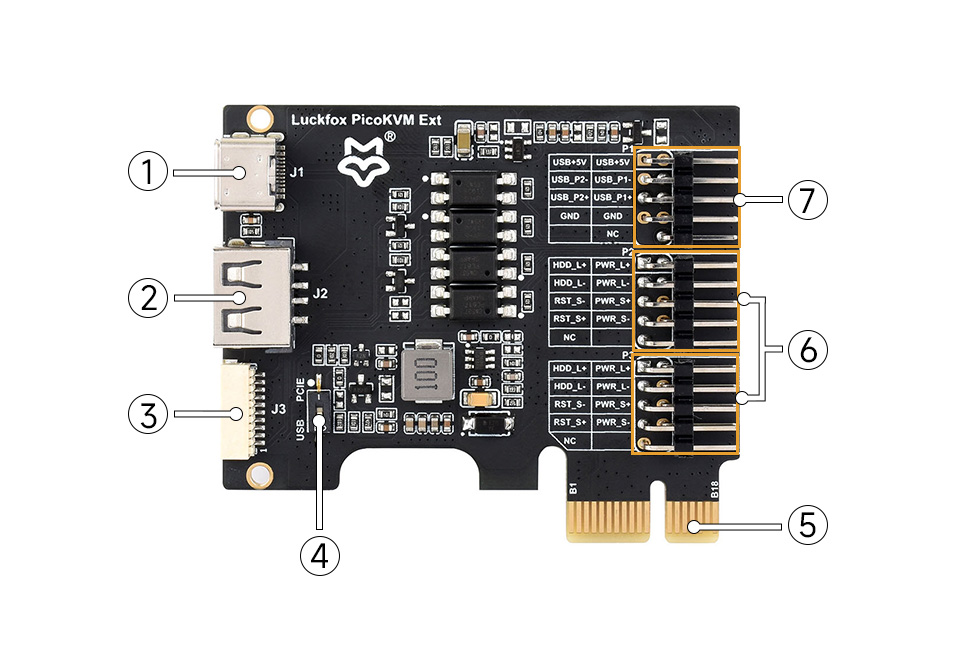

What's On Board

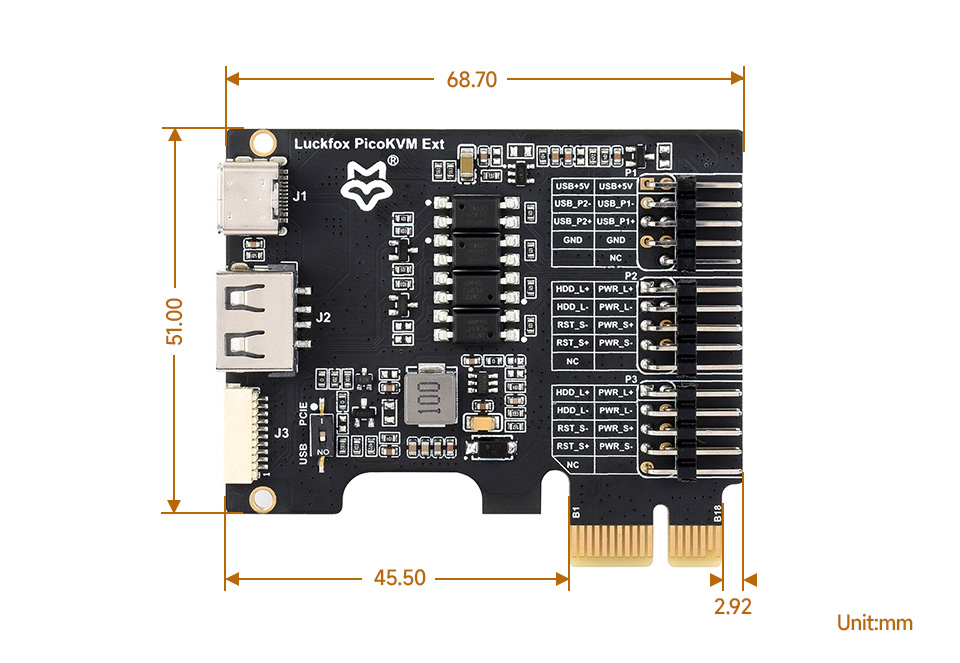

Dimensions
