Name: Solar Power Manager Module (D), Supports 6V~24V Solar Panel and Type-C Power Adapter, 5V/3A Regulated Output
Brand: WaveShare Electronics
SKU: 26362
Price: 903.00 INR
Availability: OutOfStock

Solar Power Manager Module (D), Supports 6V~24V Solar Panel and Type-C Power Adapter, 5V/3A Regulated Output

WaveShare Electronics

Solar Power Manager Module (D), Supports 6V~24V Solar Panel and Type-C Power Adapter, 5V/3A Regulated Output

Based on 0 reviews. - Write a review

₹903.00

₹765.25 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 8
B2B GST Credit Available

Price in reward points: 765

Stock: 0 in Stock
SKU: 26362
Delivery Time
Bulk & B2B RFQ

Buy Now NOTIFY WHEN AVAILABLE

Plan to Buy Later ? Add to Wish List

Solar Power Manager Module (D), Supports 6V~24V Solar Panel and Type-C Power Adapter, 5V/3A Regulated Output

This solar power management module is designed for 6V~24V solar panels. It can charge the 3.7V rechargeable Li battery through a solar panel or Type-C connection and provides 5V/1A regulated output. The module features MPPT (Maximum Power Point Tracking) function and multi-protection circuits, therefore, it can keep working with high efficiency, stability, and safety. It is suited for solar-powered, low-power IoT, and other environmental protection projects. Supports MPPT (Maximum Power Point Tracking) function, maximizing the efficiency of the solar panel.

User Manual / Datasheet / Example Codes Etc.

Features

Supports MPPT (Maximum Power Point Tracking) function, maximizing the efficiency of the solar panel.
Supports solar panel / Type-C connection battery charging.
For 6V~24V solar panel, supports automatic voltage adaptation, DC-002 jack input, or screw terminal input, with input reverse connection protection.
Several LED indicators, for monitoring the status of solar panels and batteries.
Multi-protection circuits: overcharge / over-discharge / reverse protection/overheat/over current, stable and safe to use.

Specifications

SOLAR IN : 6V ~ 24V
RECHARGING : Solar panel, power adapter, USB
BATTERY : 3x 18650 Li-ion battery (NOT included)
USB INPUT : 5V (TYPE-C, with PD quick charge support)
5V OUTPUT : 5V / 3A (TYPE-C, screw terminal)
RECHARGING CUTOFF VOLTAGE : 4.2V ± 1％
OVER DISCHARGING PROTECTION VOLTAGE : 3.0V ± 1％
SOLAR PANEL RECHARGING EFFICIENCY : ~78%
USB RECHARGING EFFICIENCY : ~93%
BATTERIES BOOST OUTPUT EFFICIENCY : ~90%
QUIESCENT CURRENT (MAX) : <2mA
OPERATING TEMPERATURE : -40℃ ~ 85℃
DIMENSIONS (MM) : 45.0 × 40.0 × 10.1

Package Includes

Solar Power Manager (D) x1
Screws pack x1

What's On Board

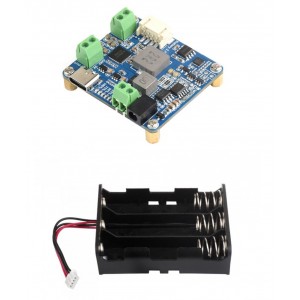

1. Solar panel charging input:

charged by solar panel via DC-002 jack or screw terminal, self-adaptive input voltage

2. Type-C charging input:

charged by 5V power adapter via Type C connector, or outputs 5V for external device

3. Power output:

screw terminal: 5V/3A output

4. Battery interfaces:

for connecting 3.7V rechargeable Li battery via screw terminal or PH2.0 4P connector

5. SW6106:

USB power management chip, for USB charging and 5V/3A boost output

6. CN3791:

solar power management chip, for solar panel charging and buck input

7. XB8886A

Li battery over-charge / over-discharge protection

8. Battery capacity indicators

lights up when charging or under load connection, and will turn off after 30s when there is no load connected

9. Solar panel charging indicators:

Charge: on when solar panel charging
Done: on when the battery is full charged by solar panel

Application Examples

Dimensions
