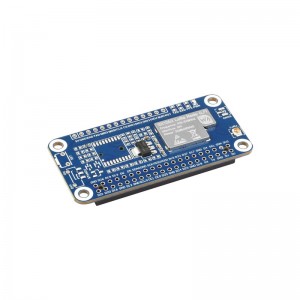

SX1262 433/470MHz LoRaWAN Node Module Expansion Board for Raspberry Pi, With Magnetic CB antenna & GNSS Function
This series of products are LoRa modules using the new generation of SX1262 RF chip, with the features of long communication distance and strong anti-interference ability. Suitable for Sub-GHz frequency band network, and is available in LF (410~510MHz) or HF (850~930MHz) frequency band versions. Combined with a LoRa gateway, it can be connected to servers such as TTN to build a LoRaWAN network. In addition to the basic LoRaWAN version, it also provides optional GNSS positioning function with GPS/BD support.
User Manual / Datasheet / Example Codes Etc.
Features
Common features:
- Standard Raspberry Pi 40PIN GPIO header, supports Raspberry Pi series boards
- The new generation SX1262 has higher power efficiency and longer transmission distance than the SX1278
- Suitable for Sub-GHz band, combined with the gateway, can be quickly connected to a cloud server such as TTN to build a LoRaWAN network
GNSS features:
- Onboard L76K module with GPS/BD support, provides accurate clock and location info for node module
- Onboard button cell holder, supports ML1220 rechargeable cell, for preserving ephemeris information and hot starts
- Onboard 4 LED indicators for module operating status
- Comes with online development resources and manual (example in C)
Specifications
- RF CHIP : SX1262
- FREQUENCY BAND : LF: 410 ~ 510MHz / HF: 850 ~ 930MHz
- MODULATION : LoRa / (G)FSK
- DATA RATE : LoRa: 0.018 ~ 62.5Kbps / (G)FSK: 0.6 ~ 300Kbps
- EMIT POWER : [email protected]
- SPREADING FACTOR : SF7 ~ SF12
- OPERATING VOLTAGE : 3.3V
- MODULE CURRENT CONSUMPTION : emitting current: 107mA@22dBm / receiving current: 5.3mA@125KHz
- COMMUNICATION BUS : SPI
- OPERATING TEMPERATURE : 0 ~ 50℃
- INTERFACE : 40PIN GPIO header
GNSS Specifications
- GNSS MODULE : L76K
- GNSS TYPE : GPS/GLONASS/BDS/QZSS
- L1 BAND RECEIVER (CHANNELS) : 32 Tracking ch/72 Acquisition ch
- A-GNSS : support
- RECEIVING SENSITIVITY (ACQUISITION, RE-ACQUISITION, TRACKING) : -148dBm, -160dBm, -162dBm
- TTFF (TIME TO FIRST FIX) COLD STARTS : 30s, Autonomous / 5.5s, With AGNSS
- POSITION ACCURACY : 2.0m CEP
- SPEED ACCURACY : 0.1m/s
- ACCELERATION ACCURACY (MAX) : 0.1m/s²
- UART RATE : Range: 4800~115200bps / Default: 9600bps
- GNSS DATA UPDATE RATE : Max: 5Hz/ Default: 1Hz
Package Includes
- SX1262 433/470M LoRaWAN/GNSS HAT x1
- 433/470M Magnetic CB antenna x1
- GPS antenna x1
- IPEX to SMA adapter cable ~17cm x2
- Screws pack x1
- 2×20PIN female pinheader x1
Pinout Definition
What's On Board
- SX1262
LoRa module - L76K
GNSS module - Power chip
5V to 3.3V LDO - GPS STANDY mode ON/OFF
OFF: turn off STANDY and GPS works normally
ON: turn on STANDY, GPS stops outputting NMEA - SET button
Press to wake up the GNSS module in sleep mode
- GNSS module IPEX 1 connector
L76K antenna connector - LoRa module IPEX 1 connector
LoRa antenna connector - Status Indicator
PWR: power indicator
RXD/TXD: UART RX/TX indicator
PPS: GPS status indicator - Raspberry Pi 40PIN GPIO header
for connecting with Raspberry Pi series boards - LoRa module and GNSS module pin header
Dimensions
