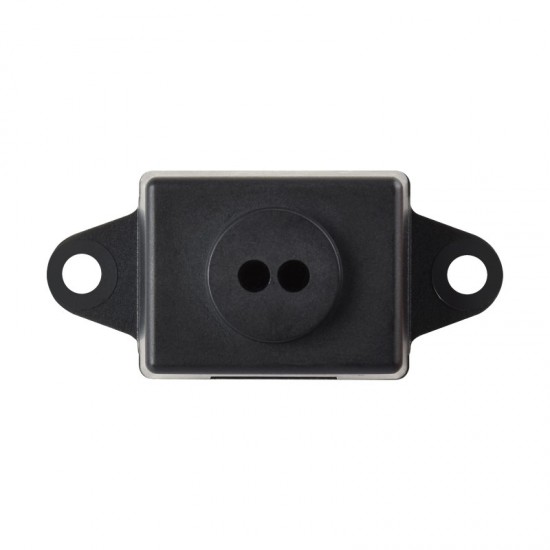

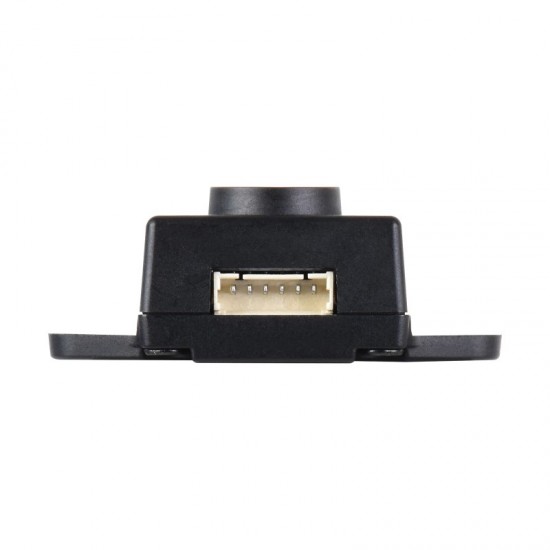

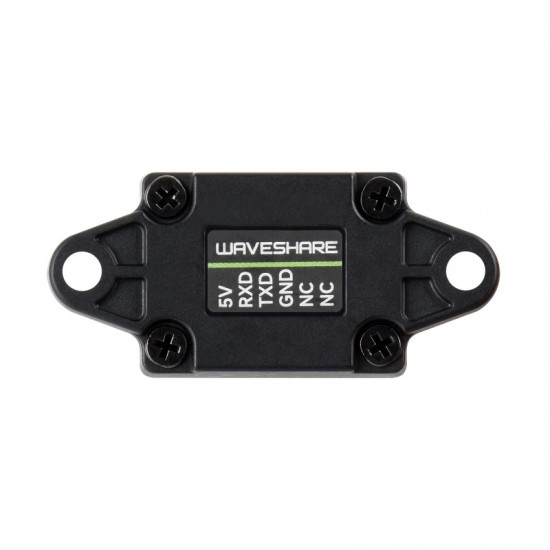

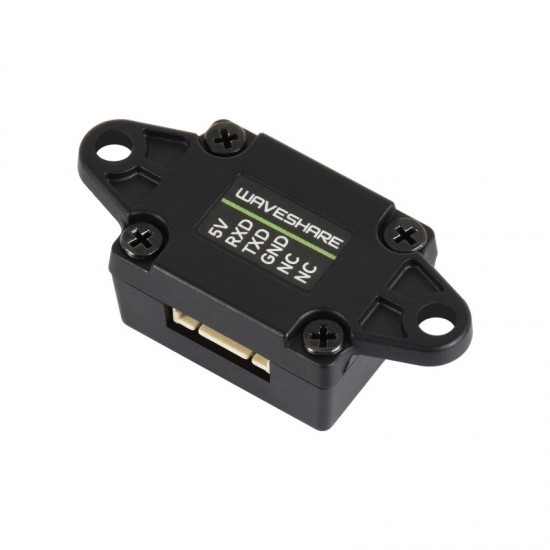

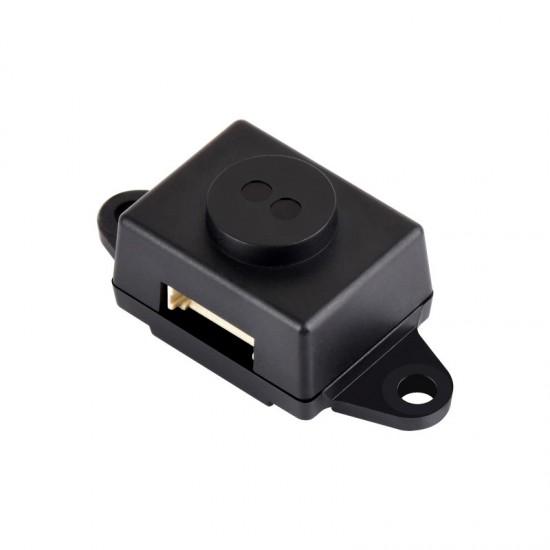

TOF (time of flight) Laser Range Sensor, Based On D-TOF Single-Point Laser Sensor, UART Communication Support

The TOF (Time-of-Flight) Laser Range Sensor is a high-precision distance measurement module based on advanced D-TOF (Direct Time-of-Flight) single-point laser sensing technology. It determines distance by measuring the time taken for a laser pulse to travel to an object and reflect back to the sensor, ensuring accurate and reliable measurements even in varying ambient light conditions.

Designed for seamless integration, this sensor supports UART communication, enabling easy interfacing with microcontrollers, embedded systems, and development platforms. Its compact design, fast response time, and high measurement accuracy make it ideal for applications such as obstacle detection, robotics, industrial automation, smart devices, and distance monitoring systems.

With stable performance, low power consumption, and strong anti-interference capability, this TOF laser range sensor is a dependable solution for both prototyping and industrial-grade applications.

User Manual / Datasheet / Example Codes Etc.

Features

Based on advanced D-TOF (Direct Time-of-Flight) single-point laser sensing technology
High-precision distance measurement with fast response time
Supports UART communication for easy integration with microcontrollers and embedded systems
Strong anti-interference performance, works reliably in various lighting conditions
Compact size and lightweight design for space-constrained applications
Low power consumption, suitable for battery-powered devices
Stable and consistent measurement performance
Long measurement range with high accuracy
Easy to use with simple command interface
Suitable for applications like robotics, obstacle avoidance, industrial automation, and smart devices

Specifications

Typical measuring range: 0.02m ~ 20m
Typical measuring accuracy: <1m@±20mm, >1m@±2%
Field of view (FOV) 3°±0.5°
Refresh rate: 30Hz
Ambient light tolerance: 100K Lux
Operating temperature: -20°C ~ +70°C
Operating humidity: 35% ~ 80%RH
Laser Safety Class: LASER CLASS 1
Wavelength: 940nm
Communication interface: UART
Baud rate: 115.2Kbps
Power supply: 4V ~ 5.6V
Communication Level: 3.3V
Power consumption: 170mW (UART active output, 5.0V power supply, 34mA current)
Weight: 3.6g
Case Material: PC
Storage temperature: -40℃ ~+80℃
Dimensions: 35.5 x 16.5 x 13.5 (mm) (L × W × H)

Package Includes

TOF MINIF Range Sensor x1
SH1.25 4PIN cable 100mm x1

Hardware connection

connecting with Raspberry Pi board

Dimensions
