Waveshare TOF (time of flight) Laser Range Sensor, Based On D-TOF Single-Point Laser Sensor, UART Communication Support - 0.02m ~ 20m Measurement Range

The Waveshare TOF (Time of Flight) Laser Range Sensor is a high-precision distance measurement module based on an advanced D-TOF (Direct Time-of-Flight) single-point laser sensor. Designed for reliable and accurate non-contact ranging, it offers a measurement range of 0.02m to 20m with stable performance in industrial automation, robotics, obstacle detection, drone navigation, AGV/AMR systems, smart devices, and IoT applications.

Featuring a UART communication interface, the sensor integrates easily with popular microcontrollers such as Arduino, ESP32, STM32, Raspberry Pi, and other embedded platforms. Its compact design, fast response time, and high measurement accuracy make it suitable for both indoor and outdoor distance sensing applications.

User Manual / Datasheet / Example Codes Etc.

Features

Based on advanced D-TOF (Direct Time-of-Flight) single-point laser technology
Wide measurement range from 0.02m to 20m
High accuracy and stable long-distance ranging
UART communication for simple integration
Fast response with real-time distance measurement
Compact and lightweight design
Low power consumption for embedded applications
Supports integration with Arduino, ESP32, STM32, Raspberry Pi, and other MCU platforms
Suitable for obstacle avoidance, robotics, drones, AGVs, industrial automation, and smart devices

Specifications

Module: TOF MINIF Range Sensor (B)
Typical measuring range: 0.02m ~ 5m
Typical measuring accuracy: ± (1% ~ 3%)
Field of view (FOV): 3°±0.5°
Refresh rate: 30Hz
Ambient light tolerance: 100K Lux
Operating temperature: -20°C ~ +70°C
Operating humidity: 35% ~ 80%RH
Laser Safety Class: LASER CLASS 1
Wavelength: 940nm
Communication interface: UART
Baud rate: 115.2Kbps
Power supply: 4V ~ 5.6V
Communication Level: 3.3V
Power consumption: 100mW ~ 140mW
Weight: 3.6g
Case Material: PC
Storage temperature: -40℃ ~+80℃
Dimensions: 35.5 × 16.2 × 13.5 (mm)

Package Includes

1x MX1.25 4PIN cable 100mm

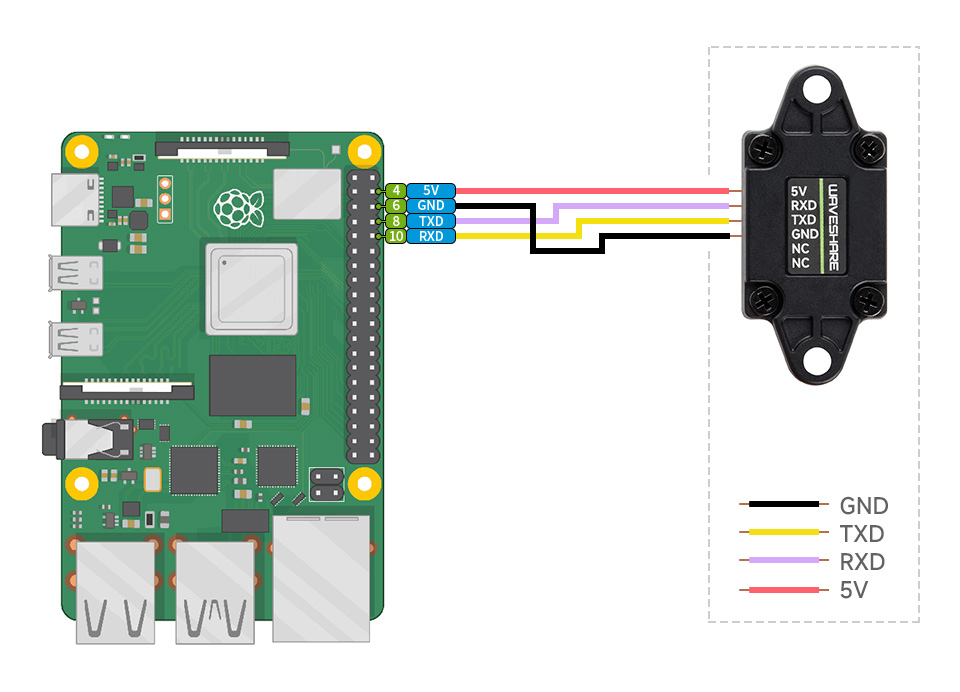

Hardware connection

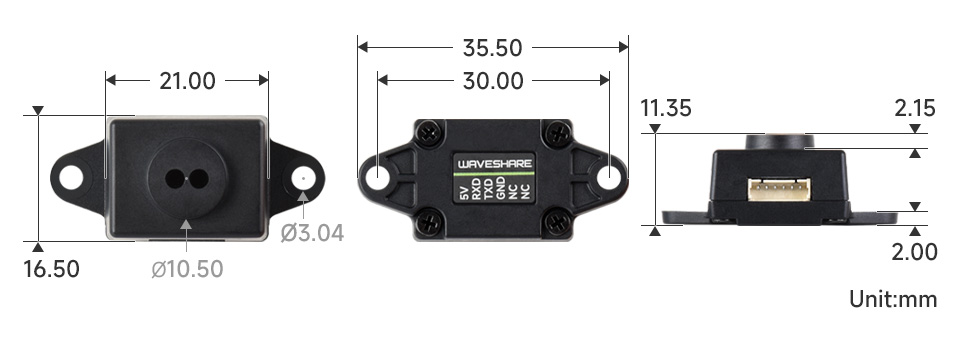

Dimensions
