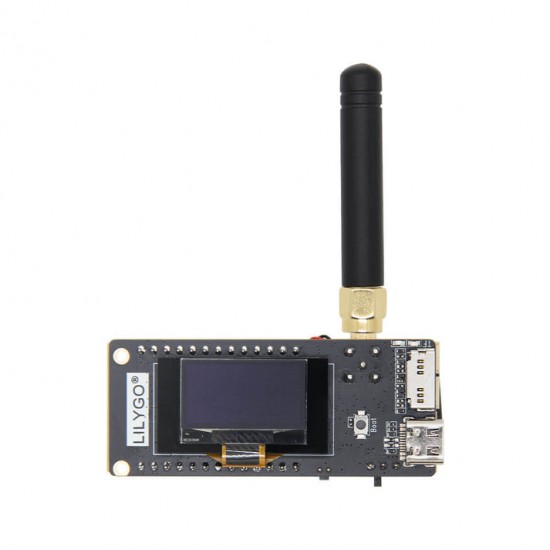

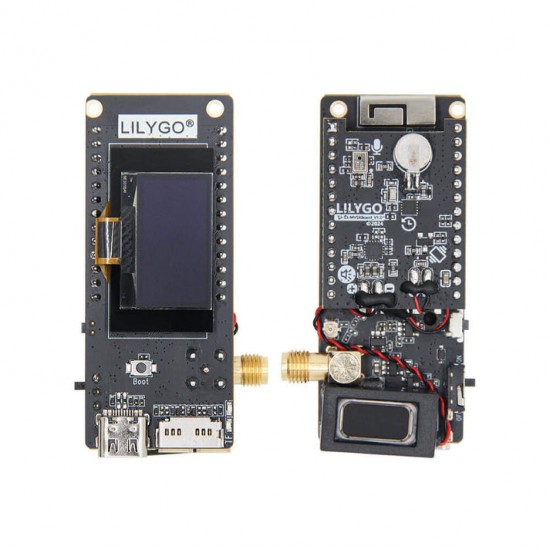

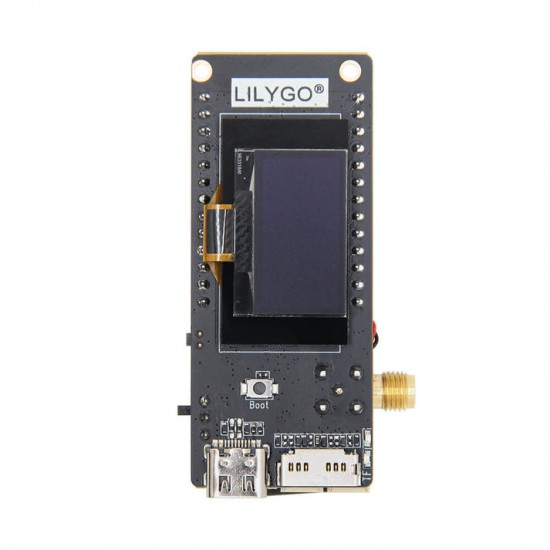

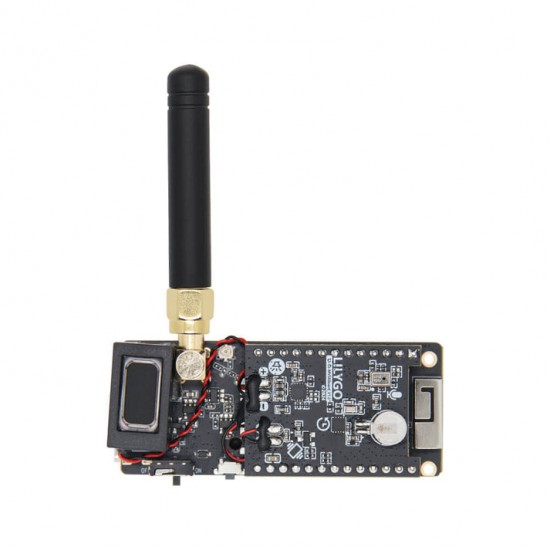

LILYGO T3-S3 MVSR 868MHz LoRa voice communication kit (Speaker + MIC + Motor) - H595-01

LILYGO T3-S3 MVSR 868MHz LoRa voice communication kit (Speaker + MIC + Motor) - H595-01
LILYGO T3-S3 MVSR 868MHz LoRa voice communication kit (Speaker + MIC + Motor) - H595-01
LILYGO T3-S3 MVSR 868MHz LoRa voice communication kit (Speaker + MIC + Motor) - H595-01
LILYGO T3-S3 MVSR 868MHz LoRa voice communication kit (Speaker + MIC + Motor) - H595-01
LILYGO T3-S3 MVSR 868MHz LoRa voice communication kit (Speaker + MIC + Motor) - H595-01
New
LILYGO T3-S3 MVSR 868MHz LoRa voice communication kit (Speaker + MIC + Motor) - H595-01
LILYGO T3-S3 MVSR 868MHz LoRa voice communication kit (Speaker + MIC + Motor) - H595-01
LILYGO T3-S3 MVSR 868MHz LoRa voice communication kit (Speaker + MIC + Motor) - H595-01
LILYGO T3-S3 MVSR 868MHz LoRa voice communication kit (Speaker + MIC + Motor) - H595-01
LILYGO T3-S3 MVSR 868MHz LoRa voice communication kit (Speaker + MIC + Motor) - H595-01
TTGO
LILYGO T3-S3 MVSR 868MHz LoRa voice communication kit (Speaker + MIC + Motor) - H595-01

This product qualifies for Free Surface Shipping !

All orders with value above 1999+GST are eligible for free delivery in Surface mode. (Not applicable for B2B offline orders)
Based on 0 reviews. - Write a review
₹​3,859.00
₹​3,270.34 + 18% GST
All Inclusive, Shipping Calculated at Checkout
Assured Cashback of ₹ 33
B2B GST Credit Available
Price in reward points: 3270
Buy Now NOTIFY WHEN AVAILABLE
Plan to Buy Later ? Add to Wish List

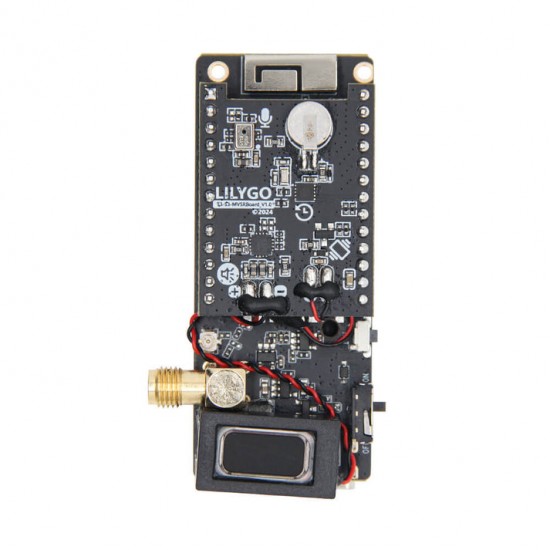

The T3-S3-MVSRBoard is the backplate design for the T3-S3_V1.2 motherboard, featuring onboard speaker and microphone expansion with extremely low static current. Additionally, it includes vibration and RTC (Real-Time Clock) functions.


Resources

User Manual / Datasheet / Example Codes Etc.

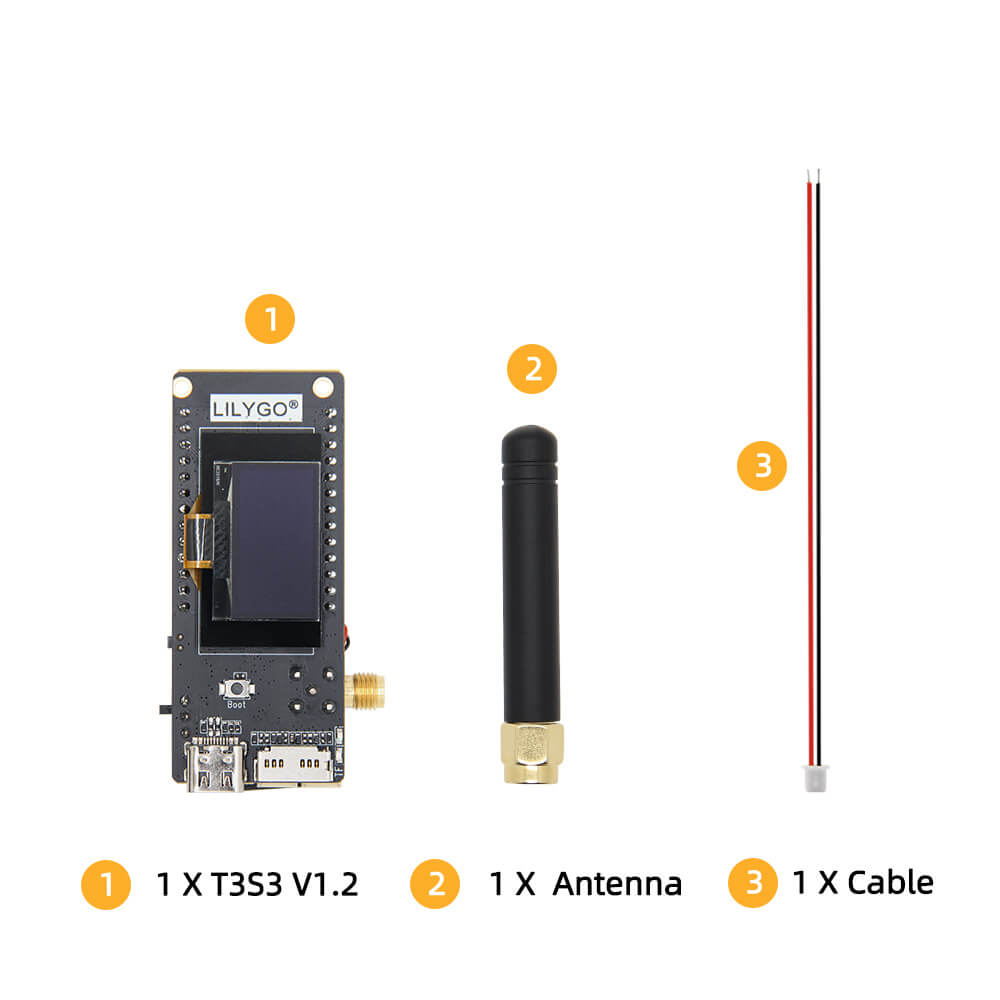

Package Includes



Specifications

MCUESP32S3FH4R2
Flash4MB
PSRAM2MB
Wireless protocol2.4Ghz Wi-Fi + Bluetooth 5.0
Onboard functionsReset + Boot Button, Support TF Card
Size66 x 15 x 27mm
USB Charging 5V 500mA

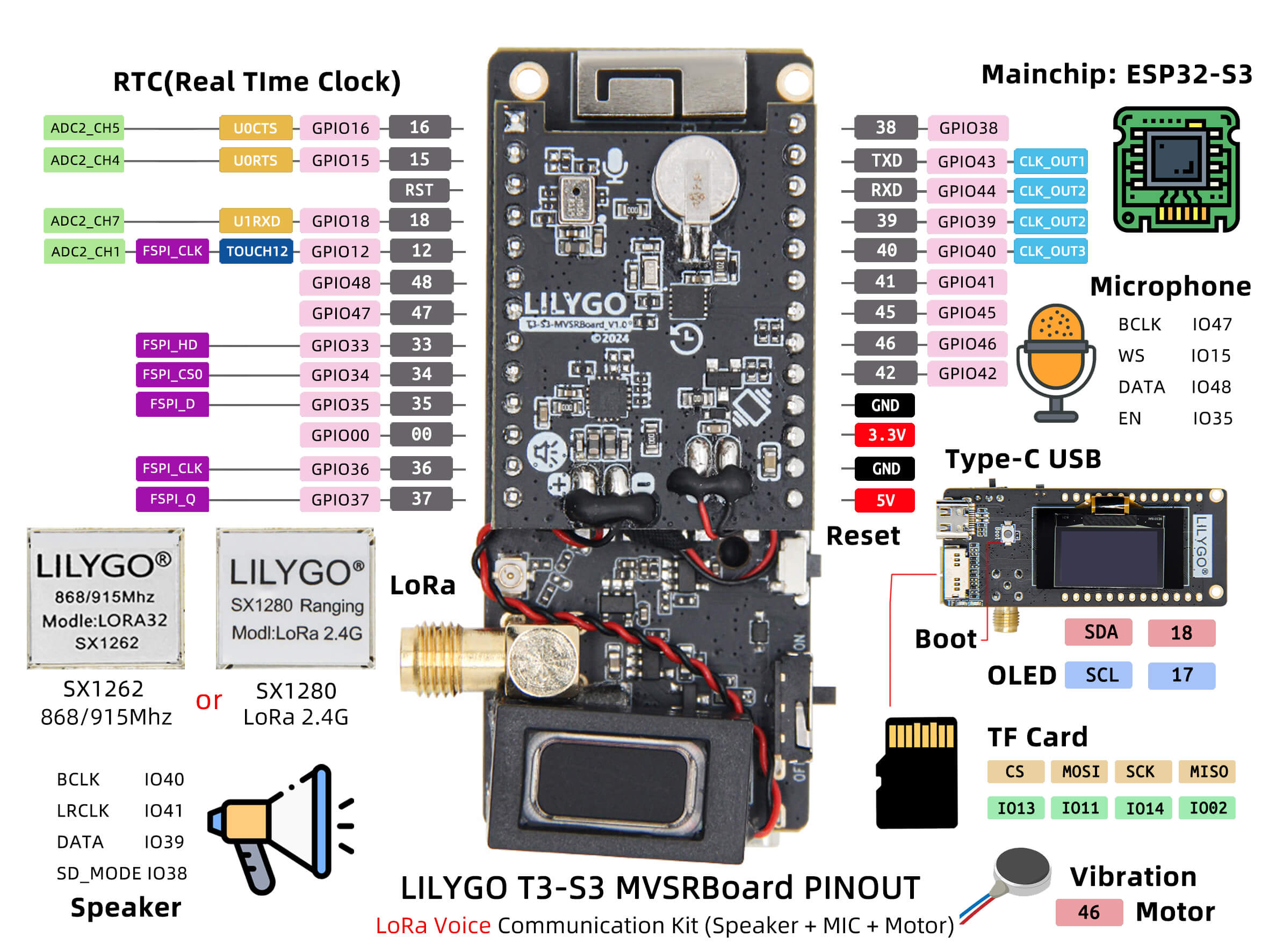

Pinouts



Dimensions
