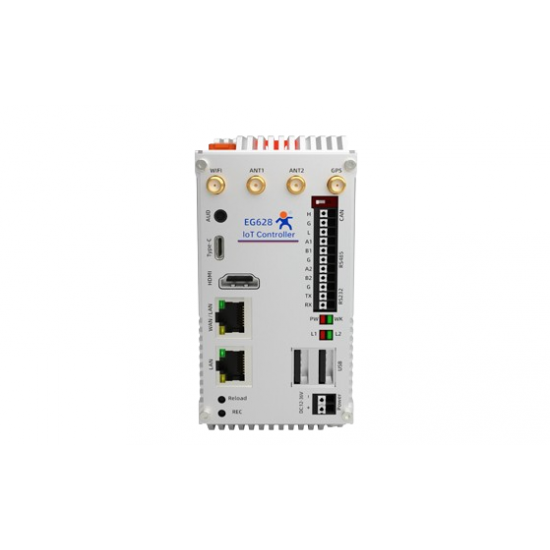

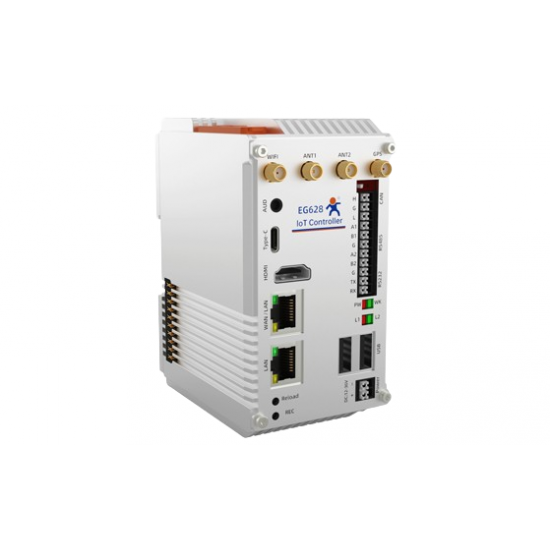

The USR-EG628 is an Industrial PC Mini-computer with a 2.0 GHz quad-core 64-bit ARM CPU. It runs on Linux Ubuntu and built- in WukongEdge, supports 4G, Wi-Fi, Ethernet. It has USB, HDMI, RS485, CAN interfaces and supports IO expansion.
Resources
User Manual / Datasheet / Example Codes Etc

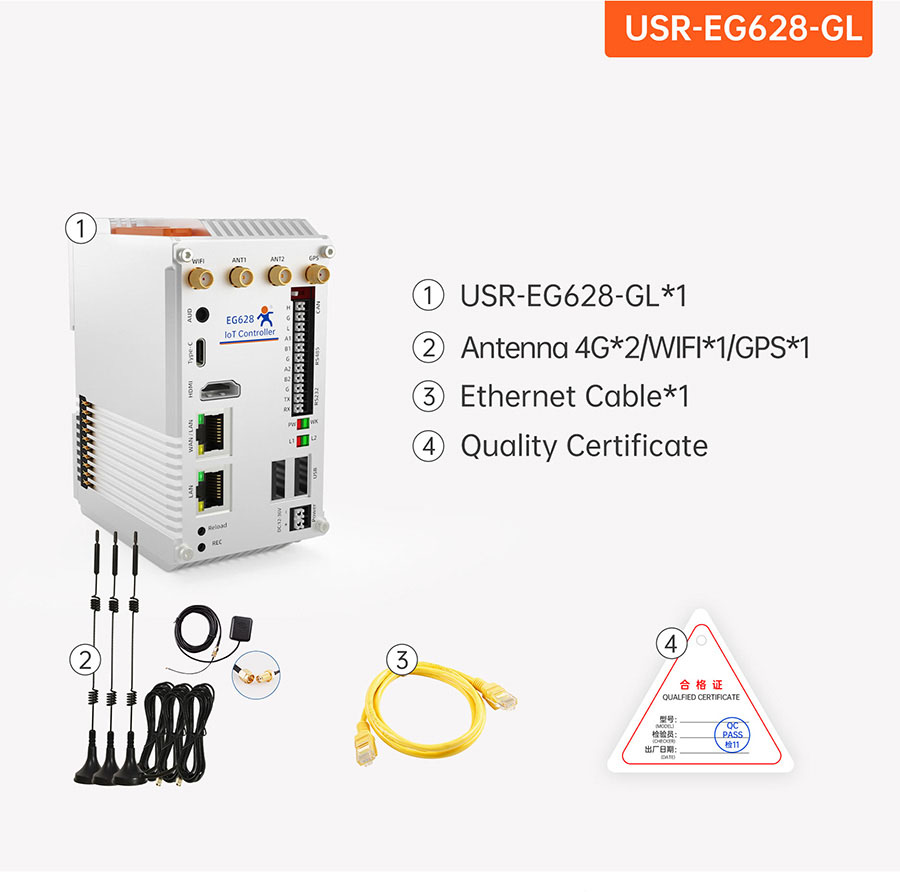

Package Contents
Specifications
Hardware Parameters | |
Processor CPU | Rockchip RK3562J ARM quad-core 64-bit processor,clocked up to 2.0GHz |
Graphics Processor GPU | ARM G52 2EE GPU Support OpenGLES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1, embedded high-performance2D acceleration hardware |
Neural,Network Processing NPU | Built-in neural network processorNPU,1.0TOPS@INT8 performance SupportCaffe/Mxnet/TensorFlow/TFLite/ONNX/Darknet models. |
Operating system | Linux Ubuntu 20.04 |
Memory | DDR44GB |
Storage | eMMC32GB |
SDMemory | Support SD card storage, up to 128G |
Network | Two Ethernet interfaces, one gigabit and one hundred megabit |
Dual-band WiFi IEEE 802.11a/b/g/n/ac/ax 2.4 GHz：2.400~2.4835 GHZ 5 GHz：5.150~5.850 GHZ | |
Support for 4G functionality | |
GPS | Built-in GPS/BD module,Sensitivity:-162dBm Receiving frequency:1575.42MHz ; Satellite channel:20 channelPositioning accuracy: <10m(GL version support, other versions support customization) |
SIM | Nano SIM card holderfor cellular networking (-GL): Dual SIM Single Standby, Dual External Card. (-G4):Dual card single standby, SIM1 is external card, SIM2 is built-in card |
Display interface | 1* HDMI OUT 2.0 supports 4K60fps output |
Audio | 1*Headset output |
RTC | Built-in real-time clock power supply battery, support timing switch on and off |
USB | 2*USB2.0 HOST 1*USB3.0 OTG(compatible upgrade, default HOSTfunction, Type-C interface) |
LED | 1*Power status LED(red), 1 *Operating status LED(green,flashing by default) L1 and L2 are custom indicators |
Key | 1*Upgrade key (used when upgrading firmware) 1* Factory restore button (Edge application parameters factory restore use) |
Serial port | 1*RS232 ,2*RS485 |
CAN | 1*CAN |

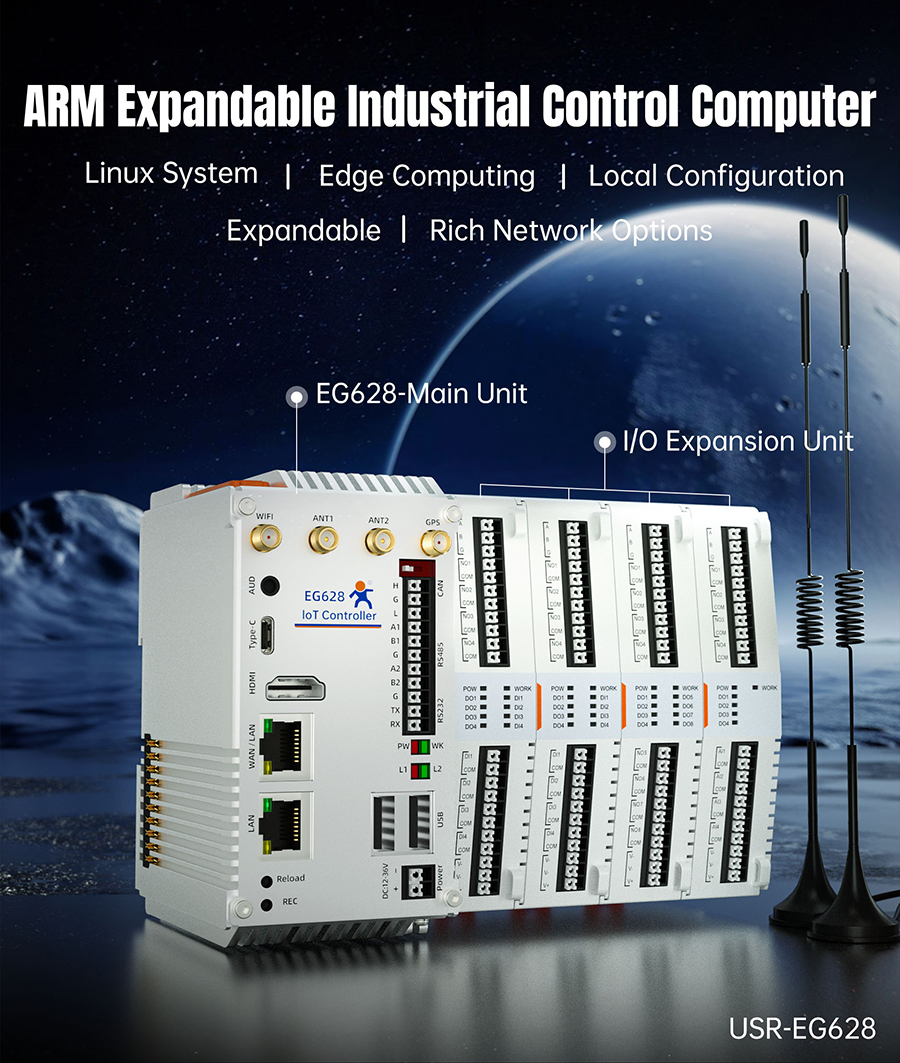

IO port | expandable |
Mains input | 9-36V wide voltage supply |
Operating temperature | -20 -70°C |
Storage temperature | -20 - 80 °C |
Operating humidity | 5%-95% |
Multimedia | Support 4K 60fpsH.265/H.264 video decoding Support 1080P 100fps H.265/H.264 video encoding Support 8M ISP, support HDR |
Language support | English by default, downloadable in other languages |
Input method | Standard Android keyboard with optional third-party input methods (Chinese, Korean, Japanese, etc.) |
SoftwareParameters | |
Edge computing | 2000+ points, support edge acquisition, calculation, active reporting and other edge functions |
Protocol conversion | Supports Modbus, OPC UA, JSON, IEC104, IEC61850, Bacnet, etc. |
Acquisition protocol | Multiple PLC protocols, IEC104, IEC61850, Bacnet, DL/T645, etc. |
Configuration | Support configuration local editing, local display |
PLC | Comply with IEC61131-3 standard, support 5 PLC programming languages |
Secondary development | Standard Linux Ubuntu system, support C/C++ development, built-in new version Node-Red, Docker and other applications can be installed |

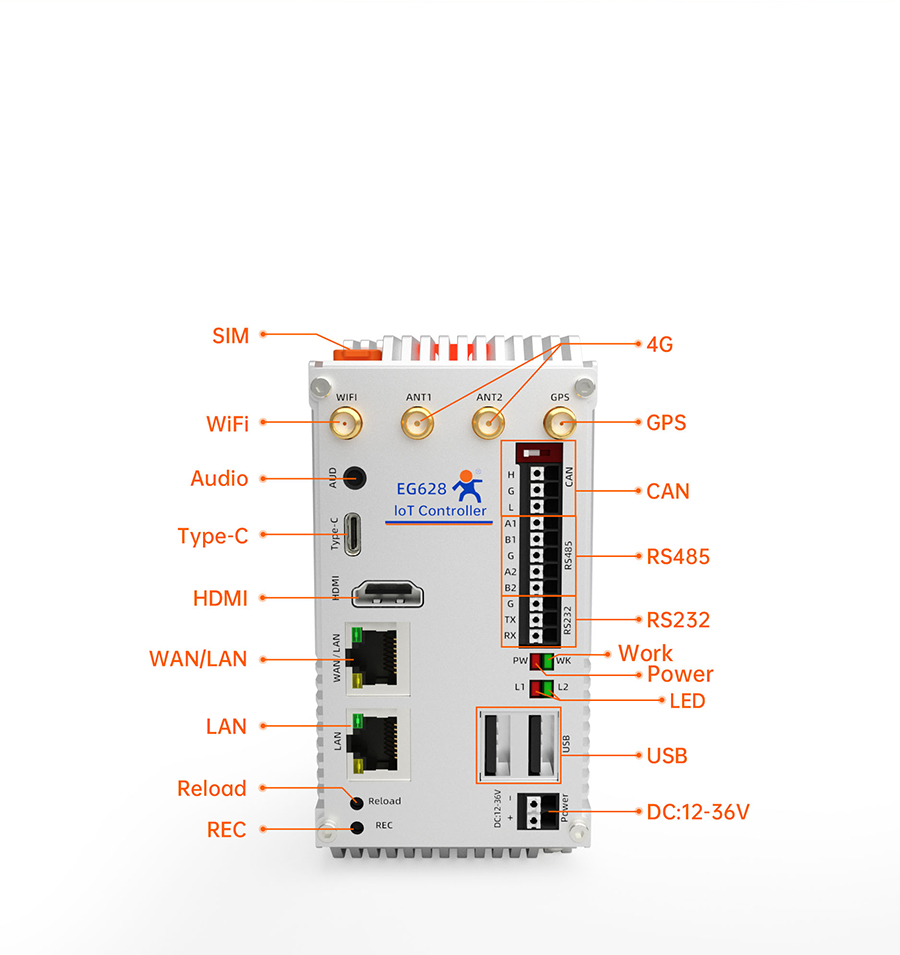

Peripherals

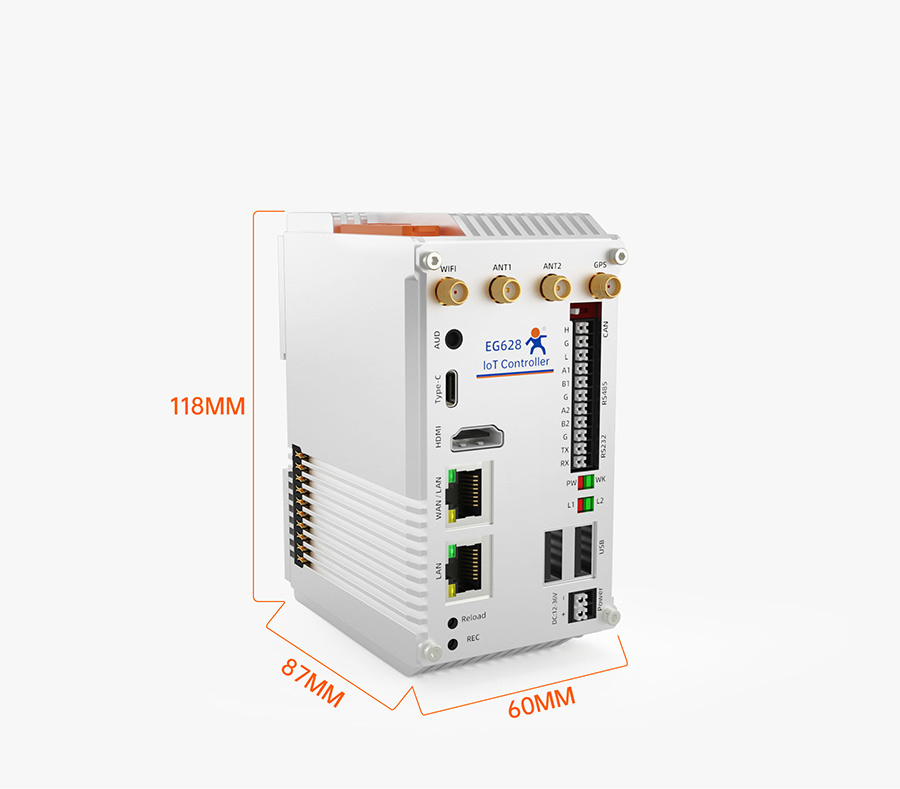

Dimensions
