New
USR IoT
₹43,499.15 + 18% GST
B2B GST Credit Available

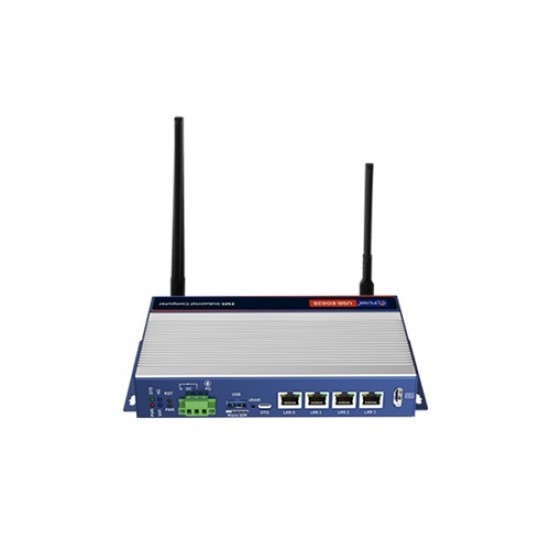

USR-EG828-EMS Industrial IoT Gateway | Rockchip RK3568 Quad-Core | 4GB Ram + 32 eMMC - WiFi6 | BT5.0 4G LTE | CAN | RS485 | Ethernet
This product qualifies for Free Surface Shipping !
All orders with value above 1999+GST are eligible for free delivery in Surface mode. (Not applicable for B2B offline orders)
₹51,329.00
All Inclusive, Shipping Calculated at Checkout
Assured Cashback of ₹ 434
B2B GST Credit Available
Price in reward points: 43499
- Stock: 0 in Stock
- SKU: 08916
- Delivery Time
- Bulk & B2B RFQ
USR-EG828-EMS Industrial IoT Gateway | Rockchip RK3568 Quad-Core | 4GB Ram + 32 eMMC - WiFi6 | BT5.0 4G LTE | CAN | RS485 | Ethernet
The USR-EG828-EMS gateway adopts Rockchip RK3568 quad-core processor and integrates multiple industrial-grade communication interfaces, including 8 isolated RS485 channels, 16 isolated GPIO channels, 6 relay control channels, 2 CAN buses, etc., and supports 4G wireless communication. The equipment is equipped with a wide voltage input range (12-48V DC), suitable for harsh industrial environments. Meanwhile, it provides dual-band WiFi6 and Gigabit Ethernet to meet diverse network requirements
Features
- Embedded Node-RED graphical design makes development simpler and faster, and more protocol libraries can be loaded for rapid programming.
- Built-in WukongEdge edge application service makes usage more convenient and efficient.
- Powerful edge gateway function, supporting edge collection, edge computing, and group reporting,
- capable of collecting 2000 real-time points and supporting point expansion.
- Rich collection protocols, supporting standard Modbus and various mainstream PLC protocols, as well as
- collection of various industry protocols.
- Interlinked control, supporting multi-point interlinkage, interlinked SMS alarm, interlinked platform alarm,
- interlinked point control, and interlinked DO control.
- Multiple protocol conversion, integrating Modbus, OPC UA, 104/61850 power protocols, building protocols
- and other multiple protocol conversions
- CPU: Rockchip RK3568, quad-core Cortex-A55 architecture, up to 2.0GHz
- GPU: Mali-G52 2EE, support OpenGL ES 1.1/2.0/3.2, OpenCL 2.0
- NPU: 1 TOPS AI power, supports TensorFlow, PyTorch and other AI frameworks.
Specifications
- Size: 217*126.7*35mm (with hanging ears)
- CPU: Rockchip RK3568, quad-core Cortex-A55, 2.0GHz
- GPU: Mali-G52 2EE
- NPU: 1Tops
- DDR: Standard 4GB LPDDR4, 8GB Optional
- Flash: Standard 32GB, up to 256GB
- HDMI: 1, supports up to 4K output
- USB Host: 1 USB3.0
- USB OTG: 1 Type-C
- Ethernet: 4, 10/100/1000M adaptive Ethernet
- WiFi Frequency: 2.4G & 5G dual frequency
- WiFi/BT: WiFi6, BT5.0
- WiFi ANT: 1
- 4G ANT: 1 (Optional)
- 4G Network: Built-in PCIE 4G interface
- SIM Slot: 1 way Micro-SIM Slot
- UART: 8-way isolated RS485(6 RS485 and 2 RS232 optional)
- Digital Input (Isolate I/O): 16-channel isolated IO signal input
- Digital Output (Relay): 6-way isolated relay interface
- CAN Bus: 2-way isolated CAN interface
- Analog Input: 4-channel isolated ADC input voltage signal
- Hardware Keys: UBOOT, RESET, POWER
- LED lamp: Operation, power, WiFi, 4G indicator lights
- RTC Real Time Clock: Support
- Timer Switch: Support
- Power Output: 2 isolated 12V regulated outputs provide FG terminals to connect to ground lines
- System Upgrade: Support local USB upgrade
- Humidity: 0%~95% (no condensation)
- Working Temp: -20°C ~ 70°C
- Power Input: 12~48V wide voltage supply, providing FG terminal to connect to earth line (typical voltage 12V)
Package Includes
- 1x USR-EG828-EMS Industrial IoT Gateway | Rockchip RK3568 Quad-Core | 4GB Ram + 32 eMMC - WiFi6 | BT5.0 4G LTE | CAN | RS485 | Ethernet
