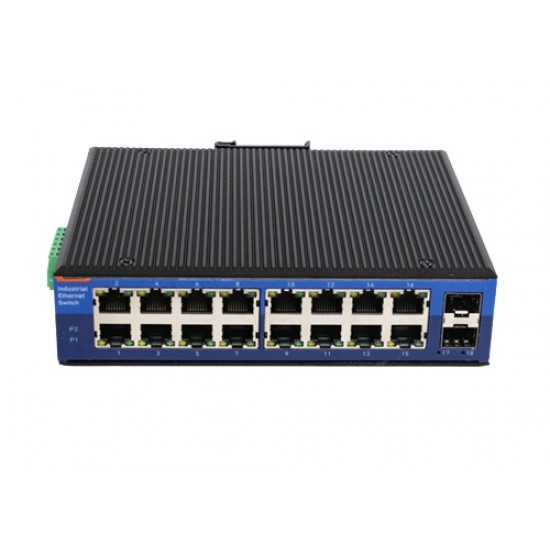

USR-ISG016 Industrial Grade 16-Port Gigabit Ethernet Switch - Unmanaged - DC 12-52V

The USR-ISG016 is an industrial-grade 16-port Gigabit Ethernet switch designed for reliable and stable network connectivity in industrial and commercial environments. Featuring 16 × Gigabit Ethernet ports, it provides high-speed data transmission for connecting multiple Ethernet-enabled devices without requiring network configuration.

With a wide DC 12–52V power input, the switch is suitable for industrial automation systems, surveillance networks, smart manufacturing, control systems, and other applications where flexible power compatibility and dependable Ethernet communication are required. Its unmanaged design enables simple plug-and-play installation with minimal setup.

Datasheet

Features

Supports 12-52V wide voltage input, with reverse polarity protection,Overload Protection.
10/100/1000M Base-T(X) Adaptive Port Support Full/Half Duplex, MDI/MDIX Auto Connection Compliant with EMC industry level 3 standards
-40°C ~85°C Operating Temperature
MTBF is over 300000 hours
Strong metal cabinet with corrosion-proof coating
Redundant power and wide voltage input ensure stable communications in severe environments Plug and play, enables fast deployment

Specifications

Model: USR-ISG016
Port numbers: 16
Protocol Standard

IEEE 802.3 for 10Base-T
IEEE 802.3i for 10Base-T
IEEE 802.3u for 100Base-TX and 100BaseFX
IEEE 802.3z for 1000Base-X
IEEE 802.3ab for 1000Base-T
IEEE 802.3x for Flow Control
IEEE 802.3af for PoE
IEEE 802.3at for PoE+

Interface: Gigabit copper port: 10/100/1000Base-T(X), RJ45, Automatic FlowControl, Full/HalfDuplex Mode, MDI/MDI-X Autotunning
MAC address table: 8K
Backplane bandwidth: 56Gbps
Switch Latency: <10μs
Forwarding Rate: 23.80Mpps
Packet Cache: 4Mb
Transfer Distance: Twisted cable: 80M (standard CAT5e/CAT6 cable)
Power supply: DC12-52V
Interface Terminal: 6-pin pluggable screw terminal block
Power Consumption: <15W
Dimension: 191x144x46mm
Weight: 0.9kg
Installation: Standard 35mm DIN-rail Mounting
Shell: IP40 protection, metal
Operating temperature: -40°C~85°C
Storage temperature: -40°C~85°C
