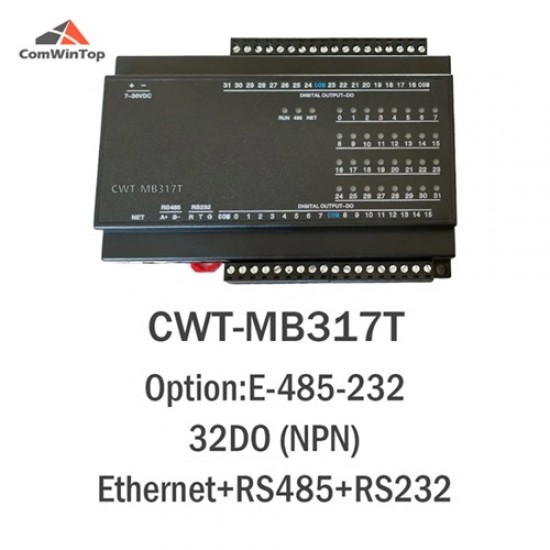

ComWinTop WT-MB317T 32-Channel Digital Output Industrial Modbus Digital Output Controller - Ethernet + RS485 + RS232 Interfaces
The ComWinTop WT-MB317T is a high-performance industrial 32-channel digital output controller designed for reliable remote output control and industrial automation applications. Supporting Ethernet, RS485, and RS232 communication interfaces, this controller enables seamless integration with PLCs, SCADA systems, HMI panels, industrial PCs, and IoT platforms using the Modbus RTU, Modbus TCP, and Modbus UDP protocols.
Built with 32 NPN transistor output channels, the WT-MB317T provides stable and isolated switching control for relays, indicators, solenoid valves, industrial actuators, and automation equipment. Its rugged industrial-grade design includes optocoupler isolation, surge protection, watchdog monitoring, and wide DC input support, making it suitable for demanding environments.
Features
- 32-channel digital output controller (NPN transistor output)
- Ethernet + RS485 + RS232 communication interfaces
- Supports Modbus RTU, Modbus TCP, and Modbus UDP
- Optocoupler isolation for improved signal stability
- Wide operating voltage and industrial protection design
- Supports remote monitoring and output control
- DIN rail and screw mounting installation
- Suitable for industrial automation and IoT applications
- Built-in watchdog and communication protection mechanisms
Specifications
- Digital Output Channels: 32 Channels
- Output Type: NPN Transistor Output
- Output Isolation: Optocoupler Isolation
- Load Voltage: 5–30V DC
- Load Current: 100mA per channel
- Communication Interfaces: Ethernet + RS485 + RS232
- Serial Communication Protocol: Modbus RTU
- Ethernet Protocols: Modbus TCP, Modbus UDP
- Ethernet Port: RJ45
- Ethernet Bandwidth: 10M / 100Mbps
- Communication Speed: Up to 1000 times/sec
- Default Ethernet IP: 192.168.1.75
- Default TCP Port: 502
- RS485 / RS232 Baud Rate: 1200–115200 bps
- Default Serial Setting: 9600, N, 8, 1
- Parity Options: None / Even / Odd
- Data Bits: 8-bit
- Stop Bits: 1 or 2
- Processor: 32-bit ATMEL ARM, 72MHz
- Operating System: GCOS, 10ms Scheduling Mechanism
- Power Supply: 7–35V DC @ 2W
- Protection Features: Reverse polarity protection, DCDC isolation, ESD, overvoltage, overcurrent, 2500V lightning protection
- Operating Temperature: -40°C to +85°C
- Operating Humidity: 5%–95% RH (Non-condensing)
- Protection Rating: IP20
- Watchdog Function: 1.5m Guard
- Mounting Method: DIN Rail Mounting / Screw Fixing
Applications
- Industrial automation systems
- PLC and SCADA integration
- Remote relay and actuator control
- Factory equipment monitoring
- Process automation
- Smart manufacturing systems
- Building automation and control
- Data acquisition and industrial IoT gateways
Package Includes
- 1x ComWinTop WT-MB317T 32-Channel Digital Output Industrial Modbus Digital Output Controller - Ethernet + RS485 + RS232 Interfaces
