Waveshare ESP32-S3 2.8inch (No Touch) Round Display Development Board, 480×480, 32-bit LX7 Dual-core Processor, Supports WiFi & Bluetooth

Waveshare ESP32-S3 2.8inch (No Touch) Round Display Development Board, 480×480, 32-bit LX7 Dual-core Processor, Supports WiFi & Bluetooth

This product is a microcontroller development board with 2.4GHz WiFi and Bluetooth BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 2.8inch LCD screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications.

User Manual / Datasheet / Example Codes Etc.

Features

• Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
• Supports 2.4GHz Wi-Fi (802.81 b/g/n) and Bluetooth 5 (LE), with onboard antenna
• Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM
• Onboard 2.8inch LCD display, 480×480 resolution
• Supports touch control via I2C interface, with interrupt support (for touch version only)
• Adapting UART, I2C and some IO interfaces, integrates full-speed USB port
• Onboard QMI8658 6-axis sensor, RTC sensor, TF card slot and battery recharge management module, etc.
• Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios

Specifications

• Display Panel: IPS
• Resolution: 480 × 480
• Communication Interface: RGB
• Display Size: 2.8 inch
• Contrast Ratio: 1200:1
• Driver IC: ST7701

Package Includes

• ESP32-S3-LCD-2.8C x1
• SH1.0 12PIN cable ~100mm ×1
• SH1.0 4PIN cable ~100mm (2pcs) ×1

IPS Display Panel

Excellent display performance, 160° viewing angle

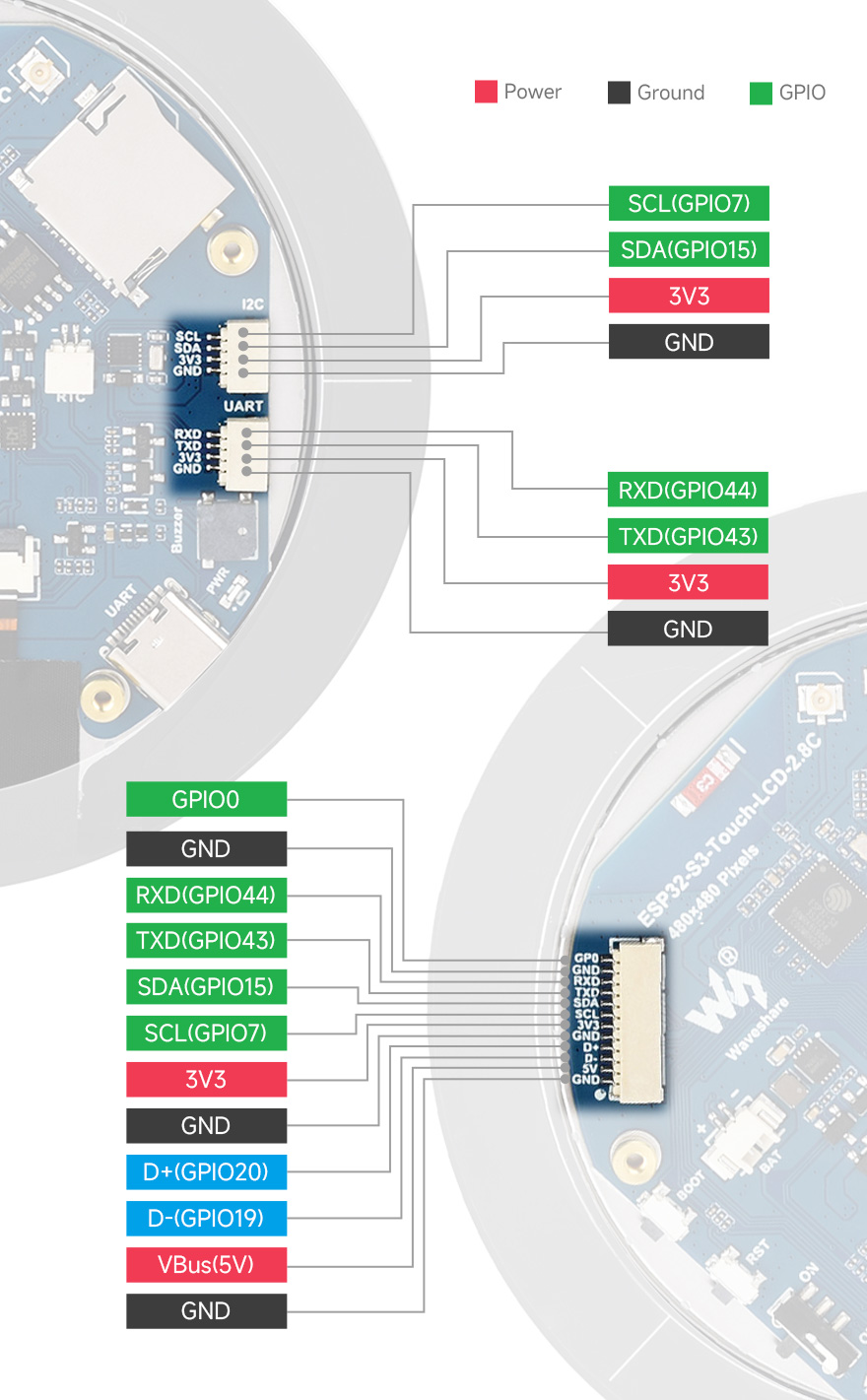

Supports multiple peripherals

Supports the expansion of multiple peripherals via GPIO, UART and I2C interfaces, etc.

What's On Board

Dimensions
