ESP32-C6 1.43inch AMOLED Round Touch Display Development Board, 160MHz RISC-V Processor, 466×466 Pixels, QSPI Interface, Onboard Dual Digital Microphone Array

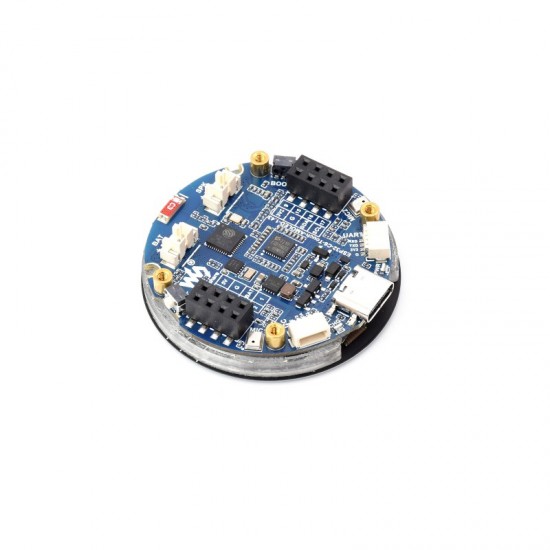

The ESP32-C6-Touch-AMOLED-1.43 is a high-performance, highly integrated MCU board designed by Waveshare, integrates high-capacity Flash. Onboard 1.43inch AMOLED capacitive touch display, highly integrated RTC chip, 6-axis IMU, TF card slot, low power audio encoding and decoding chips, dual MIC circuit, Lithium battery header, and so on. Reserved USB, UART, I2C, and GPIO interfaces for flexible expansion, which makes it easy for you to develop and integrate into the products quickly.

User Manual / Datsheet / Example Codes Etc.

Features

Equipped with ESP32-C6 high-performance 32-bit RISC-V processor with clock speed up to 160 MHz
Integrated WiFi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance
Built-in 512KB HP SRAM, 16KB LP SRAM, 320KB ROM and 16MB Flash memory
Onboard 1.43inch AMOLED capacitive touch display for clear color picture display, 466 × 466 resolution, 16.7M color
Built-in CO5300 display driver and FT6146 capacitive touch chip, using QSPI and I2C communication respectively, effectively saving the IO resources
Equipped with dual digital microphone array, supporting richer voice interaction functions, suitable for accurate speech recognition and near-field / far-field voice wake-up applications
Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc.
Onboard PCF85063 RTC chip for RTC functionality requirement
Onboard PWR and BOOT programmable buttons for easy custom function development
Onboard 3.7V MX1.25 Lithium battery recharge/discharge header
Onboard TF card slot for extended storage and fast data transfer, suitable for applications such as data recording and media playback, simplifying circuit design
Onboard UART and I2C SH1.0 4PIN connectors, reserved two 2 × 4PIN 2.54mm pitch headers
Adopts AMOLED screen, featuring advantages of high contrast, wide viewing angle, rich colors, fast response, thinner design, and low power consumption, etc.

Specifications

Display Size:1.43 inch
Display Panel: AMOLED
Resolution: 466 × 466 pixels
Display Colors: 16.7M
Brightness: 350 cd/㎡
Contrast Ratio: 60000:1
Communication Interface: QSPI
Driver IC: CO5300
Touch: Supported
Touch IC: FT6146

Package Includes

ESP32-C6-Touch-AMOLED-1.43 x1
1217 8Ω 2W cavity speaker ×1
SH1.0 4PIN cable ~100mm ×2

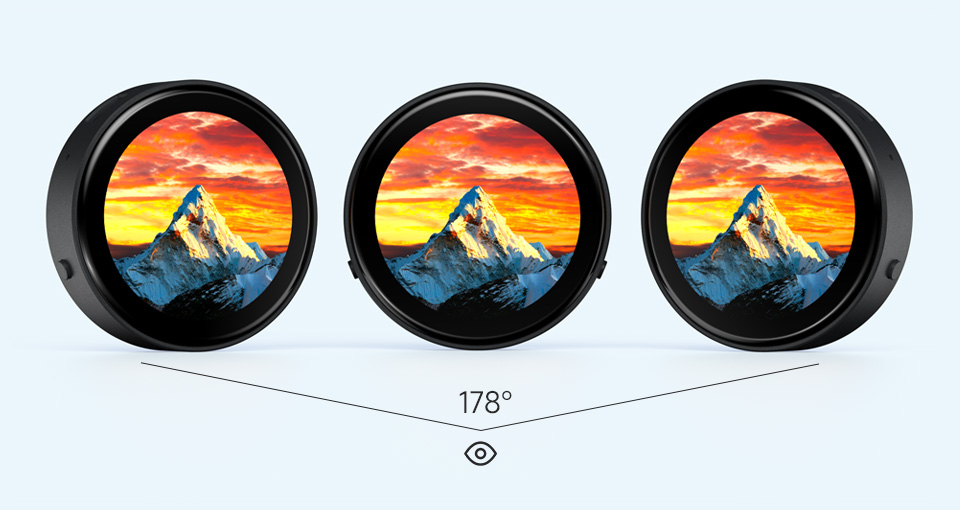

178° wide viewing angle

Excellent Display Performance, 16.7M color, wide viewing angle

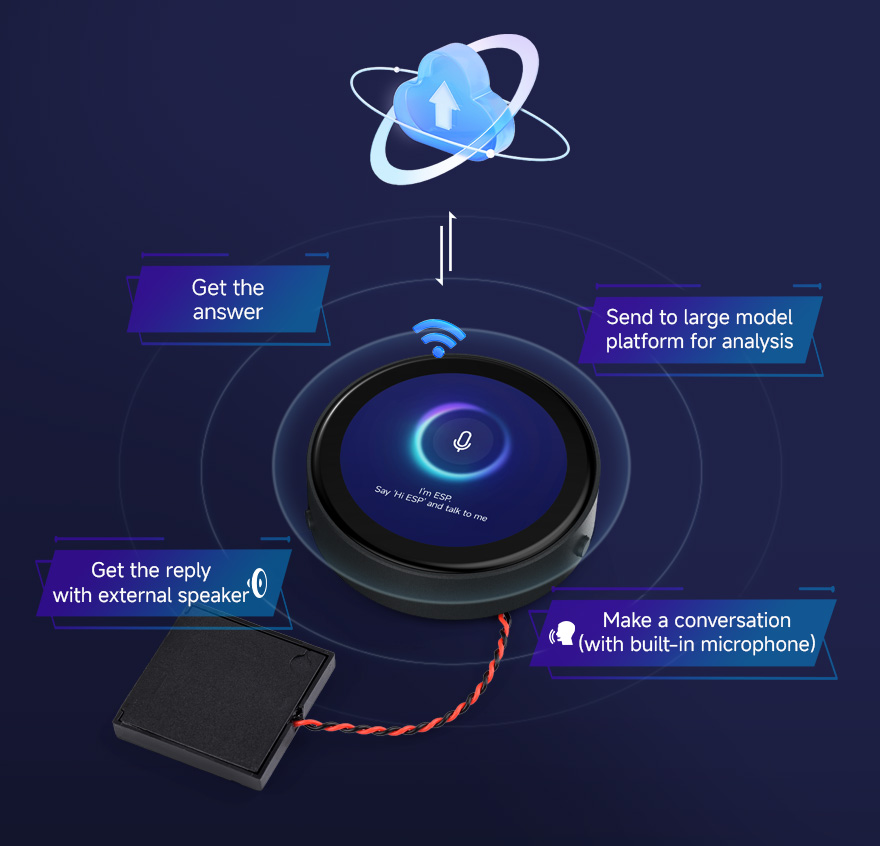

Supports AI Speech Interaction

Allows access to online large model platforms such as DeepSeek, Doubao, etc.

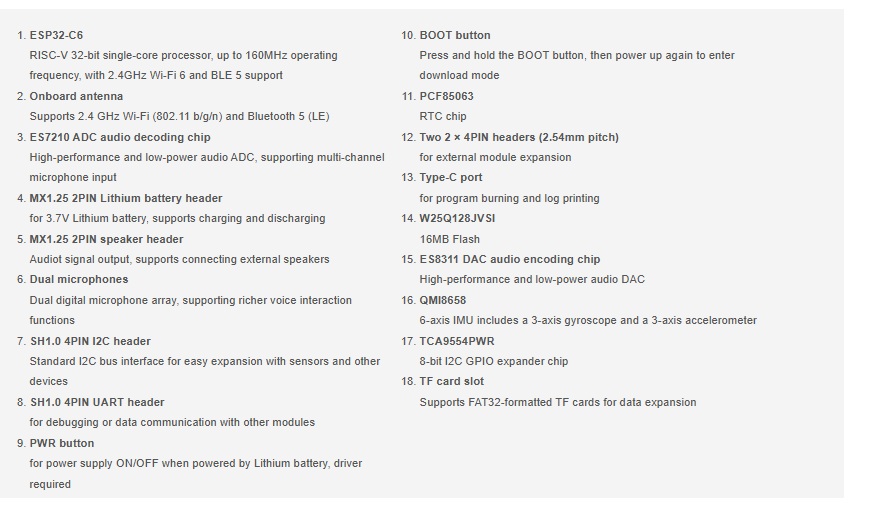

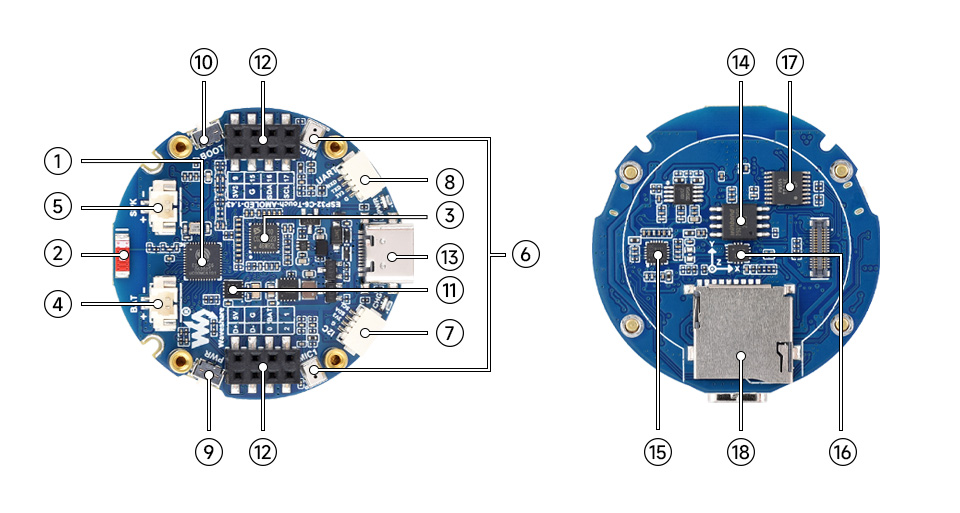

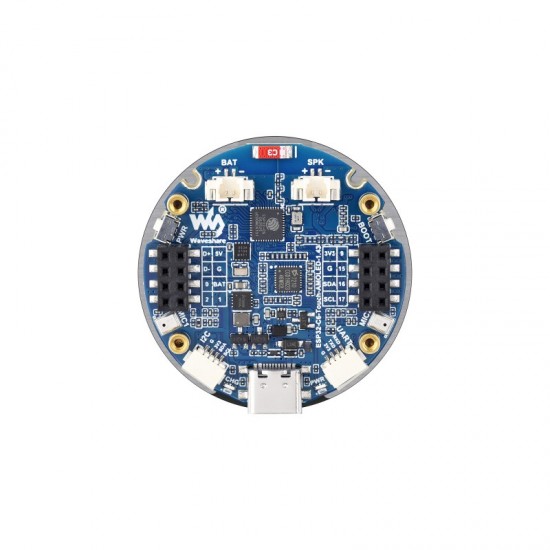

What's On Board

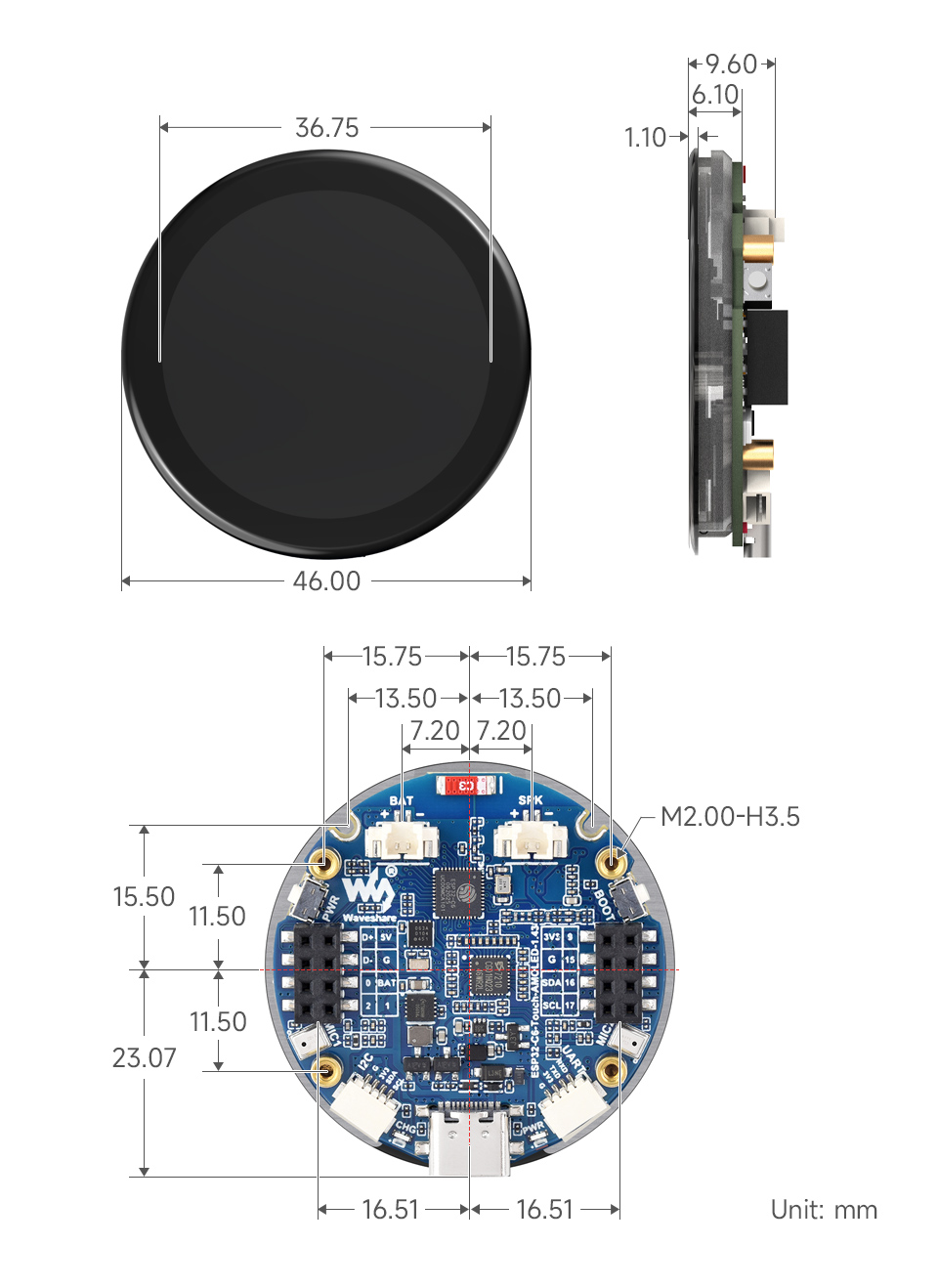

Dimensions
