ESP32-P4-WIFI6 4.3inch Development Board, 480 × 800 Resolution, 5-Point Touch, Onboard Audio Codec Chip, Supports Wi-Fi 6 And BLE 5, With OV5647 Camera
The ESP32-P4-WIFI6-Touch-LCD-4.3 is a high-performance development board based on ESP32-P4 controller with RISC-V 32-bit dual-core and single-core processors. Equipped with 4.3inch 480 × 800 resolution IPS touch display, features rich human-machine interfaces including MIPI-CSI (with integrated Image Signal Processor), it also supports USB OTG 2.0 HS for high-speed connectivity and features an onboard 40PIN GPIO expansion header, compatible with some Raspberry Pi HATs for broader application adaptability.
The ESP32-P4 chip integrates the Digital Signature Peripheral and a dedicated Key Management Unit, ensuring secure data and operations. Specifically designed for high-performance and high-security applications, to meet the higher requirements of embedded applications such as Human-Machine interaction, efficient edge computing, and IO expansion.
User Manual / Datasheet / Example Codes Etc.
Features
- High-performance MCU with RISC-V 32-bit dual-core and single-core processors
- Onboard ESP32-C6-MINI module serving as a Wi-Fi 6 co-processor, extending Wi-Fi 6 and BLE 5 capabilities for ESP32-P4
- 128KB HP ROM, 16KB LP ROM, 768KB HP L2MEM, 32KB LP Static RAM, 8KB TCM
- Powerful image and voice processing capability. Provides image and voice processing interfaces including JPEG Codec, Pixel Processing Accelerator, Image Signal Processor, H264 encoder
- 32MB PSRAM in the chip's package, with onboard 32MB Nor Flash
- Onboard Type-C ports, more convenient, better device compatibility
- Onboard 4.3inch capacitive touch IPS display for clear color picture display, 480 × 800 resolution
- Onboard 3.7V MX1.25 Lithium Batt recharge/discharge header
- Adapting I2C, UART, USB and multiple GPIOs for external device connection and debugging, enabling flexible peripheral configuration
- Onboard TF card slot for extended storage, high-speed data transfer, and enhanced flexibility, suitable for data logging and media playback, simplifying circuit design
- Onboard camera interface, supporting OV5647 and other MIPI-CSI cameras
- Security features: Secure Boot, Flash Encryption, cryptographic accelerators, and TRNG. Additionally, hardware access protection mechanisms help to enable Access Permission Management and Privilege Separation
Specifications
- DISPLAY PANEL: IPS
- Display Resolution: 480 × 800 resolution
- Brightness: 500cd/㎡
- Communication Interface: MIPI-DSI 2-lane
- Touch Type: Capacitive touch
- DISPLAY SIZE: 4.3inch
- Viewing angle: 160°
- Contrast Ratio: 1000:1
- Display Driver: ST7701
- Touch IC: GT911
- Camera Spec:
- Sensor: OV5647
- Pixel: 5MP
- Focal Length: 3.07mm
- Distortion: < 1.5%
- Image: static image resolution: 2592 × 1944 pixel
- Video Recording: 1920 × 1080p at 30 fps, 1280 × 720p at 60 fps 640 × 480p at 60 fps, 640 × 480p at 90 fps
- CMOS Size: 1/4inch
- Aperture: F2.4
- FOV: 72.9°
- DOF: 20cm ~ ∞
Package Includes
- ESP32-P4-WIFI6-Touch-LCD-4.3 host x1
- GH1.25 2PIN 8Ω 2W speaker 50mm x1
- OV5647 camera x1
IPS Display Panel
Excellent Display Performance With 160° Wide Viewing Angle

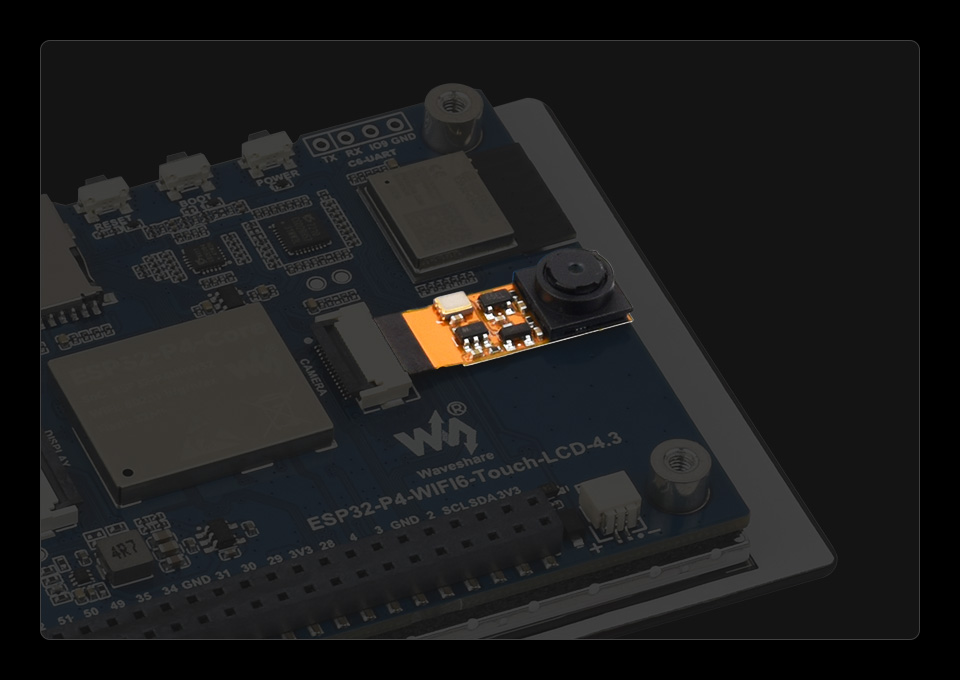

5MP OV5647 camera
Onboard MIPI CSI camera interface, optional for OV5647 camera, suitable for image capture, video surveillance, and other applications, meeting diverse requirements
What's On Board
Dimensions
