ESP32-P4-WIFI6 4.3inch Development Board, 480 × 800 Resolution, 5-Point Touch, Onboard Audio Codec Chip, Supports Wi-Fi 6 And BLE 5

The ESP32-P4-WIFI6-Touch-LCD-4.3 is a high-performance development board based on ESP32-P4 controller with RISC-V 32-bit dual-core and single-core processors. Equipped with 4.3inch 480 × 800 resolution IPS touch display, features rich human-machine interfaces including MIPI-CSI (with integrated Image Signal Processor), it also supports USB OTG 2.0 HS for high-speed connectivity and features an onboard 40PIN GPIO expansion header, compatible with some Raspberry Pi HATs for broader application adaptability.

The ESP32-P4 chip integrates the Digital Signature Peripheral and a dedicated Key Management Unit, ensuring secure data and operations. Specifically designed for high-performance and high-security applications, to meet the higher requirements of embedded applications such as Human-Machine interaction, efficient edge computing, and IO expansion.

User Manual / Datasheet / Example Codes Etc.

Features

High-performance MCU with RISC-V 32-bit dual-core and single-core processors
Onboard ESP32-C6-MINI module serving as a Wi-Fi 6 co-processor, extending Wi-Fi 6 and BLE 5 capabilities for ESP32-P4
128KB HP ROM, 16KB LP ROM, 768KB HP L2MEM, 32KB LP Static RAM, 8KB TCM
Powerful image and voice processing capability. Provides image and voice processing interfaces including JPEG Codec, Pixel Processing Accelerator, Image Signal Processor, H264 encoder
32MB PSRAM in the chip's package, with onboard 32MB Nor Flash

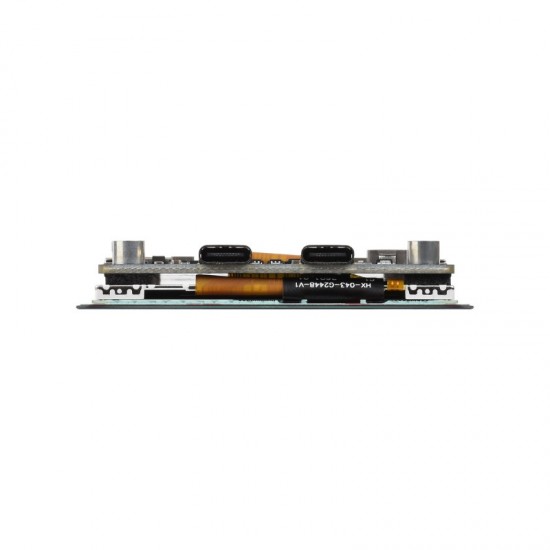

Onboard Type-C ports, more convenient, better device compatibility
Onboard 4.3inch capacitive touch IPS display for clear color picture display, 480 × 800 resolution
Onboard 3.7V MX1.25 Lithium Batt recharge/discharge header
Adapting I2C, UART, USB and multiple GPIOs for external device connection and debugging, enabling flexible peripheral configuration
Onboard TF card slot for extended storage, high-speed data transfer, and enhanced flexibility, suitable for data logging and media playback, simplifying circuit design
Onboard camera interface, supporting OV5647 and other MIPI-CSI cameras
Security features: Secure Boot, Flash Encryption, cryptographic accelerators, and TRNG. Additionally, hardware access protection mechanisms help to enable Access Permission Management and Privilege Separation

Specifications

DISPLAY PANEL: IPS
Display Resolution: 480 × 800 resolution
Brightness: 500cd/㎡
Communication Interface: MIPI-DSI 2-lane
Touch Type: Capacitive touch
DISPLAY SIZE: 4.3inch
Viewing angle: 160°
Contrast Ratio: 1000:1
Display Driver: ST7701
Touch IC: GT911

Package Includes

ESP32-P4-WIFI6-Touch-LCD-4.3 host x1
GH1.25 2PIN 8Ω 2W speaker 50mm x1

IPS Display Panel

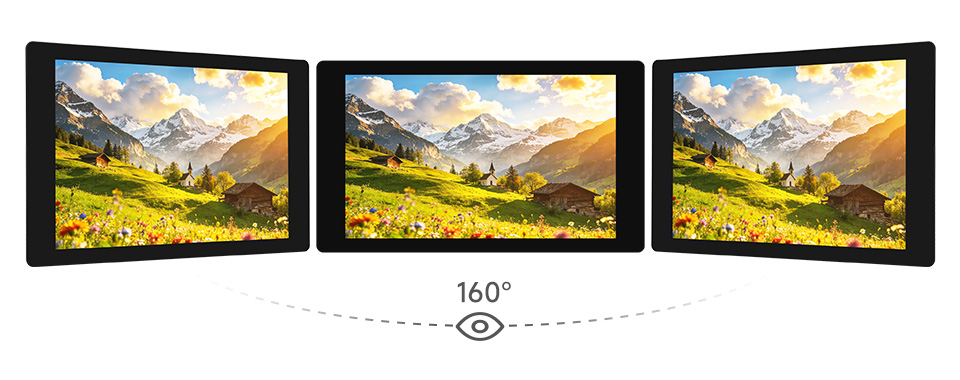

Excellent Display Performance With 160° Wide Viewing Angle

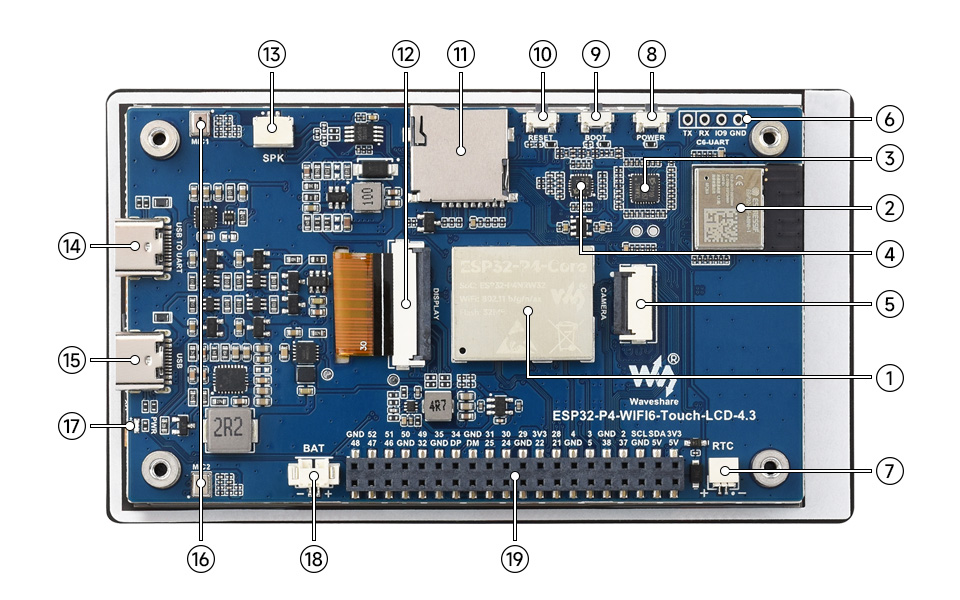

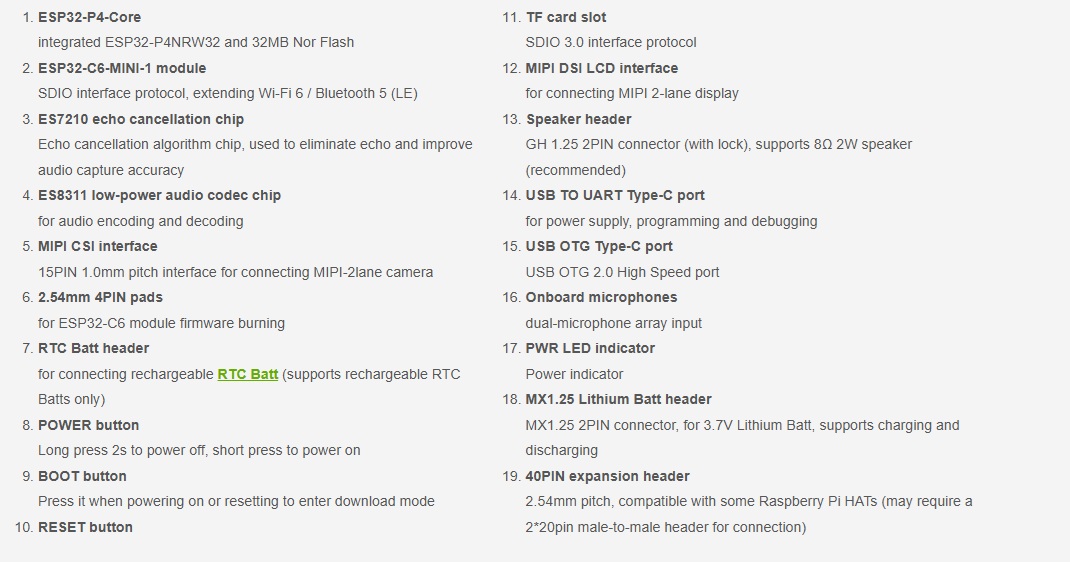

What's On Board

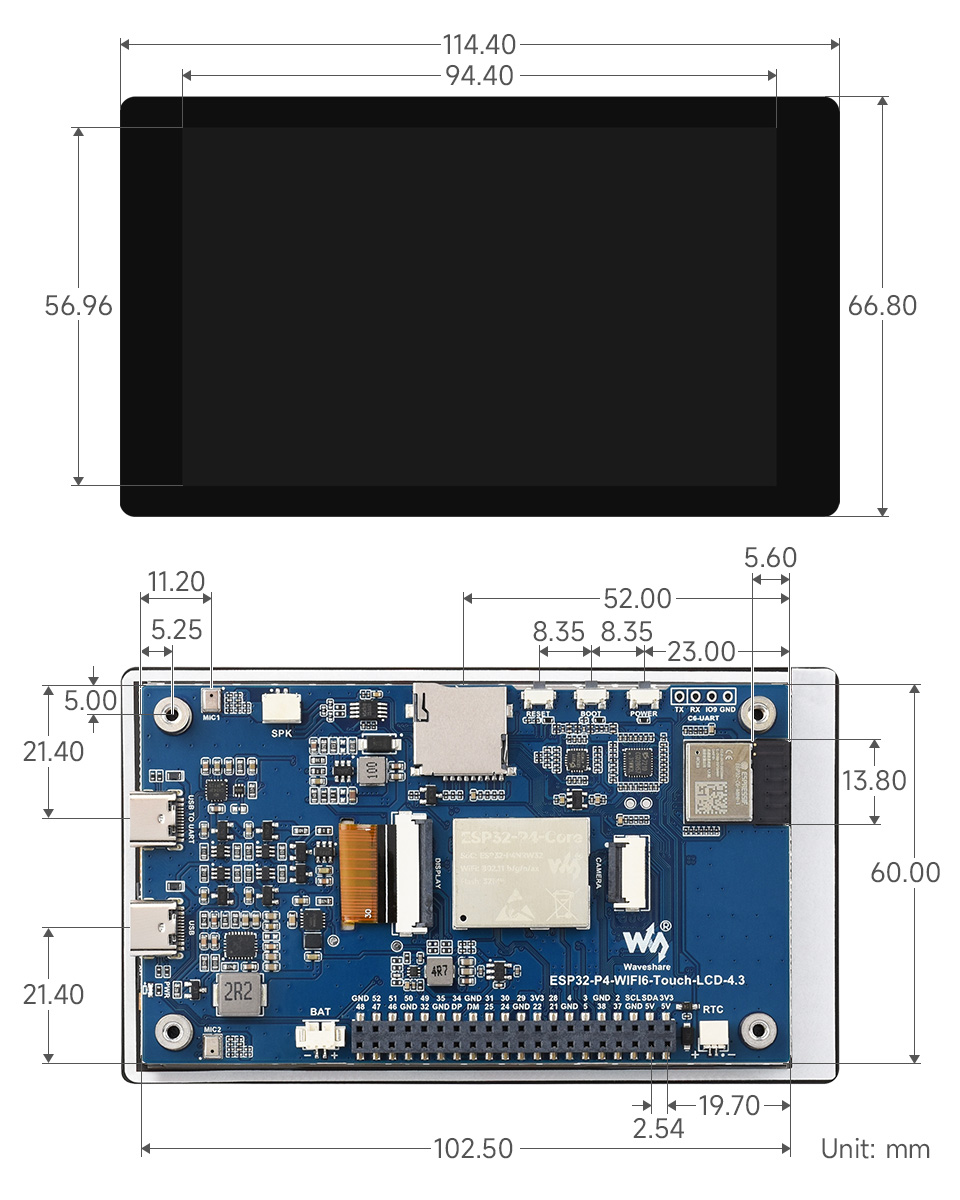

Dimensions
