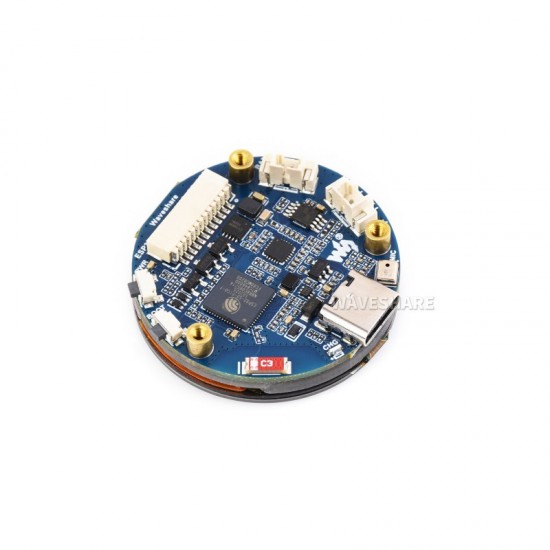

Waveshare ESP32-S3 1.32inch AMOLED Round Touch Display Development Board, 466×466 Pixels, QSPI Interface, Supports Wi-Fi and Bluetooth 5

The ESP32-S3-Touch-AMOLED-1.32 is a compact 1.32inch AMOLED capacitive touch display development board designed by Waveshare. Onboard power management module, low power audio codec circuit, and MIC, adapting 12PIN expansion I/O interface, Lithium Batt. header, and speaker header, suitable for applications such as AI voice agents.


User Manual / Datasheet / Example Codes Etc.


Features

  • Equipped with ESP32-S3 high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
  • Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), onboard antenna
  • Built-in 512KB of Static RAM and 384KB ROM, with onboard 8MB PSRAM and 8MB Flash memory
  • Onboard 1.32inch AMOLED capacitive touch display for clear color picture display, 466 × 466 resolution, 16.7M color
  • Built-in CO5300 display driver and CST820 capacitive touch chip, using QSPI and I2C communication respectively, effectively saving the IO resources
  • Onboard PWR and BOOT programmable buttons for easy custom function development
  • Onboard 3.7V MX1.25 Lithium Batt. recharge/discharge header
  • Equipped with the ES8311 low-power audio codec chip, supports high-quality audio input and output to meet diverse application needs such as speech interaction and audio playback
  • Adapting SH1.0 12PIN expansion interface for DIY functionality expansion
  • Adopts AMOLED screen, featuring advantages of high contrast, wide viewing angle, rich colors, fast response, thinner design, and low power consumption, etc.


Specifications

  • Display Panel: AMOLED
  • Resolution: 466 × 466 pixels
  • Brightness: 500 cd/㎡
  • Communication Interface: QSPI
  • Touch: Supported
  • Display Size: 1.32 inch
  • Display Colors: 16.7M
  • Contrast Ratio: 10000:1
  • Driver IC: CO5300
  • Touch IC: CST820


Package Includes

  • ESP32-S3-Touch-AMOLED-1.32
  • 8Ω 2W speaker
  • SH1.0 12PIN cable

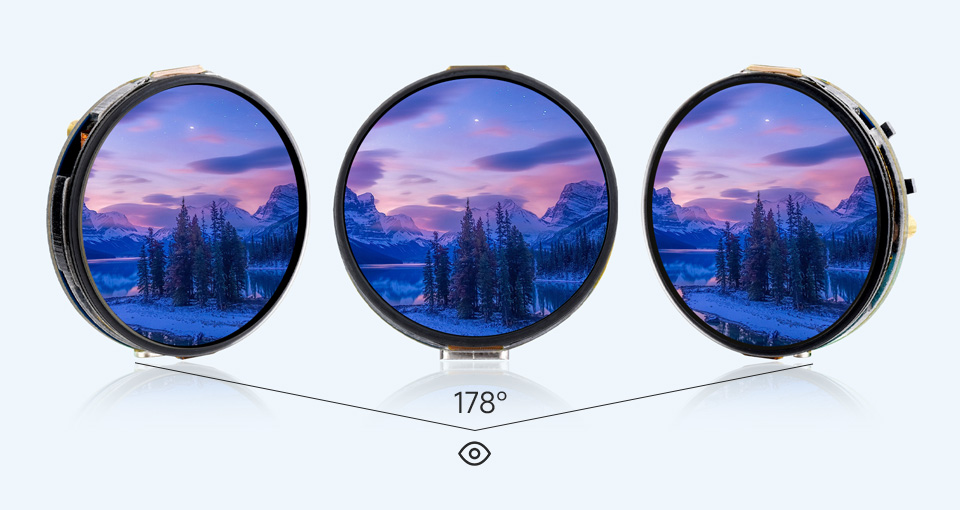

178° wide viewing angle

Excellent Display Performance, 16.7M color, wide viewing angle

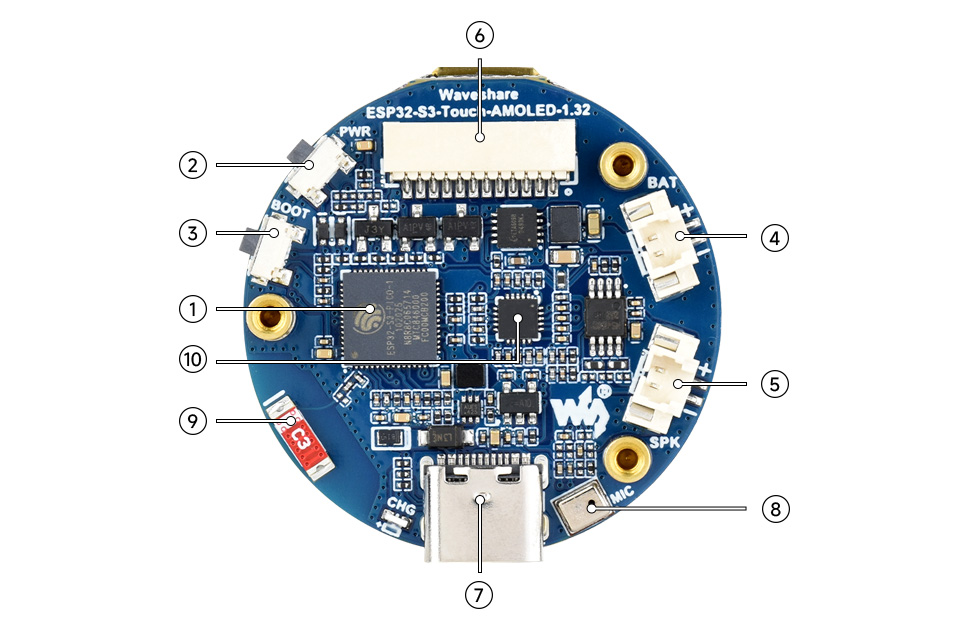

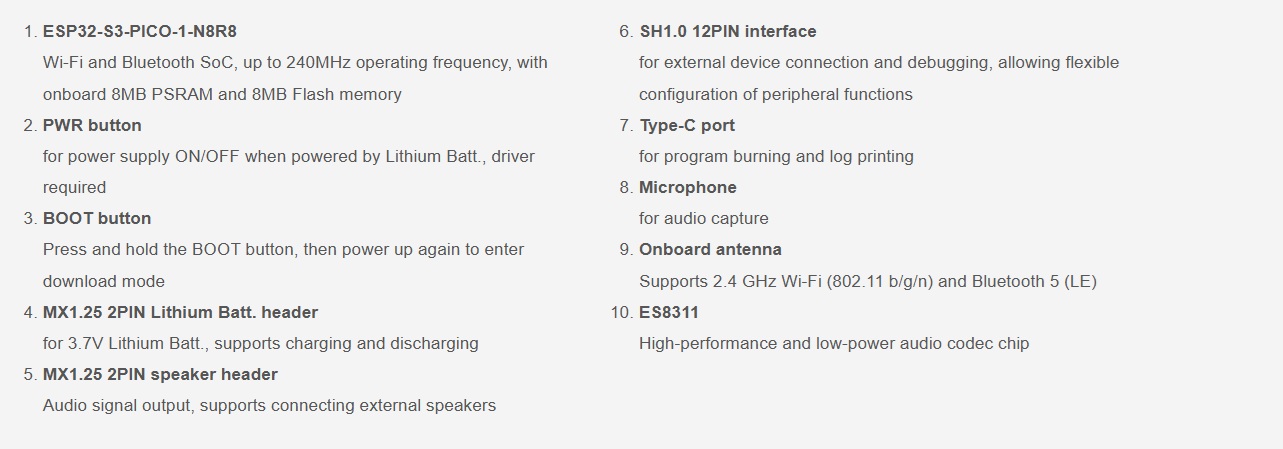

What's On Board

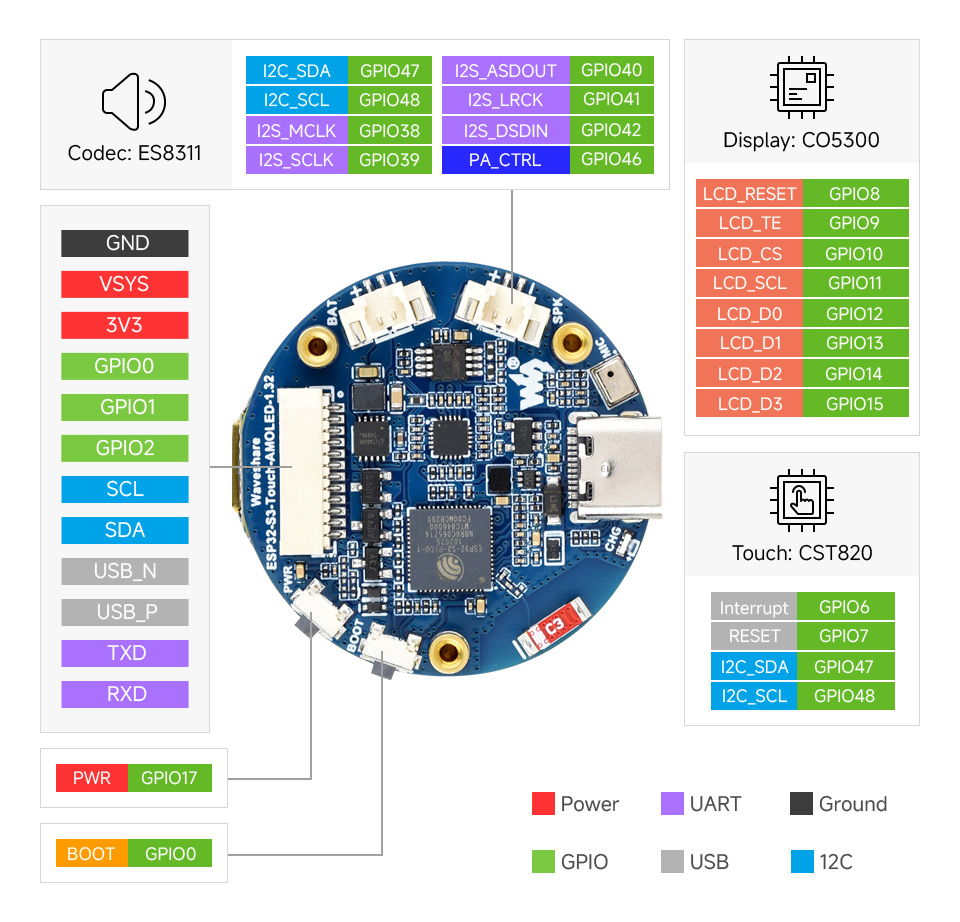

Interface Definition

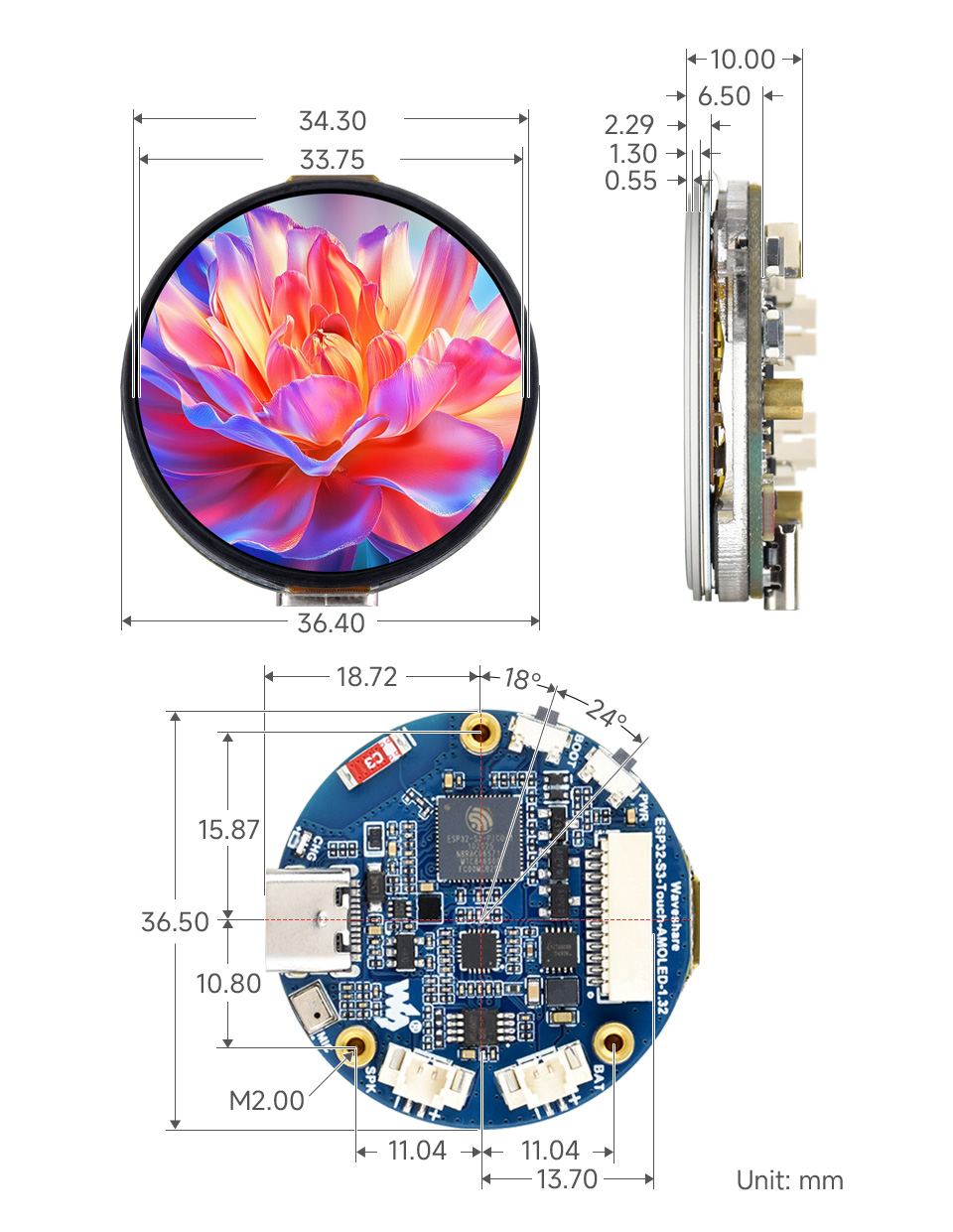

Dimensions
