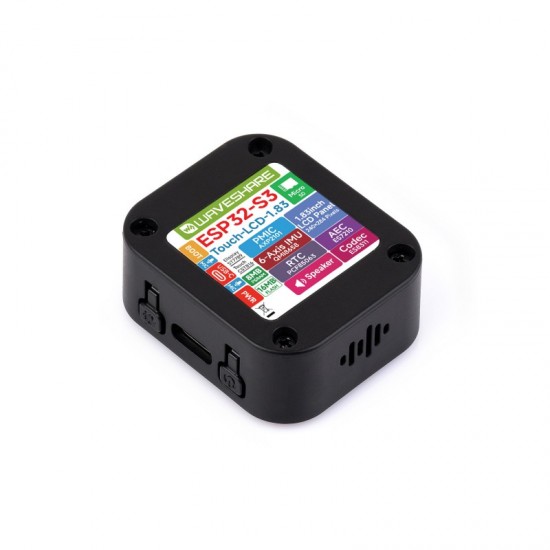

ESP32-S3 1.83inch Touch Display Development Board, 240 × 284, Onboard Audio Codec Chip, Built-in Microphones And Speaker, Supports Wi-Fi And BLE 5 - Without Battery

ESP32-S3-Touch-LCD-1.83 a high-performance, highly integrated microcontroller development board designed by Waveshare. Tiny size with onboard 1.83inch capacitive display, highly integrated power management IC, 6-axis IMU (3-axis accelerometer and 3-axis gyroscope), RTC chip, low-power audio codec IC, and so on, which makes it easy for you to develop and integrate into the products quickly.

User Manual / Datasheet / Example Codes Etc.

Features

Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
Built-in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory
Adopts Type-C port to improve user convenience and device compatibility
Onboard 1.83inch capacitive touch display, 240 × 284 resolution, 65K color
Built-in ST7789P display driver and CST816D capacitive touch chip, using SPI and I2C communication respectively, effectively saving the IO resources
Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, counting steps, etc.
Onboard PCF85063 RTC chip connected to the battery via the AXP2101 for uninterrupted power supply

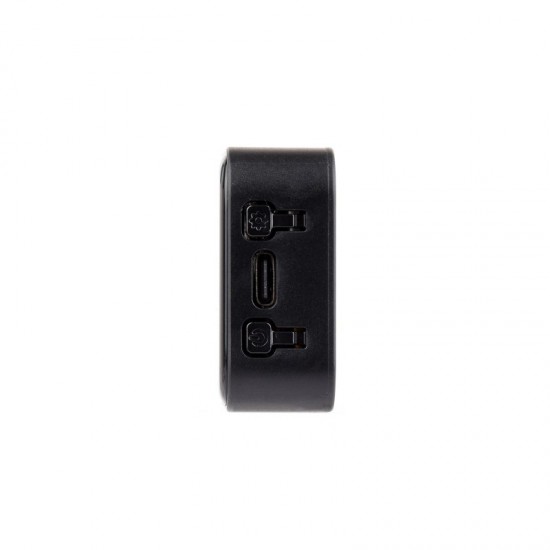

Onboard PWR and BOOT programmable buttons for easy custom function development
Onboard JST 1.2mm 2PIN 3.7V Lithium battery recharge/discharge header
Reserved 1 × I2C, 1 × UART and 1 × USB pads for external device connection and debugging, enabling flexible peripheral configuration
Onboard TF card slot for extended storage and fast data transfer, suitable for applications such as data recording and media playback, simplifying circuit design
Adopts AXP2101 IC for efficient power management, supports multiple configurable output voltages, battery charging, battery management, and battery life optimization, etc.
High touch screen transmittance, fast response and long lifetime

Specifications

DISPLAY SIZE: 1.83inch
DISPLAY PANEL: IPS
Resolution: 240 × 284 pixels
Color: 65K
Brightness: 300cd/㎡
Contrast Ratio: 1200:1
Communication Interface: SPI
Display Driver: ST7789P
Touch Type: Capacitive
Touch IC: CST816D

Package Includes

ESP32-S3-Touch-LCD-1.83 x1
Battery adapter cable x1

IPS Display Panel

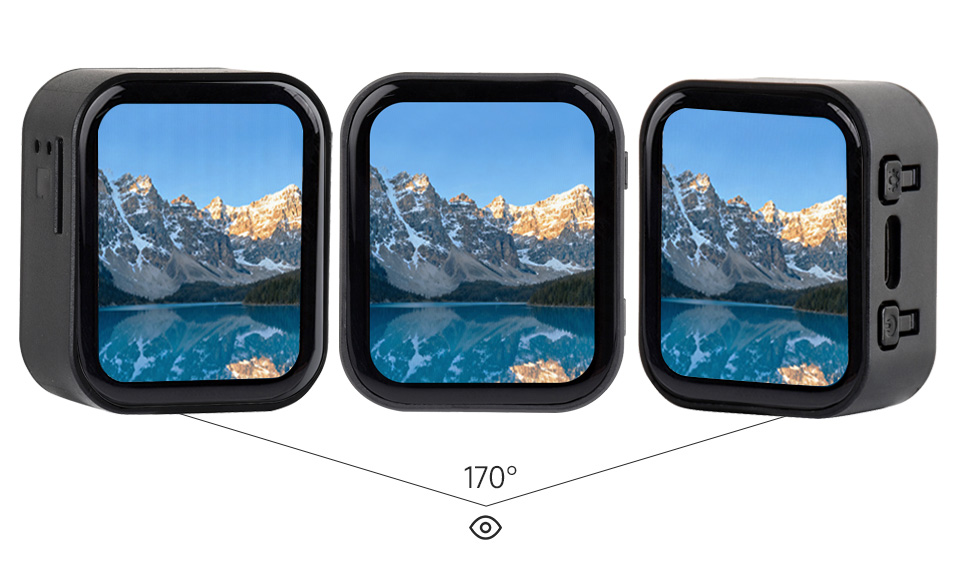

Excellent display performance, wide viewing angle

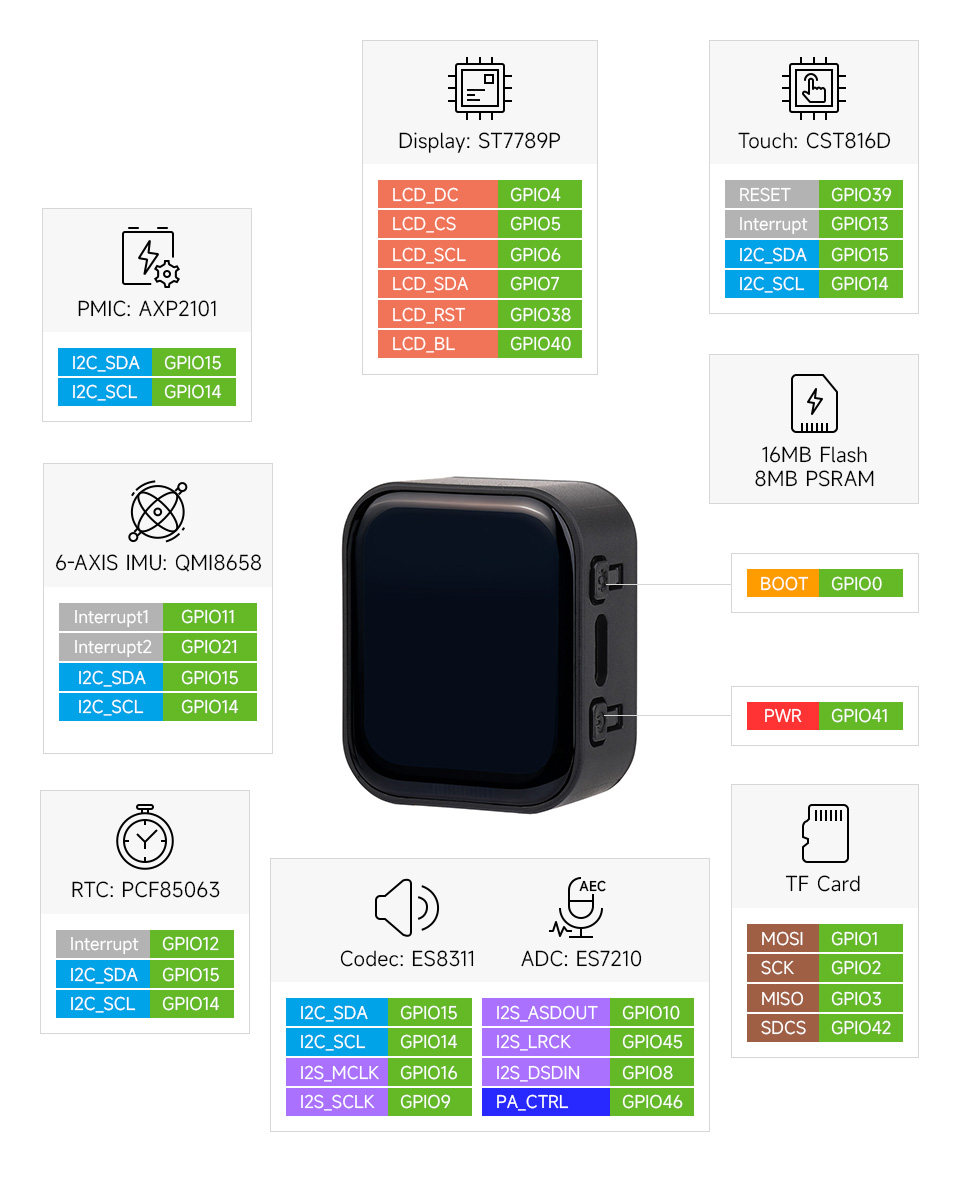

Pin Definition

Function Introduction

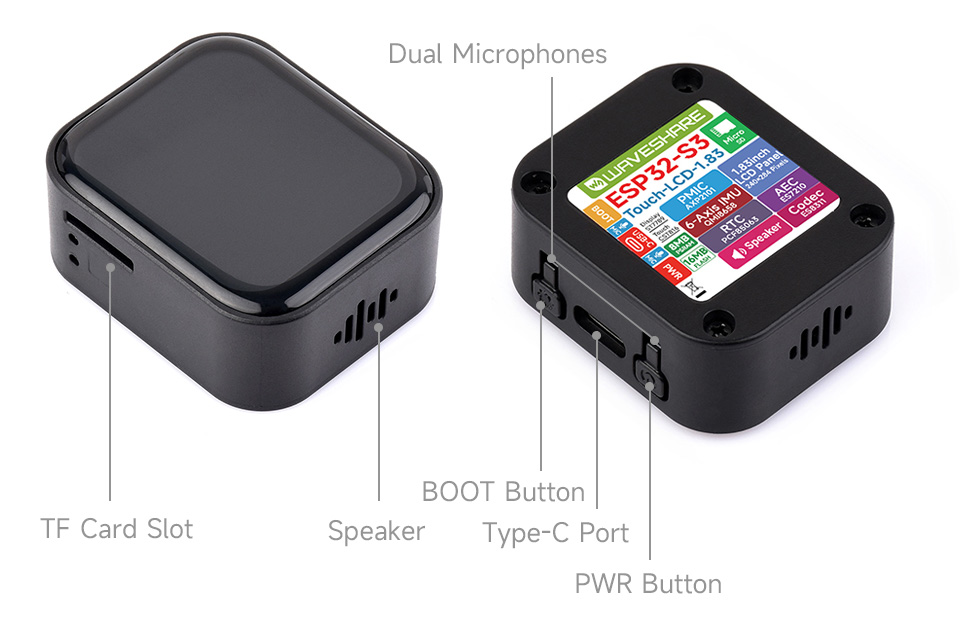

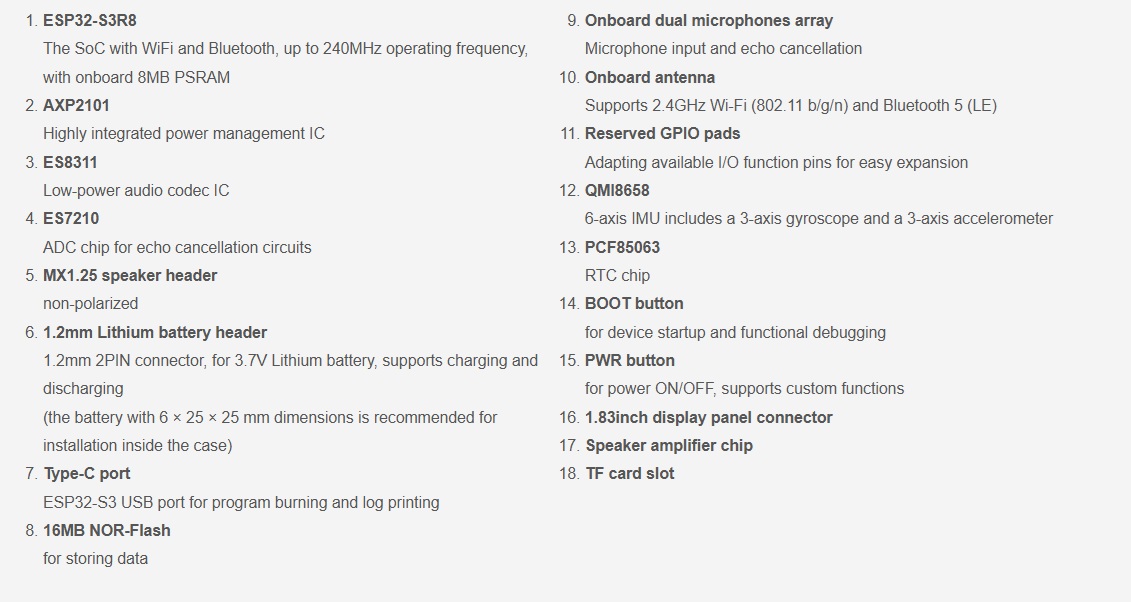

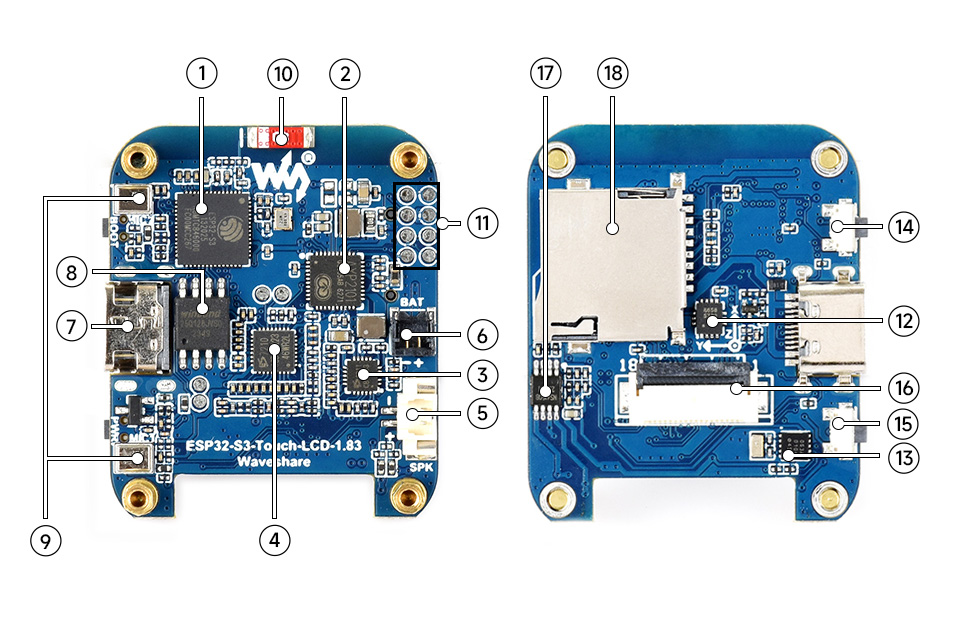

What's On Board

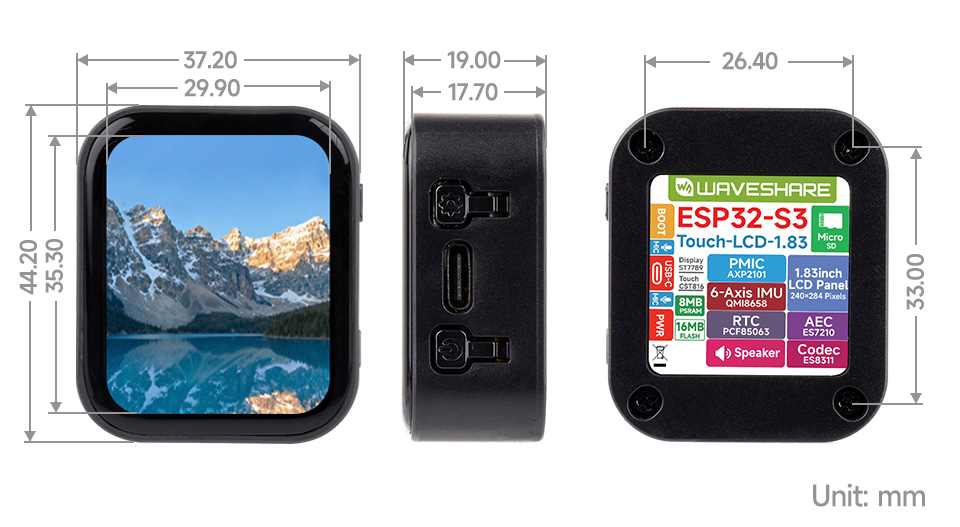

Dimensions
