Name: OpenH743I-C Standard, STM32H7 Development Board
Brand: WaveShare Electronics
SKU: 16884
Price: 9698.42 INR
Availability: OutOfStock

OpenH743I-C Standard, STM32H7 Development Board

WaveShare Electronics

OpenH743I-C Standard, STM32H7 Development Board

This product qualifies for Free Surface Shipping !

All orders with value above 1999+GST are eligible for free delivery in Surface mode. (Not applicable for B2B offline orders)

Based on 0 reviews. - Write a review

₹9,698.42

₹8,219.00 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 82
B2B GST Credit Available

Stock: 0 in Stock
SKU: 16884
Delivery Time
Bulk & B2B RFQ

Buy Now NOTIFY WHEN AVAILABLE

Plan to Buy Later ? Add to Wish List

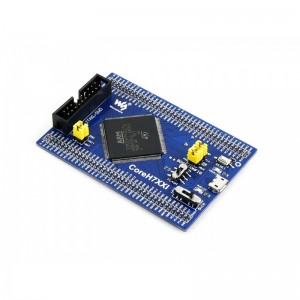

OpenH743I-C is an STM32 development board designed for the STM32H743IIT6 microcontroller, consists of the mother board and the MCU core board CoreH743I.

The OpenH743I-C supports further expansion with various optional accessory boards for specific application. The modular and open design makes it the ideal for starting application development with STM32 series microcontrollers.

Resources

User Manual

Onboard Peripherals

MCU core board connector: for easily connecting the CoreH743I
Arduino interface: for connecting Arduino shields
DCMI interface: for connecting camera
8-bit FMC interface: easily connects to peripherals such as NandFlash
ULPI interface: for connecting high-speed USB peripheral (the STM32H743I integrates USB HS controller without any PHY device)
LCD interface 1: for connecting 10.1inch LCD, 7inch LCD, 4.3inch LCD
LCD interface 2: for connecting 4.3inch LCD
SAI1 interface: for connecting audio modules
ICSP interface: Arduino ICSP
SPI interfaces:
- easily connects to SPI peripherals such as DataFlash (AT45DBxx, W25QXX), SD card, MP3 module, etc.
- easily connects to AD/DA modules (SPI1 features AD/DA alternative function)
Ethernet interface: for connecting Ethernet modules
I2S / I2C interface: easily connects to I2S peripherals such as audio module, etc.
USART1 connector: USB to UASRT via the onboard convertor CP2102
QUADSPI interface: 4-wires SPI interface (the H7 series latest peripheral interface), for connecting serial Flash modules like W25QXX Board
SDMMC interface: for connecting Micro SD module, features much faster access speed rather than SPI
USART3 interface: easily connects to RS232, RS485, USB TO 232, etc.
CAN2 interface: for connecting CAN modules
CAN1 interface: for connecting CAN modules
I2C1/I2C4 interface: easily connects to I2C peripherals such as I/O expander (PCF8574), EEPROM (AT24Cxx), 10 DOF IMU Sensor, etc.
MCU pins connector: all the MCU I/O ports are accessible on expansion connectors for further expansion
5V DC jack
5V/3.3V power input/output: usually used as power output, also common-grounding with other user board
Power supply switch: powered from 5VDC OR USB connection of the USART1
CP2102: USB to UART convertor
LEDs: convenient for indicating I/O status and/or program running state
Joystick: five positions
WAKE UP button: used as regular button, and/or wake up the STM32 MCU from sleep
Reset button
USART1 jumper
LED jumper
- short the jumper to connect to default I/Os used in example code
- open the jumper to connect to custom I/Os via jumper wires
KEY jumper
- short the jumper to connect to default I/Os used in example code
- open the jumper to connect to custom I/Os via jumper wires
Arduino jumper
- short the upper pins, A4, A5 is used as AD function
- short the lower pins, A4, A5 is used as I2C function
