Name: Waveshare RP2350 0.85inch LCD Display Development Board, 128 × 128 Resolution, 65K Color, IPS Display Panel, Dual-core & Dual-architecture, RGB Ambient Light [Battery Not Included]
Brand: WaveShare Electronics
SKU: 34441
Price: 1375.00 INR
Availability: OutOfStock

Waveshare RP2350 0.85inch LCD Display Development Board, 128 × 128 Resolution, 65K Color, IPS Display Panel, Dual-core & Dual-architecture, RGB Ambient Light [Battery Not Included]

WaveShare Electronics

Waveshare RP2350 0.85inch LCD Display Development Board, 128 × 128 Resolution, 65K Color, IPS Display Panel, Dual-core & Dual-architecture, RGB Ambient Light [Battery Not Included]

Based on 0 reviews. - Write a review

₹1,375.00

₹1,165.25 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 12
B2B GST Credit Available

Price in reward points: 1165

Stock: 0 in Stock
SKU: 34441
Delivery Time
Bulk & B2B RFQ

Buy Now NOTIFY WHEN AVAILABLE

Plan to Buy Later ? Add to Wish List

RP2350 0.85inch LCD Display Development Board, 128 × 128 Resolution, 65K Color, IPS Display Panel, Dual-core & Dual-architecture, RGB Ambient Light [Battery Not Included]

RP2350-LCD-0.85 is a high-performance, highly integrated microcontroller development board designed by Waveshare. Features a high-capacity flash memory with onboard 0.85inch LCD display, 6-axis IMU sensor, TF card slot, and so on. Combined with a variety of communication interfaces, which makes it easy for you to develop and integrate it into products quickly.

User Manual / Datasheet / Example Codes Etc.

Features

RP2350 microcontroller chip designed by Raspberry Pi in the United Kingdom
Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard3 RISC-V processor, flexible clock running up to 150 MHz
520KB of SRAM, and 16MB of onboard Flash memory
Type-C connector, keeps it up to date, easier to use
Onboard 0.85inch LCD display, 128×128 resolution, 65K color
USB 1.1 with device and host support
Low-power sleep and dormant modes
Drag-and-drop programming using mass storage over USB
1 × I2C, 1 × UART, 2 × 12-bit ADC and 2 × controllable PWM channels
Accurate clock and timer on-chip
Temperature sensor
12 × Programmable I/O (PIO) state machines for custom peripheral support

Specifications

Operating voltage: 3.3V/5V
Resolution: 128 × 128 pixels
Display panel: IPS
communication interface: 4-wire SPI
Display Size: 15.21 × 15.21 (mm)
Display Color: 65K
Pixel pitch: 39.6 × 118.8 (um)
Driver IC: ST7735

Package includes

1x RP2350-LCD-0.85 host
1x PC insulating sheet

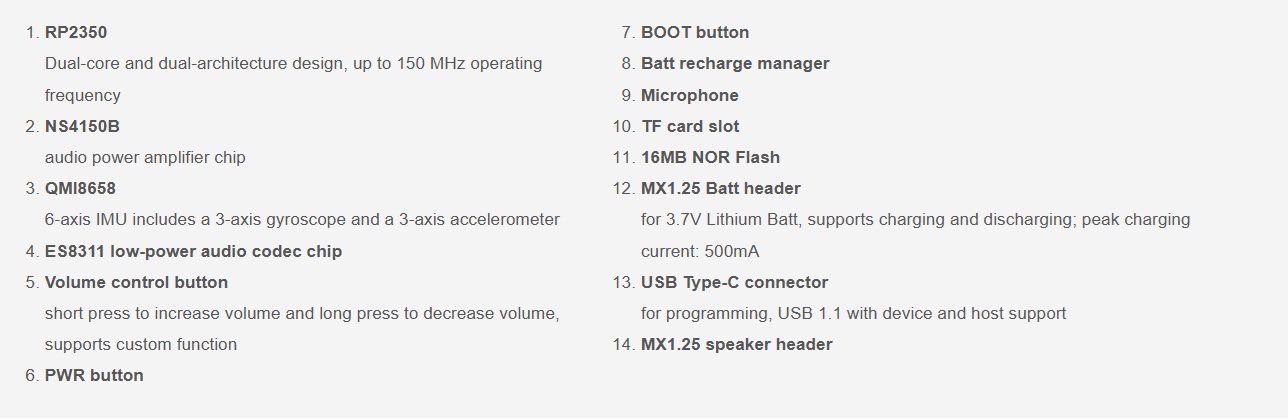

What's On Board

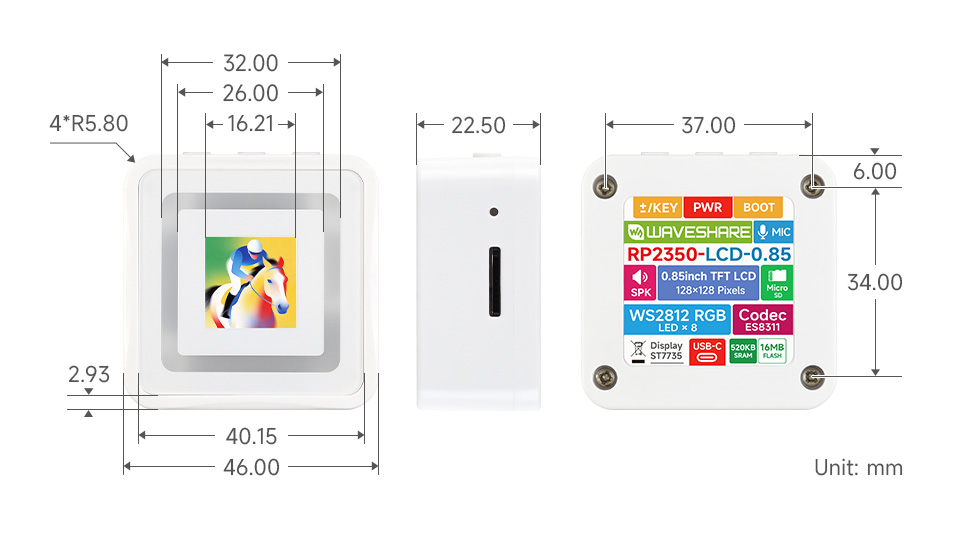

Dimensions
