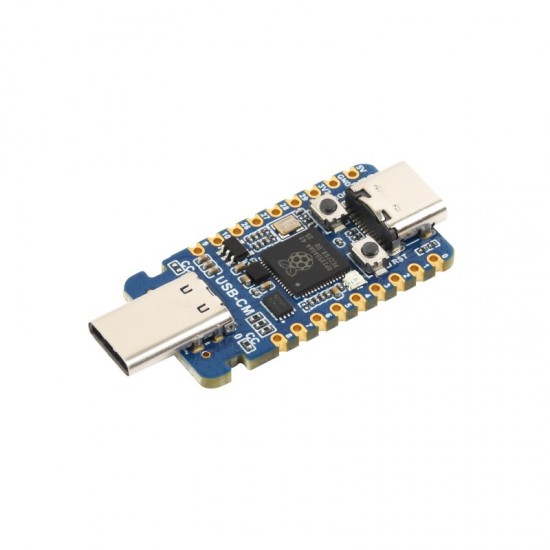

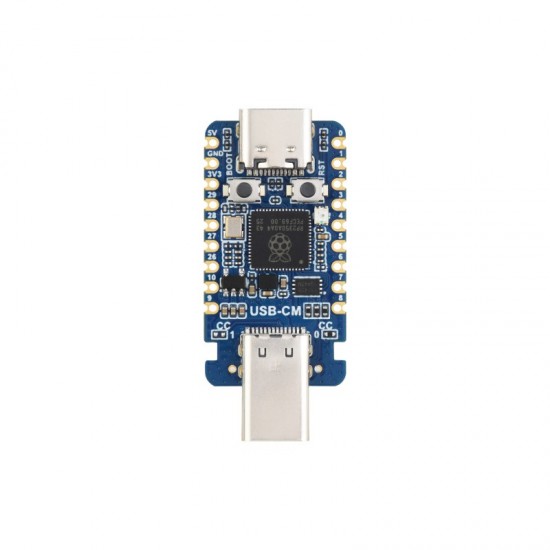

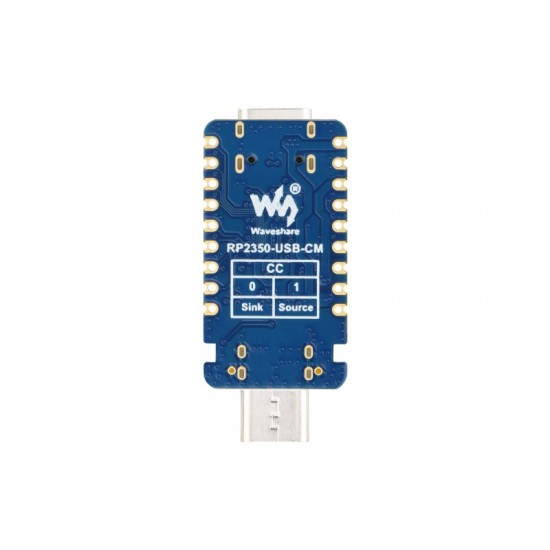

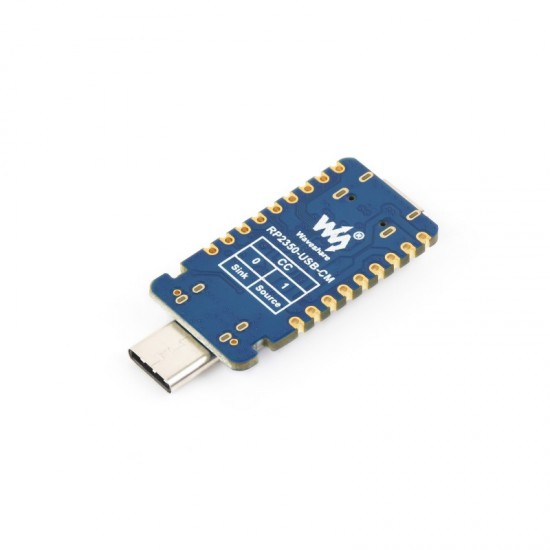

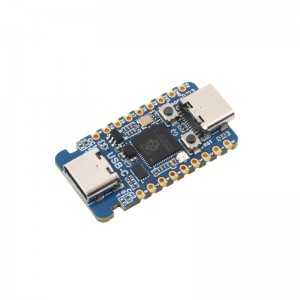

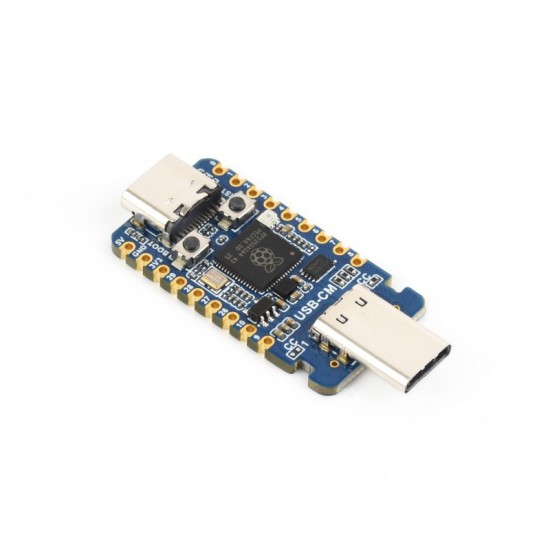

Waveshare RP2350-USB-C Microcontroller Development Board Based On Raspberry Pi RP2350A, Dual-Core & Dual-Architecture with PIO-USB Male Port
The Waveshare RP2350-USB-C Microcontroller Development Board is a compact, high-performance development platform built around the Raspberry Pi RP2350A chip. It features an innovative dual-core, dual-architecture design, allowing developers to switch between ARM Cortex-M33 and Hazard3 RISC-V processing architectures for flexible embedded development. Its ultra-compact castellated form factor and integrated PIO-USB male port make it ideal for custom hardware integration, USB applications, IoT devices, automation, and rapid prototyping.
Designed for ease of development, the board includes a USB Type-C interface for programming and power, onboard 2MB Flash memory, 520KB SRAM, and support for drag-and-drop firmware deployment. Developers can work with MicroPython, C/C++, and Arduino environments, making it suitable for both beginners and advanced embedded projects.
User Manual / Datasheet / Example Codes Etc.
Features
- Utilizes the RP2350A microcontroller chip designed by Raspberry Pi
- Unique dual-core, dual-architecture, featuring dual-core ARM Cortex-M33 processors and dual-core Hazard3 RISC-V processors, both operating at up to 150MHz, allowing users to flexibly switch between the two architectures
- Built-in 520KB of SRAM and 2MB of on-chip Flash
- Utilizes a Type-C port, eliminating the hassle of plug orientation
- USB1.1 host and slave device support
- Supports low-power sleep and dormant modes
- Drag-and-drop programming using mass storage over USB
- 15 × multi-function GPIO pins of the RP2350A are brought out
- 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC and 14 × controllable PWM channels
- Accurate on-chip clock and timer
- Built-in temperature sensor for real-time chip temperature monitoring
- 12 × programmable I/O (PIO) state machines for custom peripheral support
Specifications
- RP2350A microcontroller chip designed by Raspberry Pi in the United Kingdom
- Adopts unique dual-core and dual-architecture design: dual ARM Cortex-M33 or dual Hazard3 RISC-V processors support, flexible clock running up to 150 MHz
- Built-in 520KB Static RAM, with onboard 2MB Flash
- Type-C port for easier use
- Supports power supply via Type-C port (PD compatible)
- Castellated module allows soldering directly to carrier boards
- USB 1.1 with device and host support
- Low-power sleep and dormant modes
- Drag-and-drop programming using mass storage over USB
- Adapting 15 × multi-function GPIO pins from the RP2350A
- 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, and 14 × controllable PWM channels
- Accurate clock and timer on-chip
- Built-in temperature sensor for real-time monitoring of chip temperature
- 12 × Programmable I/O (PIO) state machines for custom peripheral support
Package Includes
- 1x RP2350-USB-CM

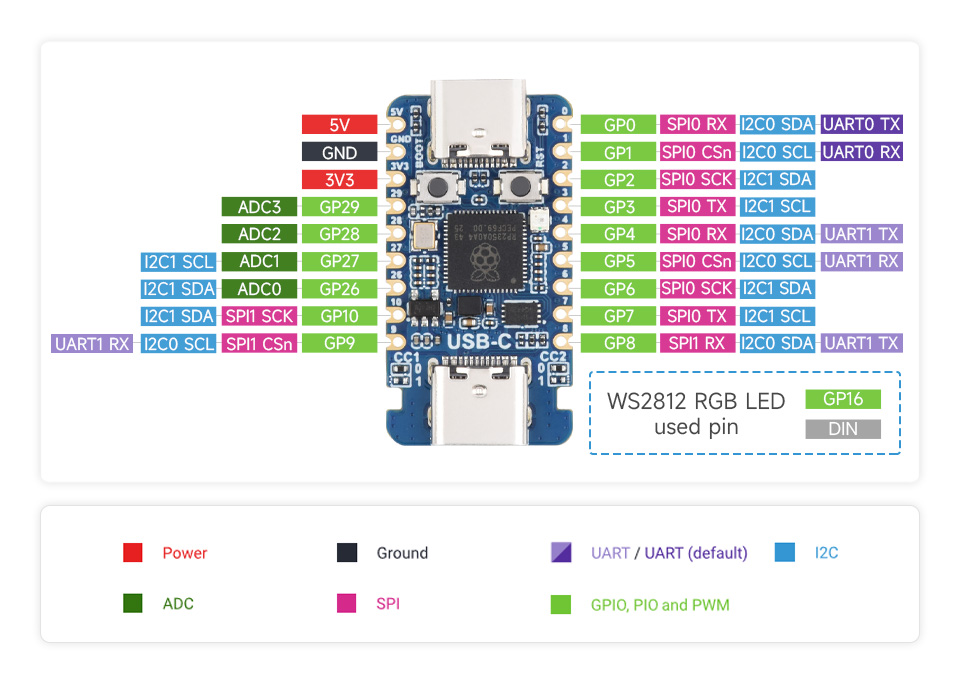

15 × multi-function GPIO pins
Configurable pin function, allows flexible development and integration

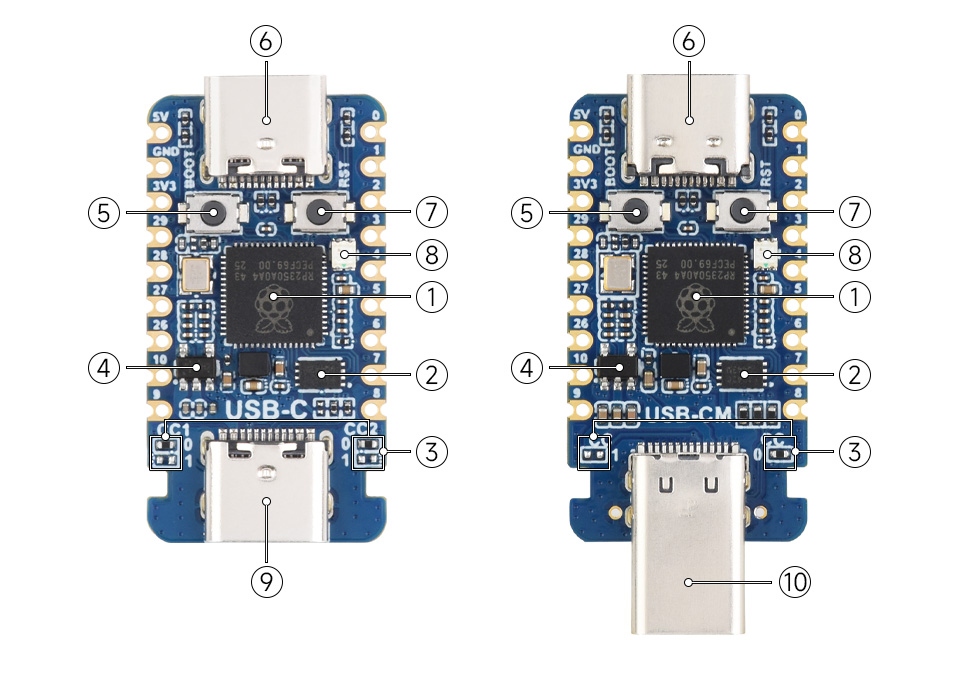

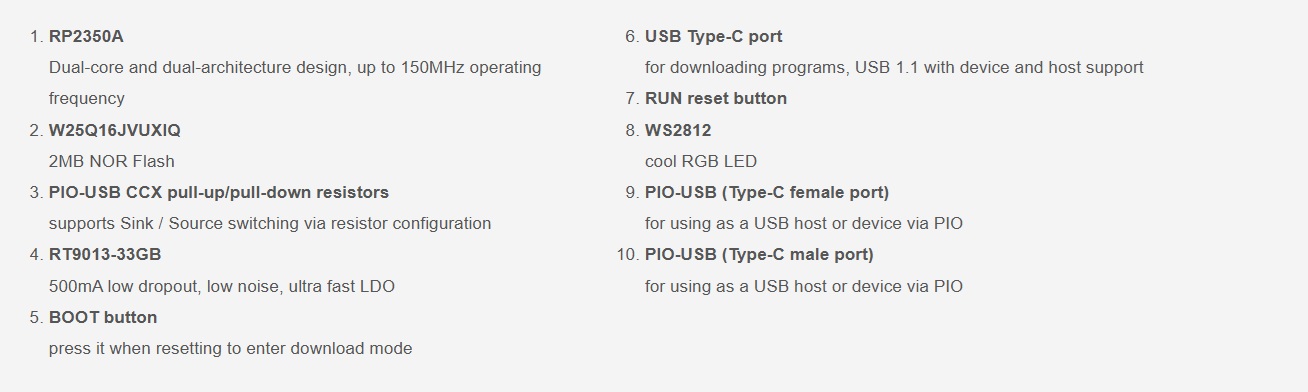

What's On Board

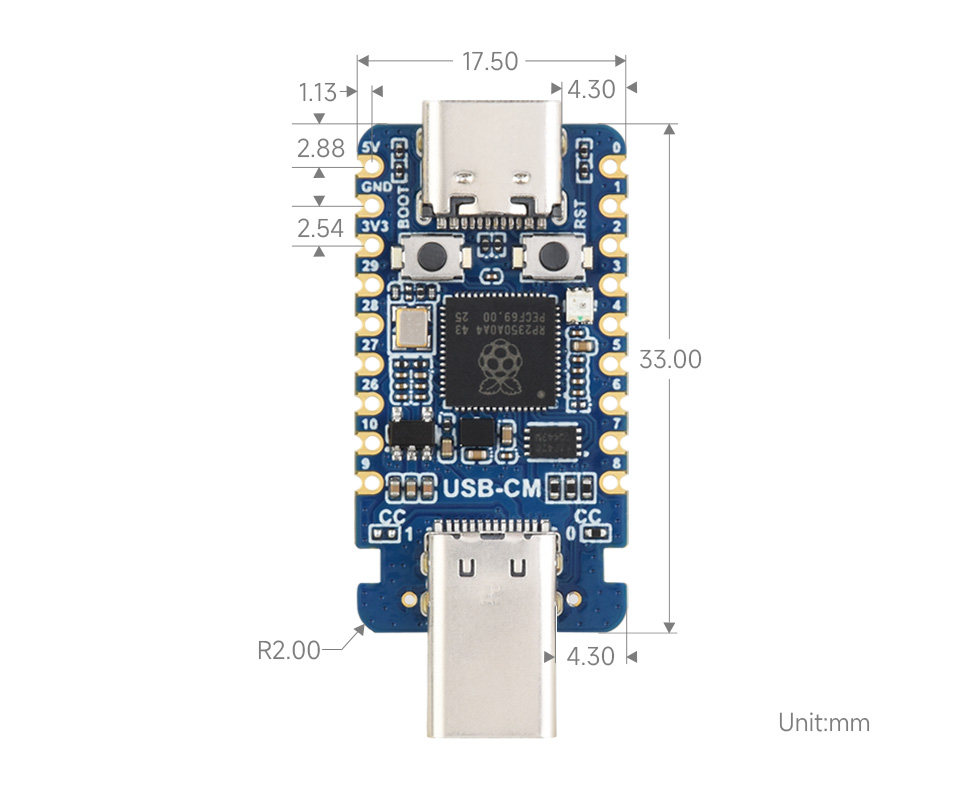

Dimensions
