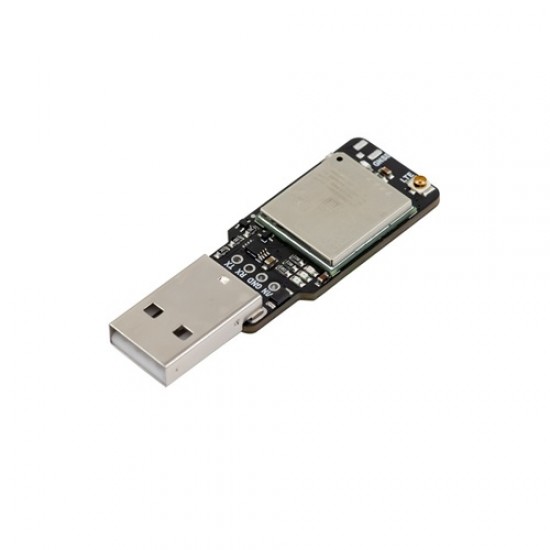

7Semi EG800AK-CN LTE Cat 1 USB Dongle
The 7Semi EG800AK-CN LTE Cat-1 bis USB Dongle is a compact 4G LTE cellular connectivity solution built around the Quectel EG800AK-CN LTE Cat-1 bis modem in a USB Type-A dongle form factor, combining the plug-and-play convenience of a USB-connected modem with the direct UART breakout pin access required for embedded system and microcontroller-based AT command integration. The USB Type-A interface provides simultaneous modem power supply and USB communication to a connected host computer, Raspberry Pi, Linux SBC, or USB-OTG-capable embedded platform without an external power supply, while the exposed UART breakout pins covering TX, RX, VIN, and GND extend modem AT command access to ESP32, STM32, RP2040, Arduino, and other microcontroller platforms that cannot directly enumerate the USB modem interface but can communicate with the modem over a hardware UART serial connection. This dual-interface architecture makes the 7Semi USB Dongle a versatile development and deployment tool across both USB host-capable platforms requiring plug-and-play LTE access and UART-based microcontroller systems requiring direct serial AT command modem control from a conveniently packaged cellular module.
Supporting LTE-FDD bands B1, B3, B5, and B8 alongside LTE-TDD bands B34, B38, B39, B40, and B41, the EG800AK-CN modem covers the frequency band allocation of major LTE operators in India and China, providing broad carrier compatibility across both regions without band-specific modem variant selection for developers and deployment engineers operating across the two markets. Cat-1 bis delivers download speeds up to 10 Mbps and upload speeds up to 5 Mbps, positioning the dongle in the cost-effective mid-tier LTE category that provides sufficient bandwidth for IoT data streaming, telemetry uplink, OTA firmware updates, and industrial monitoring applications without the hardware cost and power premium of Cat-4 and higher modem solutions, where peak throughput headroom is not operationally required. Onboard power regulation circuitry manages the USB input voltage to the modem's required supply rails, and the included external LTE antenna connects via the U.FL and IPEX antenna connector for immediate deployment without additional antenna sourcing. Status indication LEDs provide visual network registration and power state confirmation without requiring AT command polling or serial terminal monitoring in field deployment scenarios.
Features
- Modem IC: Quectel EG800AK-CN LTE Cat-1 bis single-antenna modem for reliable 4G LTE connectivity across India and China operator frequency band coverage
- LTE Category: Cat-1 bis for 10 Mbps download and 5 Mbps upload speeds for IoT data streaming, telemetry, OTA updates, and industrial monitoring applications
- USB Type-A Interface: Standard USB Type-A connector for plug-and-play power supply and modem USB communication to host computers, Raspberry Pi, Linux SBCs, and USB-OTG platforms
- UART Breakout Pins: Exposed TX, RX, VIN, and GND pins for direct AT command modem access from ESP32, STM32, RP2040, Arduino, and UART-based microcontroller platforms
- Dual Interface Architecture: USB Type-A for host computer and Linux SBC connectivity alongside UART breakout for microcontroller AT command integration from a single dongle
- LTE-FDD Bands: B1, B3, B5, B8 for FDD frequency band coverage across major Indian and Chinese LTE operators
- LTE-TDD Bands: B34, B38, B39, B40, B41 for TDD frequency band coverage across major Indian and Chinese LTE operators
- AT Command Interface: Standard Quectel AT command set via both USB and UART breakout for modem control, network registration, data connection management, and status query

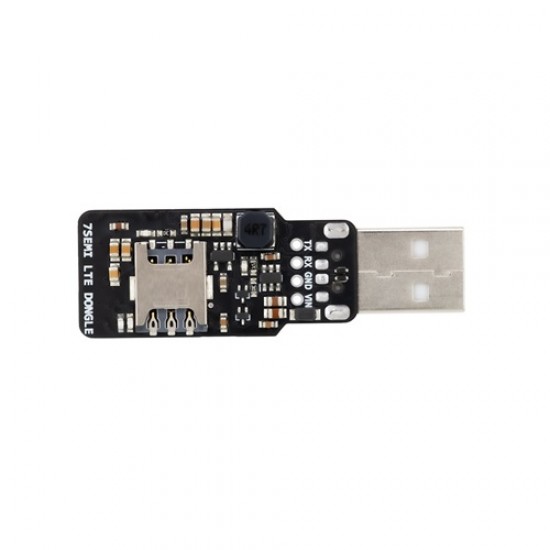

- Nano SIM Card Slot: Onboard Nano SIM slot for standard operator SIM card insertion without external SIM holder or adapter
- U.FL and IPEX Antenna Connector: LTE antenna connection via U.FL and IPEX connector with an external LTE antenna included for immediate deployment
- Onboard Power Regulation: Integrated power regulation circuitry converts USB Type-A input to modem supply rails without external regulator components
- Status Indication LEDs: Onboard network status and power indicator LEDs for visual LTE registration and power state confirmation without serial terminal monitoring
- Industrial-Grade LTE Connectivity: Quectel EG800AK-CN industrial-grade modem for reliable, sustained operation in IoT, telemetry, and industrial deployment environments

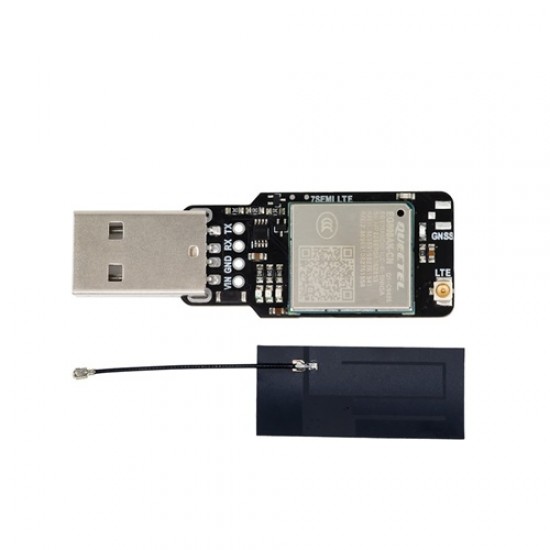

- External LTE Antenna Included: LTE antenna included in kit for immediate deployment without additional antenna sourcing
- Compact USB Dongle Form Factor: Standard USB dongle dimensions for direct USB port insertion on host systems and secure mounting in gateway and data logger enclosures.
Specifications
- Brand: 7Semi
- Category of Product: LTE Communication modem
- LTE-FDD Bands: B1, B3, B5, B8
- LTE-TDD Bands: B34, B38, B39, B40, B41
- Maximum Upload Speed: 5Mbps
- Maximum Download Speed: 10Mbps
- USB Supported: USB Type A
- Communication Interface: UART
- Operational Voltage: 5V via USB Type A ,5V to 26V via VIN pin
- Operational Temperature: -30C to 60C
- Dimension: L=54mm W=18mm H=7.91mm
- GNSS Support: Not available for this product
Applications
- Raspberry Pi and Linux SBC builds requiring plug-and-play USB LTE Cat-1 bis connectivity for IoT gateway, data logger, and industrial monitoring cellular WAN uplink
- ESP32, STM32, RP2040, and Arduino microcontroller builds requiring direct UART breakout AT command modem access from a compact USB dongle without a separate modem board
- Industrial automation and remote monitoring systems requiring industrial-grade Quectel EG800AK-CN LTE connectivity in a convenient USB dongle form factor
- IoT and telemetry development builds requiring dual USB and UART modem access for host PC AT command development alongside embedded microcontroller integration testing
- Asset tracking, smart metering, and field data logging are built in India and China, requiring multi-band LTE-FDD and LTE-TDD operator coverage without band-specific modem variant selection
- Gateway, router, and edge computing builds requiring a USB-connected LTE modem with UART breakout for simultaneous Linux USB modem driver and microcontroller AT command access.
Package Includes
- 1x 7Semi EG800AK-CN LTE Cat 1 USB Dongle
