Name: 7Semi INA240 4~80V Bidirectional Current Sense Amplifier Breakout, 50V/V Gain (MPN: ES-12189)
Brand: 7Semi
SKU: 08176
Price: 618.00 INR
Availability: OutOfStock

7Semi INA240 4~80V Bidirectional Current Sense Amplifier Breakout, 50V/V Gain (MPN: ES-12189)

7Semi

7Semi INA240 4~80V Bidirectional Current Sense Amplifier Breakout, 50V/V Gain (MPN: ES-12189)

Based on 0 reviews. - Write a review

₹618.00

₹523.73 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 5
B2B GST Credit Available

Price in reward points: 523

Stock: 0 in Stock
SKU: 08176
Delivery Time
Bulk & B2B RFQ

Buy Now NOTIFY WHEN AVAILABLE

Plan to Buy Later ? Add to Wish List

7Semi INA240 4~80V Bidirectional Current Sense Amplifier Breakout, 50V/V Gain

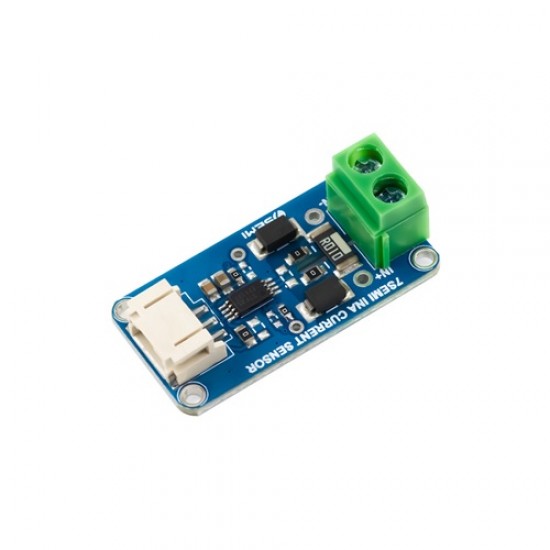

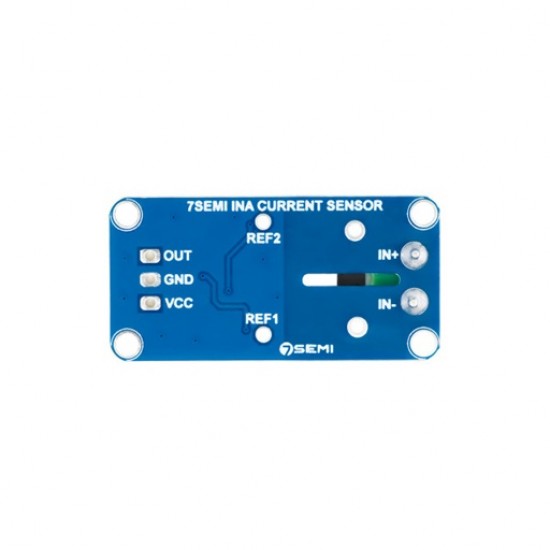

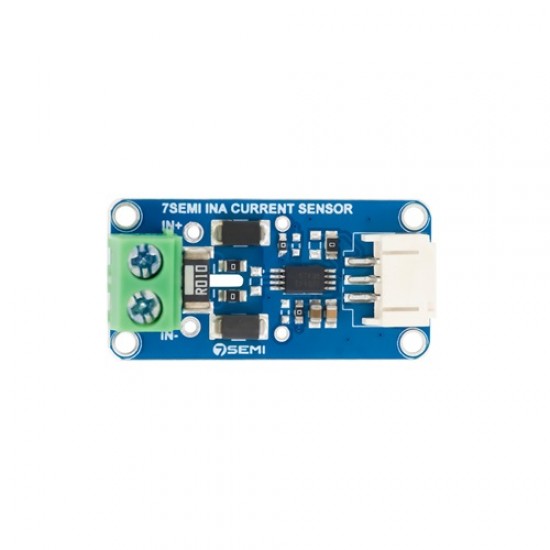

The 7Semi INA240 Breakout Board features Texas Instruments' INA240 current-sense amplifier, offering a 50 V/V gain for precise bidirectional current measurement across a wide common-mode voltage range of -4V to 80V. It provides enhanced PWM rejection, ensuring accurate readings in noisy environments, and is suitable for applications like motor drives and power management systems.

Datasheet

Features

Wide Voltage Range (-4V to 80V): Seamlessly measure current across a broad common mode voltage range, even in applications operating below ground.
Enhanced PWM Rejection: Maintain precision even in the presence of large common mode transients, ensuring accurate measurements in systems with PWM signals.
High-Precision Voltage Output: The INA240A2 onboard provides a proportional voltage output for effortless integration with your existing setup.
Compact & Convenient: The compact breakout board design simplifies integration into your projects while offering easy access to essential pins and connections.
Diverse Applications: Ideal for motor drives, solenoid control, battery management, power monitoring, and a wide range of other applications.

Specifications

Amplifier IC: INA240A2
Gain: 50 V/V
Common-Mode Voltage Range: –4V to +80V
Supply Voltage: 2.7V to 5.5V
DC CMRR: 132 dB (typ.)
AC CMRR: 93 dB @ 50 kHz
Maximum Supply Current: 2.4 mA
Operating Temperature: –40°C to +125°C

Package Includes

1x 7Semi INA240 4~80V Bidirectional Current Sense Amplifier Breakout, 50V/V Gain
