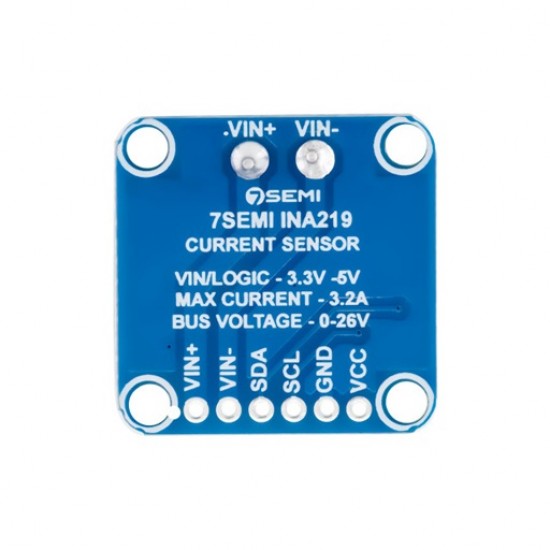

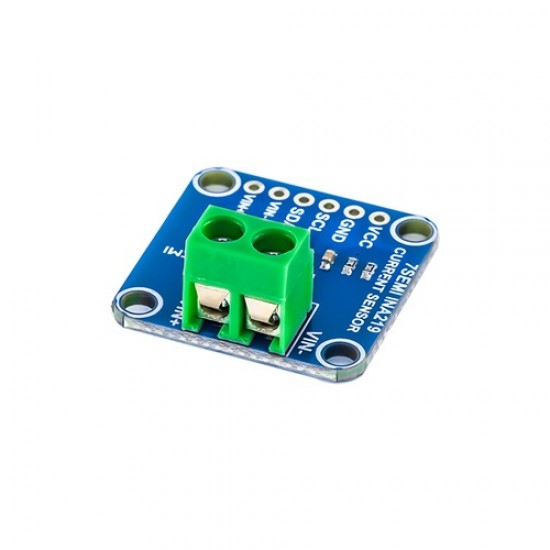

INA219 High-Side DC Current, Voltage & Power Monitor Sensor Module with I2C Interface

The 7Semi INA219 Current Sensor Module is a high-precision voltage, current, and power monitoring solution designed for embedded systems, battery-powered devices, industrial automation, robotics, and energy management applications. Based on the Texas Instruments INA219 high-side current shunt and power monitor IC, this module enables accurate measurement of bus voltages from 0V to 26V DC while simultaneously monitoring current consumption and calculating power usage in real time.

Featuring a precision onboard 0.1Ω shunt resistor and an I²C-compatible interface, the INA219 allows developers to easily integrate advanced power monitoring capabilities into Arduino, ESP32, STM32, Raspberry Pi, and other microcontroller-based projects. The device continuously measures both shunt voltage and bus voltage, providing direct current and power calculations through its internal calibration and multiplication engine.

The INA219 includes a programmable gain amplifier (PGA), configurable conversion times, built-in filtering options, and calibration registers that enable highly accurate measurements across a wide range of operating conditions. With support for up to 16 configurable I²C addresses, multiple INA219 modules can be connected on a single I²C bus for multi-channel current and power monitoring applications.

Whether you are monitoring battery discharge, optimizing power consumption, evaluating solar energy systems, measuring motor current, or performing system diagnostics, the 7Semi INA219 Current Sensor Module offers a reliable, accurate, and easy-to-use solution for real-time electrical parameter monitoring.

Datasheet

Features

Measures bus voltage, current, and power simultaneously
Supports bus voltage sensing from 0V to 26V DC
High-side current sensing without disturbing system ground
Precision onboard 0.1Ω current shunt resistor
Direct current measurement through internal calibration engine
Built-in power calculation for real-time wattage monitoring
I²C and SMBus compatible communication interface
Supports up to 16 programmable I²C addresses
Programmable Gain Amplifier (PGA) for flexible measurement ranges
Configurable conversion times and digital filtering options
High measurement accuracy with low offset drift
Internal calibration registers for improved precision
Low power consumption suitable for battery-powered applications
Compatible with Arduino, ESP32, STM32, Raspberry Pi, and other microcontrollers
Compact breakout board with clearly labeled connections

Specifications

Accuracy: 0.5% (Maximum)
Senses Bus Voltages: 0 to 26V
Interface: I2C
Operating Voltage: 2.7V - 5.5V

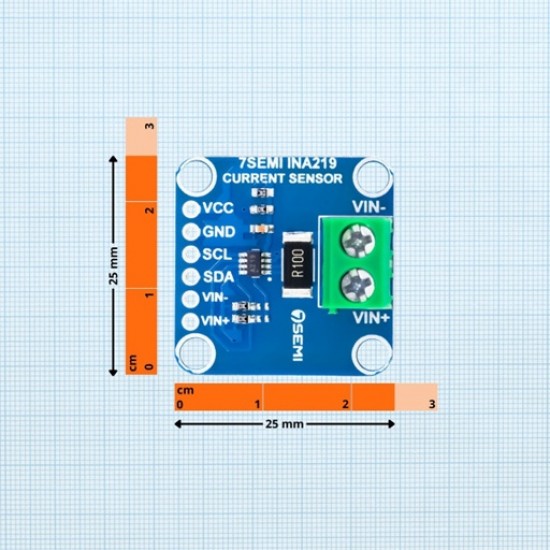

Dimension in mm: L=25mm W=25mm H=13.97mm
Bandwidth: 5.5KHz
Gain Error: 0.5%

Package Includes

1x INA219 High-Side DC Current, Voltage & Power Monitor Sensor Module with I2C Interface
