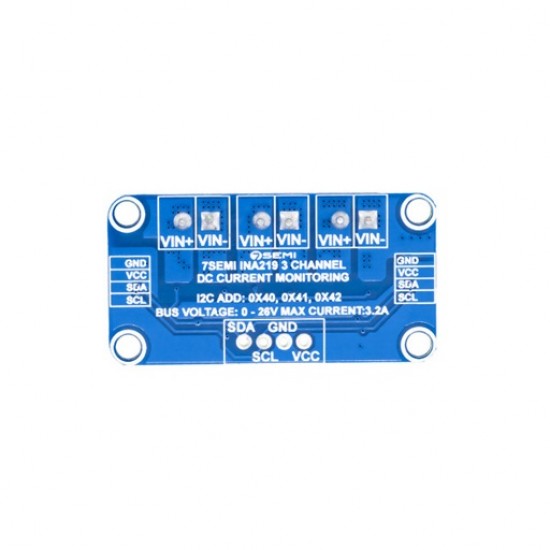

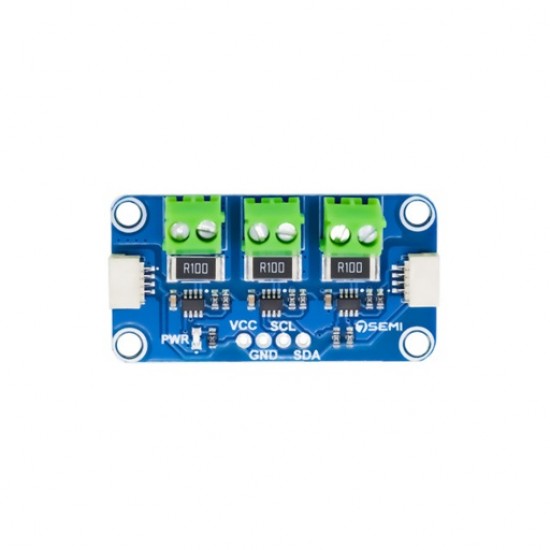

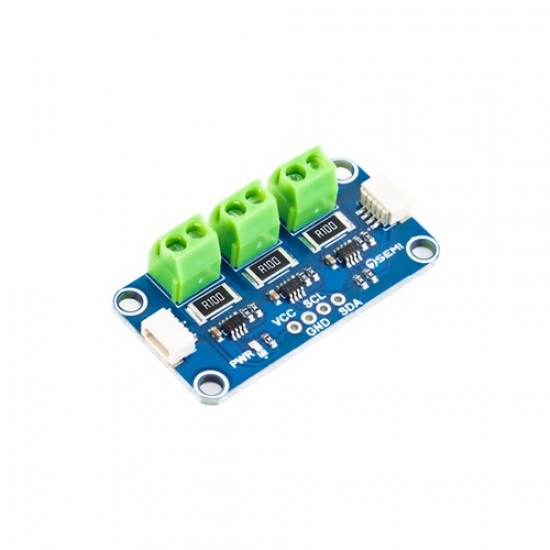

INA219 3-Channel DC Current Sensor Breakout - 26V 3.2A Max

INA219 3-Channel DC Current Sensor Breakout: Unleash Precise Power Monitoring Capabilities

The 7Semi INA219 3-Channel DC Current Sensor Breakout empowers you with comprehensive and accurate monitoring of direct current (DC) across three channels. This versatile board caters to a wide range of applications, making it an invaluable tool for engineers, hobbyists, and anyone seeking to gain deeper insights into their system's power consumption.

Datasheet

Unparalleled Versatility

Multi-channel monitoring: Simultaneously track DC current on up to three independent channels, providing a holistic view of your system's power usage.
Extensive measurement range: Accurately measure currents up to 3.2 Amps and voltages ranging from 0 to 26 Volts DC, covering a broad spectrum of applications.
Detailed power analysis: Gain valuable insights beyond just current by measuring both bus voltage and power, allowing for comprehensive power consumption calculations.

Exceptional Accuracy and Flexibility

High-precision readings: Benefit from industry-leading accuracy of up to 0.5%, ensuring reliable and trustworthy data for informed decision-making.
Seamless integration: The I2C communication interface simplifies connection with microcontrollers and other digital systems, streamlining integration into your existing projects.
Customizable configuration: Leverage 16 programmable addresses to connect multiple boards without addressing conflicts, enhancing scalability for complex setups.
Convenient connectivity: Two Quiik I2C ports provide additional connection options for flexible integration into your development environment.

Ideal Applications

Battery management systems: Gain crucial insights into battery health, optimize charging/discharging cycles, and extend battery life.
Motor control: Precisely monitor motor current draw to ensure efficient operation, prevent overloading, and optimize performance.
Power supply monitoring: Diagnose power supply issues, identify inefficiencies, and ensure stable voltage delivery throughout your system.
Internet of Things (IoT) projects: Integrate real-time power monitoring capabilities into your IoT devices for enhanced functionality and data-driven decision-making.

Specifications

Sensor IC: INA219 Current/Power Monitor
Number of Channels: 3 Independent Channels
Bus Voltage Range: 0V to 26V DC
Maximum Current: Up to 3.2A per Channel
Current Resolution: Up to 0.8mA
Measurement Type: Voltage, Current, and Power
Interface: I²C
I²C Addresses: Up to 16 Programmable Addresses
Logic Voltage: 3.3V / 5V Compatible
Sense Resistor: 0.1Ω, 1% Precision (Typical)
ADC Resolution: 12-bit
Monitoring Method: High-Side Current Sensing
Power Calculation: Onboard Power Computation
Connectivity: Header Pins / Qwiic Compatible (Variant Dependent)
Applications: Battery Monitoring, Power Management, Motor Control, IoT Devices, Energy Monitoring

Package Includes

1x INA219 3-Channel DC Current Sensor Breakout - 26V 3.2A Max
