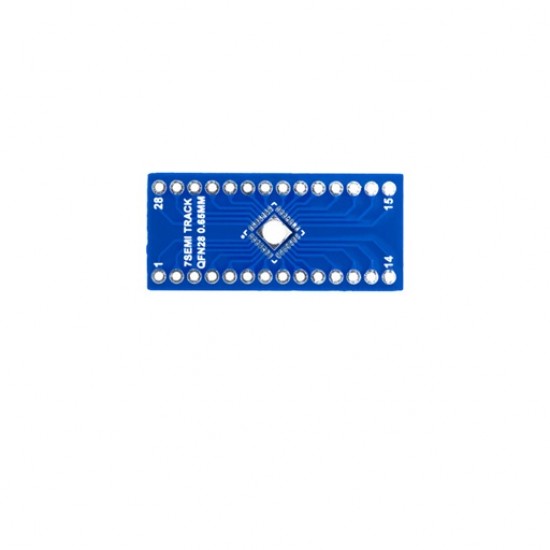

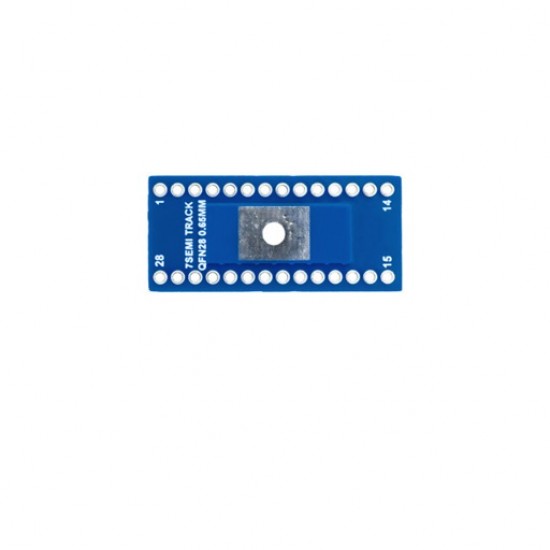

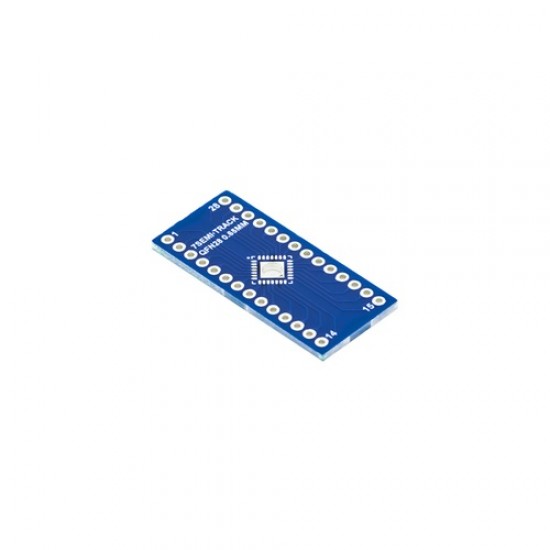

7Semi QFN28 Adapter Board - SMD to 28 Pin DIP
The 7Semi QFN-28 SMD to DIP Adapter Board is designed to convert standard QFN-28 (28-pin) IC packages into a 2.54mm (0.1") DIP format, allowing easy use with breadboards and prototyping systems.
This adapter supports QFN-28 ICs with standard footprint and pitch, ensuring proper alignment and reliable soldering. It is ideal for testing and developing circuits using compact microcontrollers without requiring a custom PCB.
Features
- Designed specifically for QFN-28 (28-pin) IC packages
- Converts to standard 2.54mm DIP spacing
- Compatible with TQFN, VQFN, DQFN (28-pin variants)
- Accurate footprint alignment for proper IC placement
- Clear Pin 1 marking and numbering
- Dual-row breakout for easy wiring
- Breadboard compatible design
- Strong solder pads for reliable connections
- Ideal for prototyping, testing, and development
- Compatibility: Standard QFN-28 footprint ICs only
- Not Supported: QFN-20, QFN-32, BGA, LGA or non-QFN packages
Specifications
- No of pins: 28 pin with pitch 0.5mm

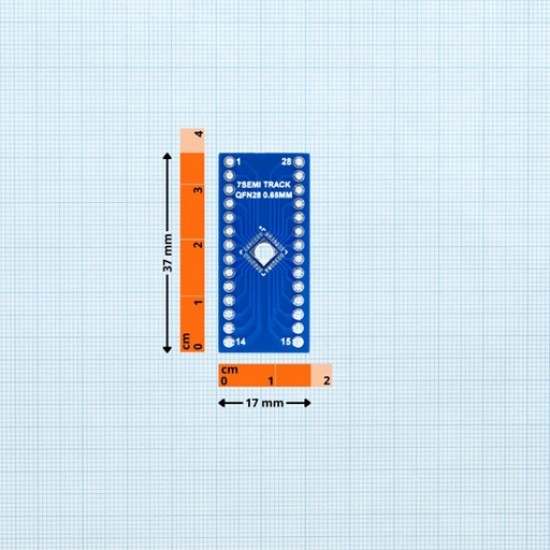

- Dimension: 37mm x 17mm x 1.6mm
- Category of product: SMD to DIP adapter
Package Includes
- 1x 7Semi QFN28 Adapter Board - SMD to 28 Pin DIP
