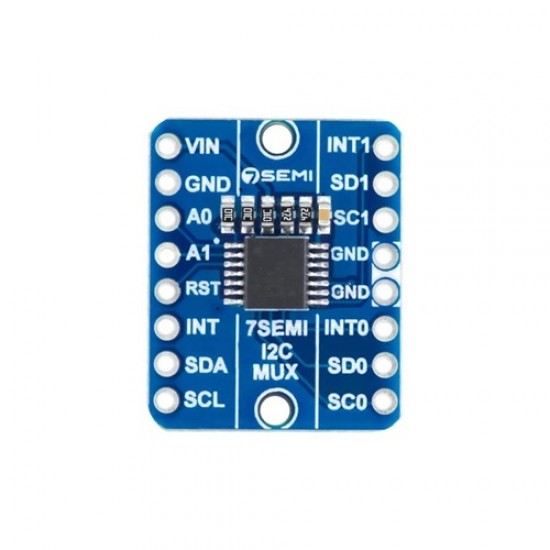

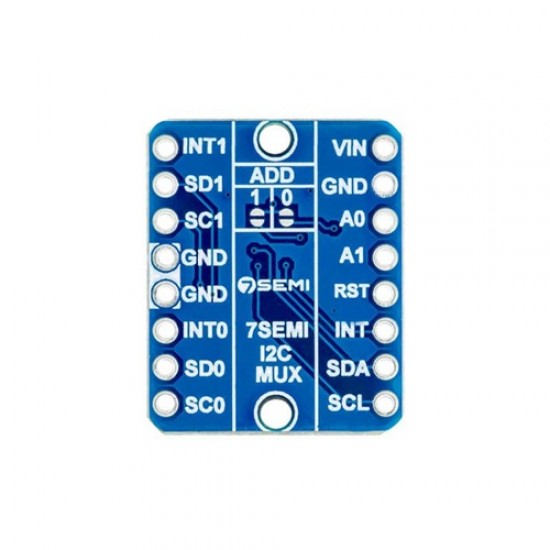

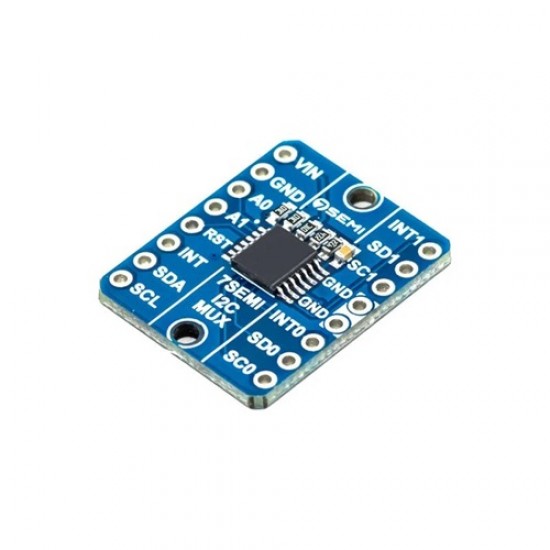

7Semi- TCA9543A I2C Multiplexer Board – 2-Channel I2C Bus Switch

    The 7SEMI TCA9543A I2C MUX Board is a low-voltage, 2-channel I²C bus switch designed for applications where address conflicts or I²C expansion is needed. Built around Texas Instruments’ TCA9543A, this board allows a single I2C master to control multiple slave buses with independent interrupts and reset support.

    With support for 1.65V–5.5V logic, voltage-level translation, and hot-swap tolerance, this compact breakout is ideal for sensor networks, multi-sensor gateways, debugging tools, and industrial monitoring.


    Datasheet


    Features

    • 2-Channel Bidirectional I²C Switching
    • Voltage Translation between 1.8V, 2.5V, 3.3V, and 5V buses
    • I²C Controlled Channel Selection with dedicated address bits
    • Interrupt Support: Two independent interrupt inputs (INT0, INT1) and one combined output
    • RESET Input to recover from stuck bus scenarios
    • Compatible with SMBus and Standard/Fast I2C (up to 400kHz)
    • 5.5V-Tolerant Inputs with low standby current
    • Qwiic-Compatible Header Pins
    • Operating Voltage: 1.65V – 5.5V


    Specifications

    • IC: TCA9543APWR
    • Bus Channels: 2 (SC0/SD0, SC1/SD1)
    • Control Interface: I²C
    • Address Select: A0, A1 pins (up to 4 devices on 1 bus)
    • Interrupt Lines: INT0, INT1 (input), INT (output)
    • Reset Input: Active-low RESET pin
    • Operating Voltage: 1.65V to 5.5V
    • Max Clock Frequency: 400kHz (Fast-mode I²C)
    • Board Dimensions: Approx.21.76mm x17.66mm
    • Board Weight: 1G


    Applications

    • Connect multiple I²C devices with the same address on a single controller
    • Interface with multi-sensor arrays in smart farming, weather stations, or industrial IoT
    •  Perform I²C bus isolation and debugging during development and testing
    • Control separate smart home or building automation zones with identical sensors
    • Expand I²C peripherals in robots, drones, and embedded systems
    • Switch between I²C-controlled displays, actuators, and EEPROM banks


    Package Includes

    • 1x TCA9543A I2C MUX Board
