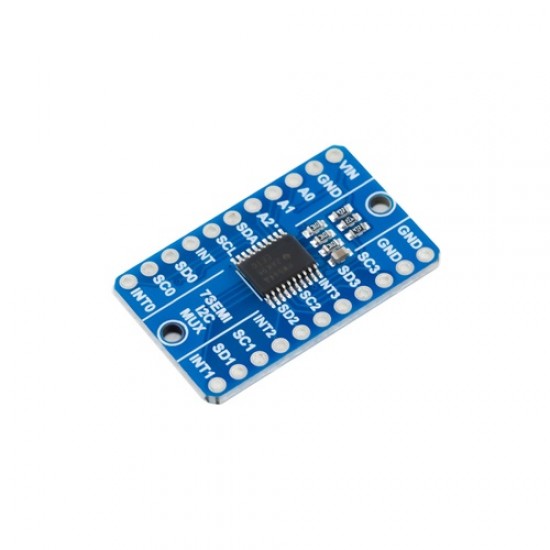

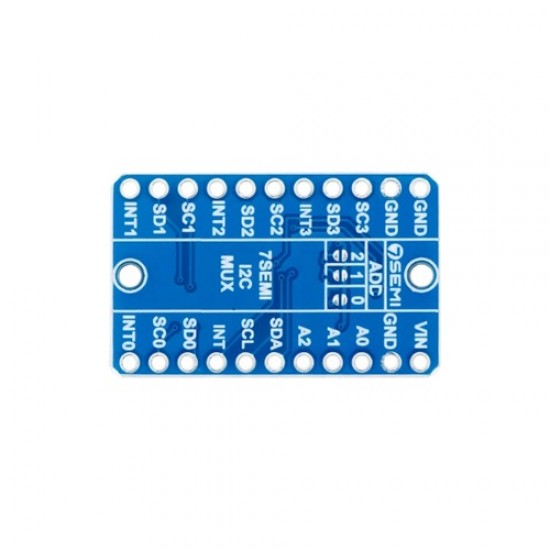

7semi TCA9544A I2C Multiplexer Board – 4-Channel I2C Bus Switch
Simplify I²C expansion and address conflicts with the 7SEMI TCA9544A I²C MUX Board. This 4-channel bidirectional I²C/SMBus multiplexer supports seamless switching between multiple slave devices and offers advanced interrupt logic, reset functionality, and voltage-level translation.
Based on the reliable TI TCA9544A IC, the board enables a single I²C master to communicate with up to four downstream I²C buses, each with its own interrupt line (INT0–INT3). This is especially useful in projects involving identical sensor devices, data acquisition systems, or industrial I/O multiplexing.
Features
- 4-Channel Bidirectional I²C Switching
- Voltage Translation between 1.8V, 2.5V, 3.3V, and 5V buses
- I²C Controlled Channel Selection with dedicated address bits
- Interrupt Support: independent interrupt inputs (INT0, INT1, INT2, INT3) and one combined output
- RESET Input to recover from stuck bus scenarios
- Compatible with SMBus and Standard/Fast I2C (up to 400kHz)
- 5.5V-Tolerant Inputs with low standby current
- Operating Voltage: 1.65V – 5.5V
Specifications
- IC: TCA9544APWR
- Bus Channels: 4 (SC0/SD0 to SC3/SD3))
- Control Interface: I²C
- Address Select: A0, A1, A2 (support 8 device combinations)
- Interrupt Lines: INT0–INT3 (inputs), INT (combined output)
- Reset Input: Active-low RESET pin
- Operating Voltage: 1.65V to 5.5V
- Max Clock Frequency: 400kHz (Fast-mode I²C)
- Board Dimensions: Approx.28.67mm x17.78mm
- Board Weight: 2g
Package Includes
- 1x 7semi TCA9544A I2C Multiplexer Board – 4-Channel I2C Bus Switch
