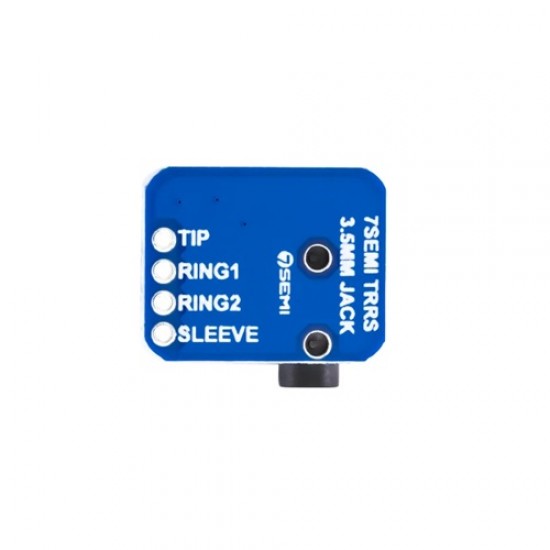

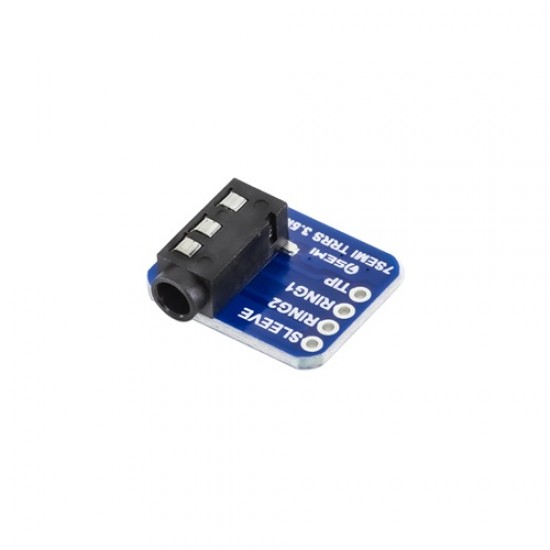

7Semi TRRS 3.5mm Audio Jack Breakout
Seamless Audio Integration with TRRS 3.5mm Audio Jack Breakout: Connect Audio and Microphone Channels with Precision
Enhance your audio electronics projects with the TRRS 3.5mm Audio Jack Breakout, designed to offer reliable access to left audio, right audio, microphone input, and ground through a compact, easy-to-solder module. This breakout board is tailored for applications where space, functionality, and connectivity are paramount—perfect for embedding into smart devices, DIY audio projects, and professional-grade equipment. Its compatibility with smartphones, tablets, and laptops makes it highly versatile, supporting a wide range of use cases from voice-controlled systems to custom audio interfaces. Built for developers, audio engineers, and hobbyists, this breakout facilitates seamless integration between analog audio signals and digital processing units such as microcontrollers and audio codecs. Whether you're building a voice recognition platform or upgrading your portable sound system, this TRRS breakout module offers the dependable performance and adaptability you need.
Features
- Four-Channel Access: Supports left audio, right audio, microphone input, and ground through one compact connector
- Universal Compatibility: Ideal for smartphones, tablets, laptops, and any TRRS-compatible devices
- Solder-Friendly Design: Features clearly marked solder pads for quick and easy integration into PCBs or breadboards
- Compact Form Factor: Small size ensures minimal footprint in embedded systems or space-constrained enclosures
- Ideal for Audio Projects: Perfect for creating voice recognition systems, audio playback/recording setups, and communication devices
- Durable Construction: High-quality connector and PCB ensure long-lasting and stable electrical connections
- Versatile Application: Supports both hobbyist and professional projects, including prototyping and product development
Specifications
- Jack: TRRS 3.5mm Female
Package Includes
- 1x 7Semi TRRS 3.5mm Audio Jack Breakout
