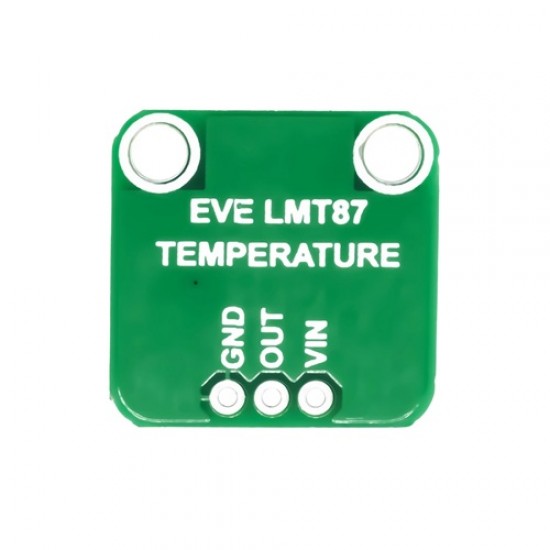

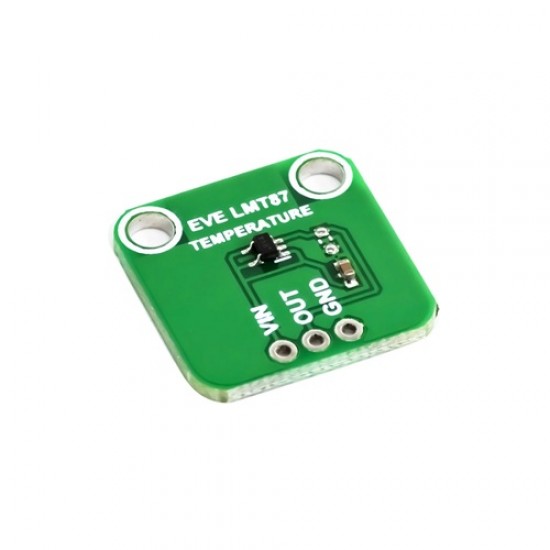

7 Semi LMT87 Analog Temperature Sensor Breakout
The 7Semi LMT87 Analog Temperature Sensor Breakout is a precision-engineered module designed to deliver accurate and consistent temperature measurements across a wide range of environments. Powered by a highly sensitive CMOS sensor, it offers exceptional linearity with a typical accuracy of ±0.4°C and a maximum deviation of ±2.7°C. This compact and energy-efficient breakout board supports a wide operating temperature range from –50°C to 70°C, ensuring dependable performance in both industrial and consumer-grade applications.
Operating on a low 2.7V supply with an ultra-low 5.4 µA quiescent current, the LMT87 breakout is ideal for power-sensitive designs, including portable, battery-operated devices such as drones, sensor nodes, and remote monitoring systems. Its rapid power-on time of just 0.7 ms enables efficient power-cycling, which helps extend battery life without compromising data accuracy or responsiveness. The analog output voltage inversely tracks temperature changes, simplifying integration with a wide array of microcontrollers for real-time monitoring and thermal management.
Features
- High Accuracy Sensor Performance: ±0.4°C typical accuracy with a consistent linear analog output, ideal for precision measurement.
- Wide Temperature Range: Operational from –50°C to 70°C, making it suitable for industrial and outdoor environments.
- Low Power Consumption: Consumes just 5.4 µA of quiescent current, enhancing energy efficiency in battery-powered applications.
- Fast Response Time: Features a rapid 0.7 ms power-on time, allowing for efficient power cycling and near-instant temperature readings.
- Analog Output Voltage: Output range from 210 mV to 1.75V, directly proportional to temperature, easy to interface with microcontrollers.
- Compact and Lightweight Design: Small footprint ideal for integration into compact electronic systems or space-constrained environments.
- Robust Electrical Protection: Short-circuit-protected output and ±50 µA push-pull drive capability ensures durability in diverse operating conditions.
- Wide Supply Voltage Compatibility: Operates seamlessly between 2.7V and 5.5V, even under unstable power conditions.
Specifications
- Accuracy: +-0.4C Typical
- Temperature Range: –50C to 70C
- Operating Voltage: 2.7V to 5.5V
- Average Sensor Gain: -13.6 mV/C

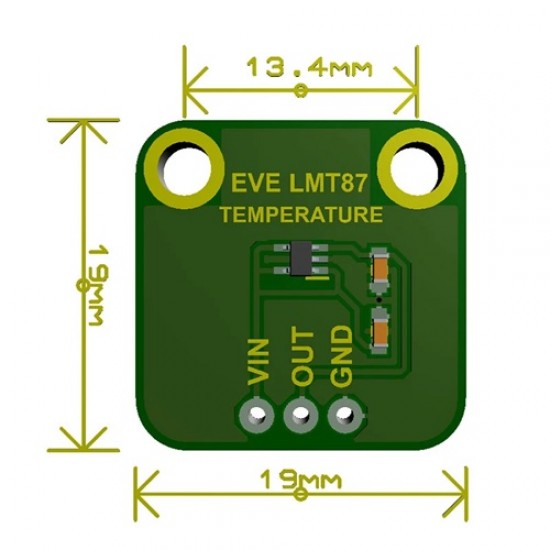

- Size: L=19mm W=19mm H=2.43mm
Package Includes
- 1x 7 Semi LMT87 Analog Temperature Sensor Breakout
