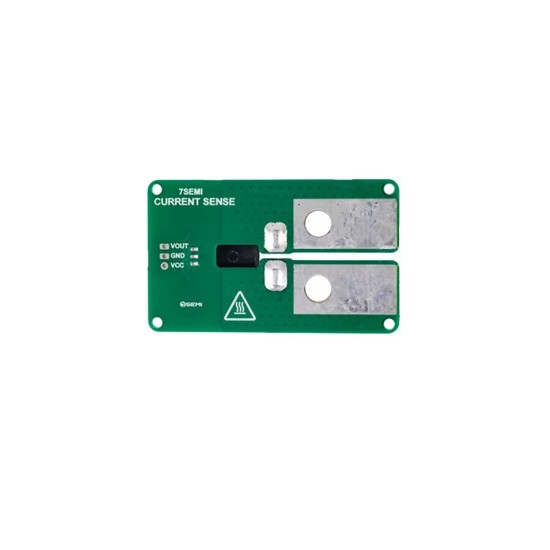

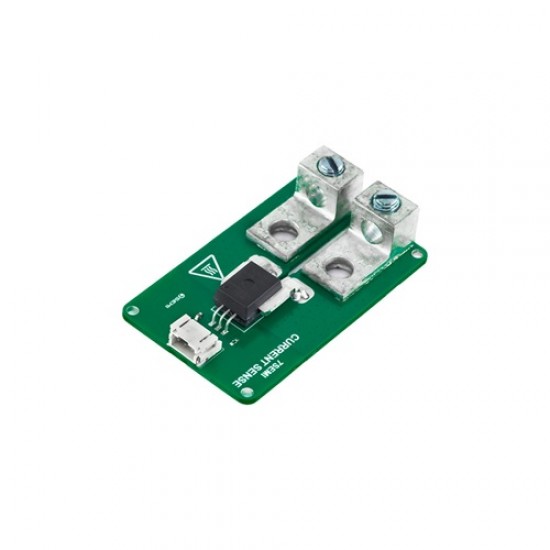

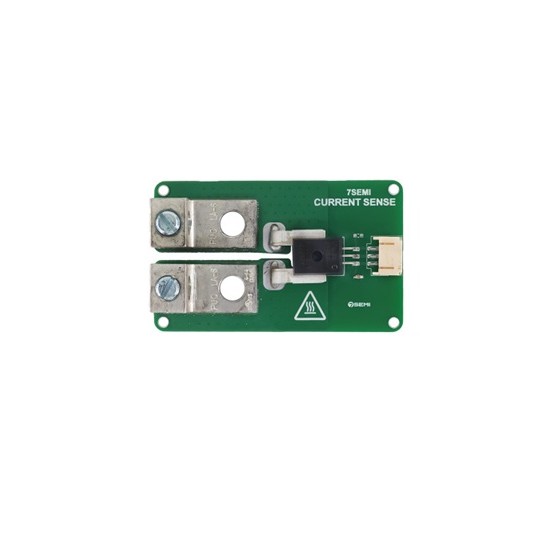

ACS772 50A 200KHz Current Sensor, Automotive Grade

The 7Semi ACS772 is an automotive-grade current sensor capable of measuring up to 50A with a 200kHz bandwidth. It features a 100 µΩ internal conductor resistance, ensuring minimal power loss, and provides reinforced galvanic isolation for high-side current sensing in high-voltage systems. Operating from a 5V supply, it delivers a linear analog output proportional to AC or DC currents, making it suitable for applications like motor control and power supplies.

Datasheet

Features

Unmatched Precision: Achieve +/-2.1% accuracy over the entire lifetime of the IC, from room to hot temperatures, ensuring consistent and reliable results.
Wide Current Sensing Range: Monitor currents from 50A to 400A with ease, making it suitable for a wide range of applications, including OBCs, DC/DC converters, inverters, motor control, load detection, and power supplies.
Ultra-Low Power Loss: Minimize energy wastage with the sensor's remarkably low 100μΩ internal conductor resistance, contributing to improved overall system efficiency.
Reinforced Galvanic Isolation: Safely monitor high-side currents in high-voltage systems, reducing the need for costly isolation components.
Superior Noise Performance: Proprietary amplifier and filter design techniques ensure exceptional noise performance, even in demanding environments with high dV/dt signals.
Digitally Programmed Compensation: Factory-trimmed gain and offset guarantee optimal accuracy over the full operating temperature range.
Compact & Easy Mounting: The small package size and convenient mounting options make it a breeze to integrate into your project.

Specifications

Current Measurement Range: ±50A (Bidirectional)
Bandwidth: 200 kHz
Supply Voltage: 5V DC
Response Time: Typical 2.5 µs
Sensitivity: ~40 mV/A
Internal Conductor Resistance: 100 µΩ
Dielectric Strength: Up to 4800 Vrms
Accuracy: Up to ±2.1% lifetime accuracy

Package Includes

1x ACS772 50A 200KHz Current Sensor, Automotive Grade
