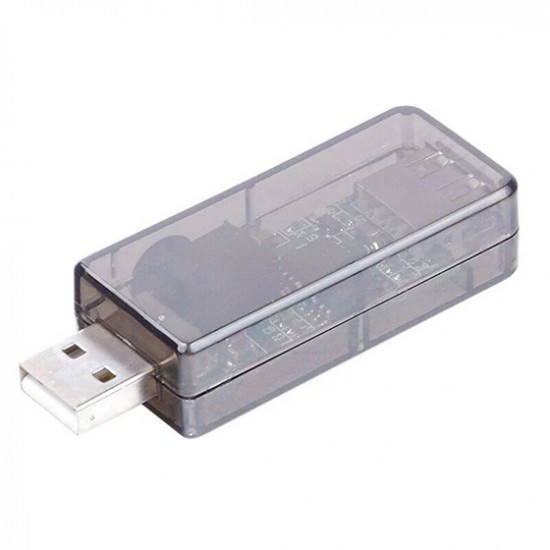

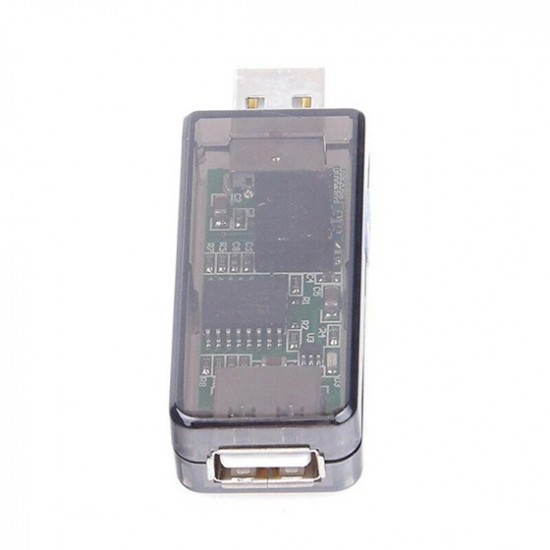

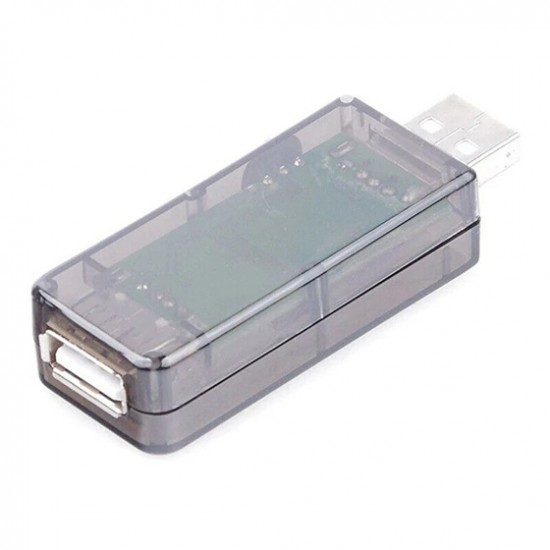

ADuM3160 USB Digital Signal & Audio Power Isolator – High-Speed Isolation Module for Noise-Free Data Transmission
The ADuM3160 USB Digital Signal & Audio Power Isolator is a high-performance isolation module designed to protect sensitive electronics and ensure reliable, noise-free data transmission. Built around the ADuM3160 isolation chip, this module provides full-speed USB signal isolation (up to 12 Mbps), making it ideal for applications involving audio interfaces, measurement equipment, medical devices, and embedded development systems.
By electrically isolating the USB data lines and power supply, the module effectively eliminates ground loops, reduces signal interference, and protects connected devices from voltage spikes and surges. It is especially useful in audio systems where clean signal integrity is critical, helping to minimize unwanted noise and hum.
The compact and easy-to-use design allows seamless integration into USB setups, requiring no additional drivers for operation. With robust isolation performance and stable data transfer, this module is a reliable solution for enhancing safety, improving signal quality, and extending the lifespan of connected devices.
Features
- Supports USB full-speed communication up to 12 Mbps
- Provides complete electrical isolation between host and device
- Effectively eliminates ground loops and reduces signal noise
- Enhances audio signal clarity by minimizing interference and hum
- Built with ADuM3160 high-performance isolation chip
- Protects connected devices from voltage spikes and surges
- Plug-and-play operation with no driver installation required
- Compact and lightweight design for easy integration
- Suitable for audio systems, measurement instruments, and embedded applications
- Improves system safety and reliability in sensitive electronic setups
Specifications
- Isolation Chip: ADuM3160
- USB Standard: USB 2.0 Full-Speed
- Data Transfer Rate: Up to 12 Mbps
- Isolation Voltage: Up to 2.5 kV (RMS)
- Power Supply: 5V USB input (host side)
- Output Power: Isolated 5V (device side, depending on module design)
- Signal Isolation: Bidirectional USB D+ and D− lines
- Supported Modes: Low-Speed (1.5 Mbps) and Full-Speed (12 Mbps)
- Connector Type: USB Type-A (input) to USB Type-A / Type-B / Micro USB (varies by module)
- Operating Temperature: -40°C to +85°C
- ESD Protection: Integrated (varies by design)
- Application Areas: Audio systems, USB debugging, industrial control, medical equipment, measurement instruments
Package Includes
- 1x ADuM3160 USB Digital Signal & Audio Power Isolator
