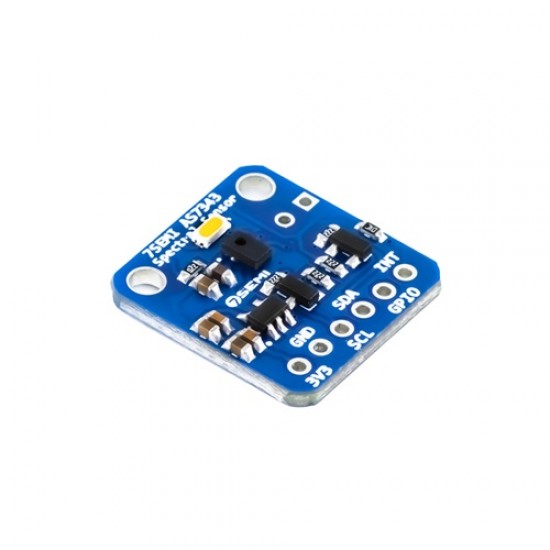

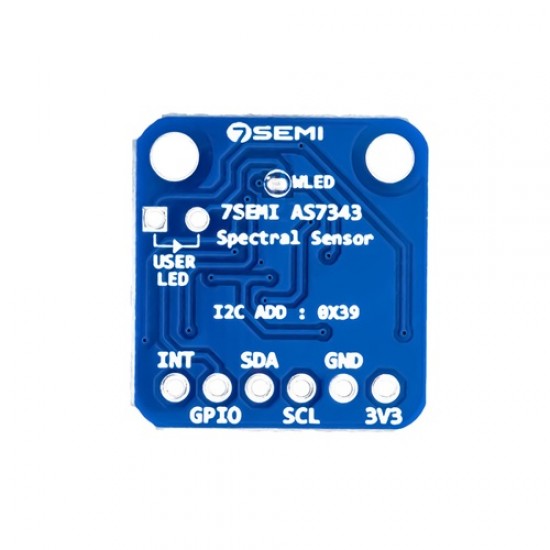

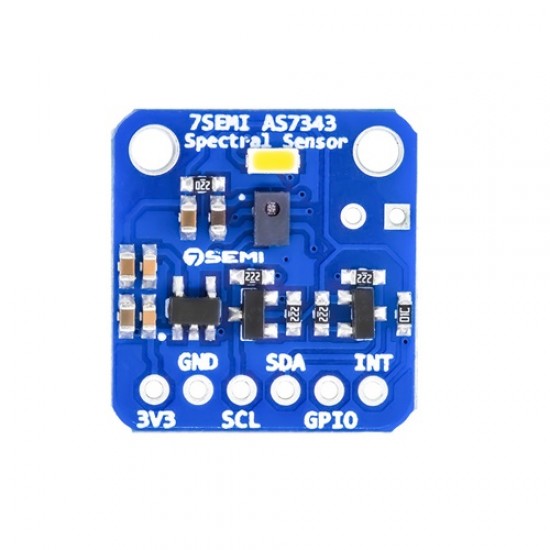

AS7343 14-Channel Spectral Sensor Module
The 7SEMI AS7343 Spectral Sensor Module is based on the ams OSRAM AS7343, a compact multi-channel sensor that provides 14 independent spectral channels spanning UV, visible, and near-IR ranges (350–1000 nm).
Designed for color analysis, material classification, light calibration, and spectral fingerprinting, this breakout board makes integration easy with a 3.3 V I²C interface, breakout headers, and mounting holes. It also features an onboard user LED and interrupt pin for event-driven designs.
Features
- 14-channel multi-spectral light sensing for advanced color and spectrum analysis
- Wide spectral detection range from approximately 380nm to 1000nm (Visible + Near Infrared)
- Includes multiple VIS channels, NIR channel, Clear channel, and Flicker detection channel
- Supports XYZ color measurement for precise color evaluation
- High-precision optical interference filter technology for accurate spectral readings
- Built-in 6 parallel ADCs for fast signal acquisition
- Integrated flicker detection for 50Hz / 60Hz ambient light monitoring
- Supports reflective, transmissive, and emissive measurements
- I²C digital communication interface for easy MCU integration
- Integrated LED driver and programmable GPIO support
- Low-power operation with configurable sleep modes
- Compact module suitable for embedded and portable applications
- Ideal for color matching, liquid analysis, horticulture sensing, and spectral reconstruction
Specifications
- Wavelength Range: 350 nm to 1000 nm
- Spectral Channels: 14 (13 discrete + 1 clear)
- ADC Resolution: 16-bit
- I²C Address: 0x39 (fixed)
- Interface: I²C (up to 1 MHz)
- Supply Voltage: 2.7 V – 3.6 V (3.3 V typical)
- Operating Temperature:–30 °C to +85 °C
- Mounting holes: 2× M3
- Dimensions: ~19.05mm × 17.94 mm PCB.
Applications
- Color measurement & spectral analysis
- Ambient light sensing & calibration
- Material classification / sorting
- Optical spectroscopy (portable devices)
- Agriculture, health & wearable monitoring
- Display and LED color calibration
Package Includes
- 1x AS7343 14-Channel Spectral Sensor Module
