DF ROBOT 4K USB Camera Module with Sony IMX415 Sensor (120° Wide Vision) (MPN:FIT1044)

DF ROBOT 4K USB Camera Module with Sony IMX415 Sensor (120° Wide Vision)

IMX415 4K 8MP 1/2.8" 2.6mm 120° USB UVC Camera is a wide-angle 4K imaging module designed for expansive scene capture. Built with a 1/2.8-inch CMOS IMX415 sensor, this USB UVC camera delivers 8MP 3840×2160 Ultra HD resolution and supports smooth 1080P video up to 60FPS. The 120° field of view, driver-free USB 2.0 interface, and compact module form factor make the board suitable for panoramic monitoring, wide-scene AI vision, and maker education projects where broad coverage and straightforward USB setup are both important.

User Manual / Datasheet / Example Codes Etc.

Features

• 1/2.8-inch CMOS imx415 8MP image sensor
• 3840×2160 Ultra-HD resolution for 4K image capture
• 120° diagonal ultra-wide field of view for expansive scene coverage
• MJPEG output up to 1920 x 1080 (1080P)@60FPS
• USB 2.0 driver-free UVC interface for plug-and-play integration
• Compatible with Windows, Android, Linux, and Wince systems
• Suitable for wide-scene AI vision, panoramic surveillance, and Maker education
• Compact 38mm x 38mm module with 4pin-2.0mm interface

Specification

• 1/2.8-inch CMOS imx415 8MP image sensor
• 3840×2160 Ultra-HD resolution for 4K image capture
• 120° diagonal ultra-wide field of view for expansive scene coverage
• MJPEG output up to 1920 x 1080 (1080P)@60FPS
• USB 2.0 driver-free UVC interface for plug-and-play integration
• Compatible with Windows, Android, Linux, and Wince systems
• Suitable for wide-scene AI vision, panoramic surveillance, and Maker education
• Compact 38mm x 38mm module with 4pin-2.0mm interface
• FOV(deg)@INF: Diagonal 120°±5° Horizontal 115°±5° Vertical 76°±3°
• Lens: 650nmIR (EFL:2.6mm F/no:2.5)
• Shutter Type: Electronic Rolling shutter
• Operating Voltage: USB DC +5V Supply
• Operating Current: 170mA-250mA±5mA
• Operating Temperature: -15℃ ~ 60℃
• Storage Temperature: -20℃ ~ 85℃
• Humidity: 0 ~85%
• Supported OS: Windows, Android, Linux, Wince
• Interface: 4pin-2.0mm

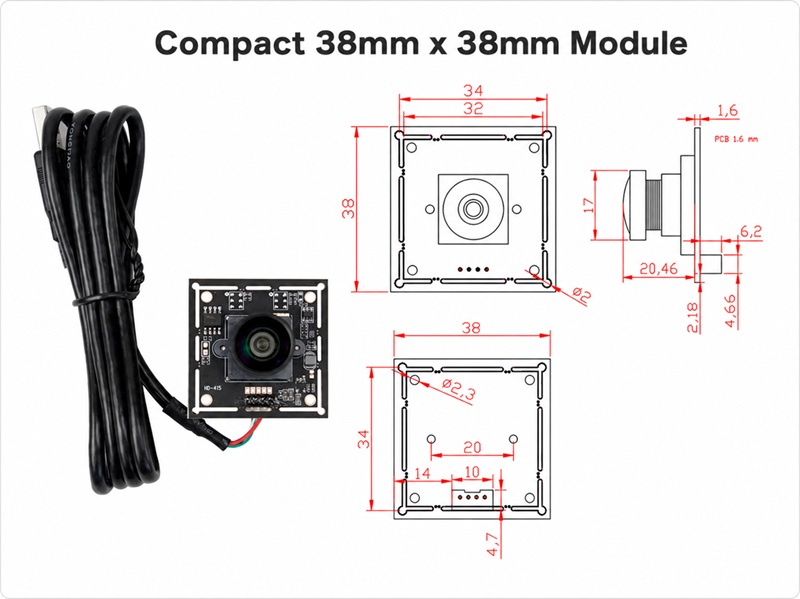

• Module Size: 38mm x 38mm 16.4±0.2mm

Applications

• Wide-scene AI visual recognition
• Panoramic surveillance
• Robotic vision
• Maker education projects
• Development-board camera systems

Package Includes

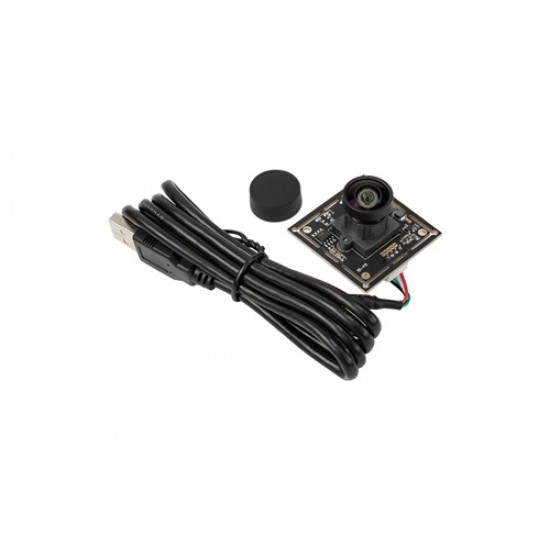

• IMX415 4K 8MP 1/2.8" 2.6mm 120° USB UVC Camera ×1
• 1m USB Cable × 1
