Name: DF ROBOT 4K USB Camera Module with Sony IMX678 Sensor (1/1.8" Large Sensor, 95° Wide Angle) (MPN:FIT1048)
Brand: DF ROBOT
SKU: 08530
Price: 9349.00 INR
Availability: OutOfStock

DF ROBOT 4K USB Camera Module with Sony IMX678 Sensor (1/1.8" Large Sensor, 95° Wide Angle) (MPN:FIT1048)

New

DF ROBOT

DF ROBOT 4K USB Camera Module with Sony IMX678 Sensor (1/1.8" Large Sensor, 95° Wide Angle) (MPN:FIT1048)

This product qualifies for Free Surface Shipping !

All orders with value above 1999+GST are eligible for free delivery in Surface mode. (Not applicable for B2B offline orders)

Based on 0 reviews. - Write a review

₹9,349.00

₹7,922.88 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 79
B2B GST Credit Available

Price in reward points: 7922

Stock: 0 in Stock
SKU: 08530
Delivery Time
Bulk & B2B RFQ

Buy Now NOTIFY WHEN AVAILABLE

Plan to Buy Later ? Add to Wish List

DF ROBOT 4K USB Camera Module with Sony IMX678 Sensor (1/1.8" Large Sensor, 95° Wide Angle)

This flagship 4K USB camera is powered by the Sony IMX678 1/1.8" ultra-large format CMOS image sensor, delivering a stunning 8MP resolution (3840×2160). It features a 95° optimal Field of View (FOV) and supports high-speed capture up to 60FPS at 1080P and lower resolutions for silky-smooth video performance.

User Manual / Datasheet / Example Codes Etc.

This item is available in multiple variants :

DF ROBOT 4K USB IMX415 Camera 95° (MPN:FIT1043) : Link
DF ROBOT 4K USB Camera IMX415 120° (MPN:FIT1044) : Link
DF ROBOT 4K USB Camera IMX274 97° (MPN:FIT1045) : Link
DF ROBOT 4K USB Camera 73° (MPN:FIT1047) : Link
DF ROBOT 4K USB Camera 130° (MPN:FIT1046) : Link
DF ROBOT 4K USB Camera 95° (MPN:FIT1048) : Link

Features

8MP Sony IMX678 1/1.8" CMOS sensor for ultra-high-definition 4K imaging
95° wide FOV with 650nm IR lens for expansive, detailed scene capture
Driver-free USB 2.0 (UVC) interface for plug-and-play on Windows, Linux, Android
High dynamic range (HDR) and superior low-light performance
Versatile output formats: MJPEG and YUY2 with multiple resolution/frame rate options
Supports up to 60FPS at 1080P for silky-smooth video

Specifications

Sensor: 1/1.8-Inch CMOS IMX678 8MP
Resolution: 3840 x 2160
Pixel Size: 2.0μm x 2.0μm
FOV (deg) @ INF: Diagonal 95°±5°, Horizontal 90°±3°, Vertical 58°±3°

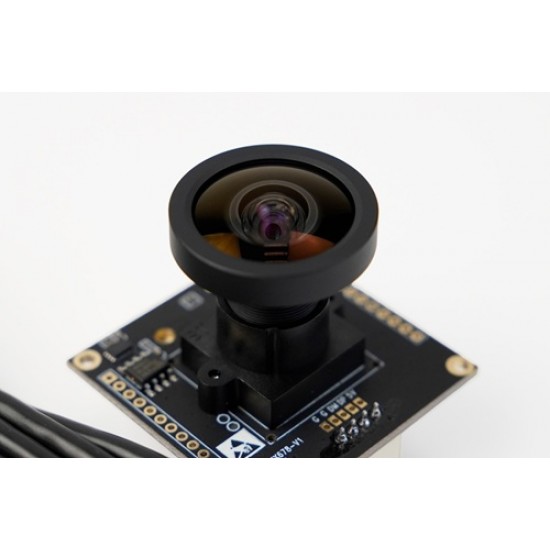

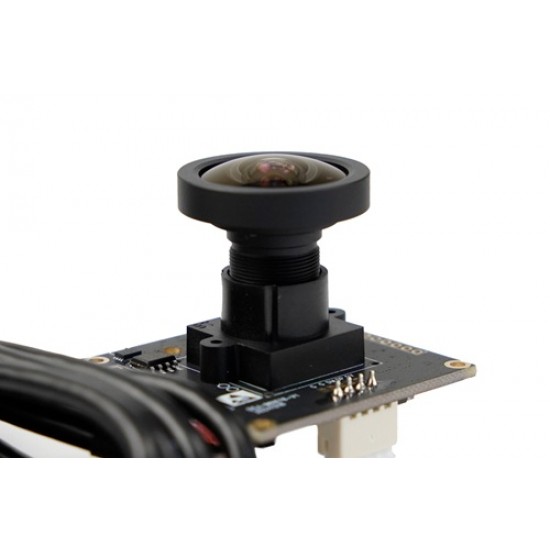

Lens: 650nm IR (EFL: 4mm, F/no: 2.8)
Shutter Type: Electronic Rolling Shutter
Operating Voltage: USB DC +5V Supply
Operating Current: 170mA - 260mA ±5mA
Operating Temperature: -15℃ ~ 60℃
Storage Temperature: -20℃ ~ 85℃
Humidity: 0 ~ 85%
Supported OS: Windows, Android, Linux, Wince
Interface: 4pin-2.0mm

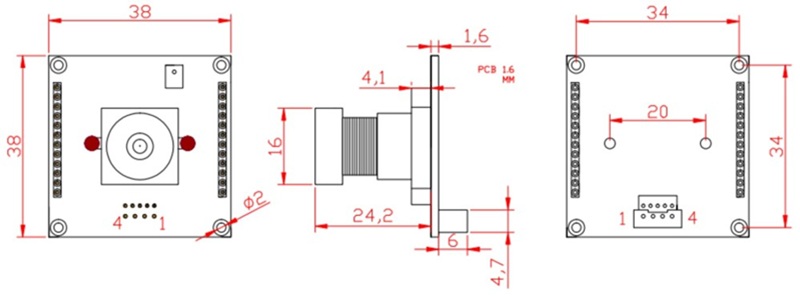

Module Size: 38mm x 38mm x 28±0.2mm

Applications

AI vision recognition and edge computing projects
HD surveillance and security monitoring systems
Professional video conferencing and streaming
High-end Maker education and STEM development
Robotics and drone first-person view (FPV) applications

Package Includes

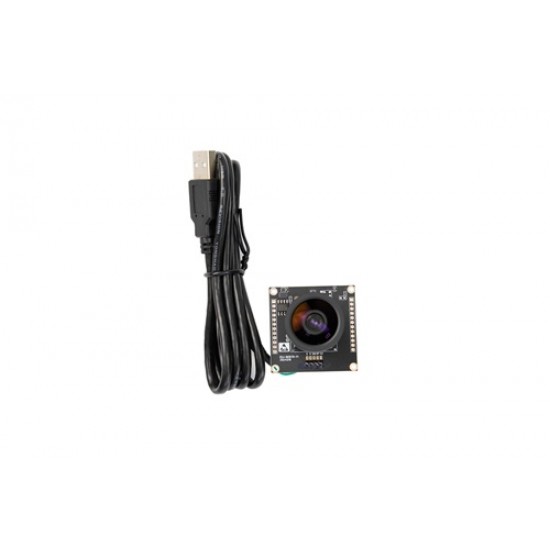

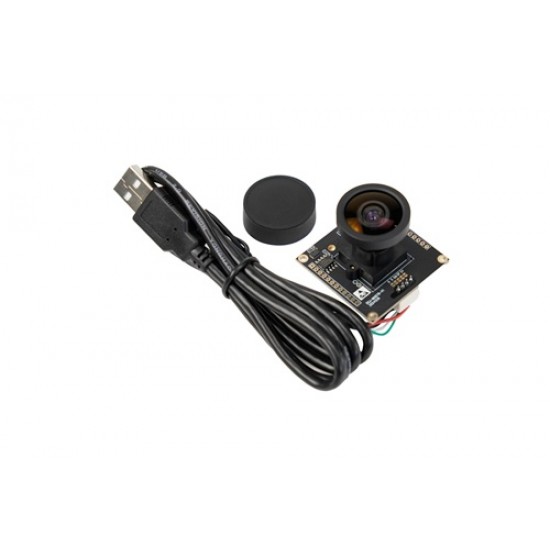

IMX678 4K 8MP 1/1.8" 4mm 95° USB UVC Camera x1
1m USB Cable x1
