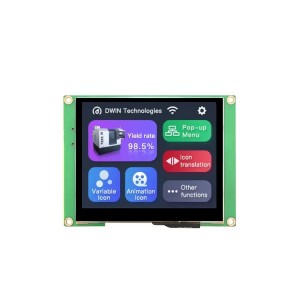

DWIN 3.5inch HMI SMART LCD, Resistive Touch, IPS TFT 320x240 280nit LCD Display, DMG32240C035_03WTR
This is an DWIN 3.5inch HMI SMART LCD, Resistive Touch, IPS TFT 320x240 280nit LCD Display. The Dwin 3.5inch Smart TFT LCD comes with Resistive touch, 320x240 resolution, 280nit brightness & 16.7M colors.
Features
- 3.5 inch based onT5L ASIC, IPS-TFT-LCD,16.7M Colors,24-bit, 320*240 pixel
- Resistive touch screen
- TTL/CMOS interface,10Pin_1.0mm;
- Download via SD card or on-line serial port;
- Friendly DWIN DGUS V7.624 GUIs Development Software;
- 3150~3225600bps, typical value of 115200bps;
- Wide viewing angle: 85°/85°/85°/85°(L/R/U/D) ;
- Seperate GUI and OS CPU, No code for GUI design . DWIN OS language or Keil C51 development mode for OS CPU.
Display Data
- Color : 16.7M（16777216） colors
- LCD Type : IPS, TFT LCD
- Viewing Angle : Wide viewing angle, 85°/85°/85°/85° (L/R/U/D)
- Resolution : 320×240
Touch Specifications
- Type : RTP (Resistive touch panel)
- Structure : ITO film + ITO glass
- Touch Mode : Support point touch and drag
- Surface Hardness : 3H
- Light Transmittance : Over 80%
- Life : Over 1,000,000 times touch
Brightness & Temperature
- Brightness : DMG32240C035_03WTR：280nit
- Working Temperature : -20℃~70℃
- Storage Temperature : -30℃~80℃
- Working Humidity : 10%~90%RH
Reliability Test
- Working Temperature : -20℃~70℃ (5V @ 60% RH)
- Storage Temperature : -30~80℃
- Working Humidity : 10%~90%RH, typical value of 60% RH
Interface
- Power Voltage : 4.5~5.5V
- Operation Current : VCC = +5V, Backlight on,170mA, VCC = +5V, Backlight off,60mA
- LCM interface FPC54_0.5mm, RGB interface
- Baudrate : 3150~3225600bps
- Output Voltage : Output 1, Iout = 1mA;3.0~3.3 V, Output 0, Iout =-1mA;0~0.3 V
- Input Voltage（RXD） : Input 1， Iin = 1mA；2.4~5.0V, Input 0， Iin = -1mA；0~0.5V
- User Interface : 10Pin_1.0mm latching socket for power supply and serial communication. Download rate(typical value): 12KByte/s
- Flash : 16MBytes NOR Flash, for fonts, pictures and audio files. Rewrite cycle: over 100,000 times
- Buzzer : 3V passive buzzer. Power: <1W
- SD interface : FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s
- Reserved module interface : Wi-Fi module: connect to the cloud platform to update remotely, USB module: download files by USB flash disk
- PGT05 interface : When product crashes by accident, you can use PGT05 to update DGUS kernel and make the product return to
