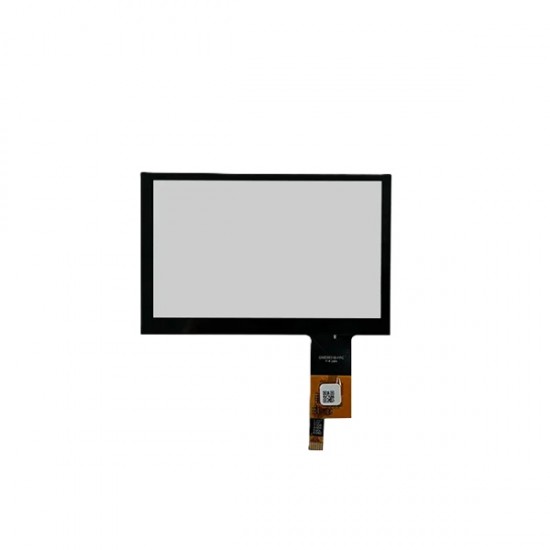

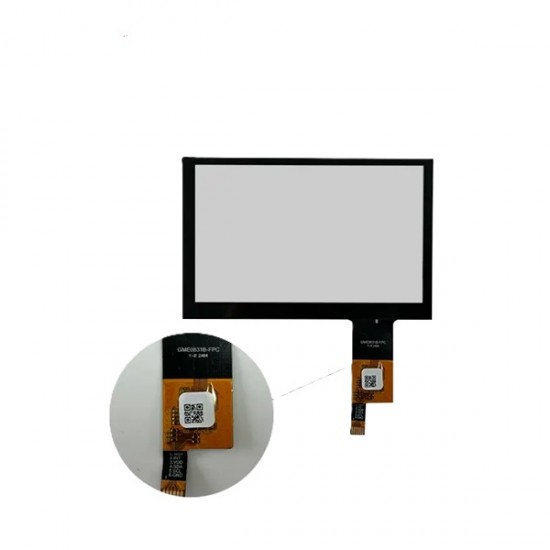

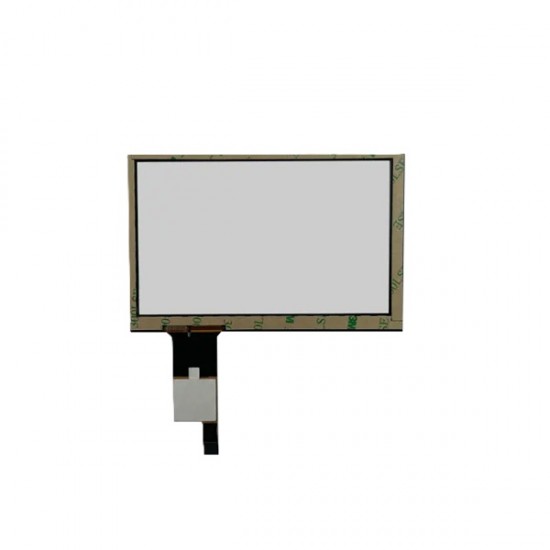

DWIN GME0831B 5 Inch Capacitive Touch Panel with GT911 Controller, I2C Interface, G+G Multi-Touch Screen

The DWIN GME0831B is a high-performance 5-inch capacitive touch panel designed for industrial HMI displays, embedded systems, smart control panels, and interactive touchscreen applications. Built with a durable G+G (Glass + Glass) structure, it offers excellent optical clarity, enhanced durability, and smooth multi-touch operation. The integrated GT911 touch controller communicates through an I2C interface, ensuring reliable and responsive touch performance for a wide range of microcontroller and display systems.

The panel features a 108.6 × 65.4 mm active viewing area within a compact 119.25 × 77.03 mm outline size, making it suitable for 5-inch TFT LCD integration. With support for multi-touch gestures, high light transmittance, and a robust 6H surface hardness rating, the GME0831B delivers an intuitive user experience while maintaining long-term durability in demanding environments.


Datasheet


Features

  • 5-inch capacitive touch panel
  • GT911 touch controller with I2C interface
  • G+G (Glass + Glass) construction
  • Multi-touch support
  • High transparency (≥85%)
  • Surface hardness: 6H
  • Active area: 108.6 × 65.4 mm
  • Operating temperature: -20°C to +70°C
  • Suitable for industrial and embedded touchscreen applications


Specifications

  • Model: GME0831B
  • Product Type: Capacitive Touch Panel
  • Touch Technology: Projected Capacitive (PCAP)
  • Touch Controller: GT911
  • Interface: I2C
  • Touch Points: Multi-Touch
  • Structure: G+G (Glass + Glass)
  • Panel Size: 5.0 Inch
  • Active Area (AA): 108.60 × 65.40 mm
  • Outline Dimension: 119.25 × 77.03 mm
  • Transparency: ≥ 85%
  • Surface Hardness: 6H
  • Operating Temperature: -20°C to +70°C
  • Storage Temperature: -30°C to +80°C
  • Power Supply: 3.3V Typical
  • Mounting Method: Air Bonding / OCA Bonding
  • Controller Communication: I2C Serial Interface


Package Includes

  • 1x  DWIN GME0831B 5-Inch Capacitive Touch Panel
  • 1 × GT911 Touch Controller
  • 1 × I2C Interface
