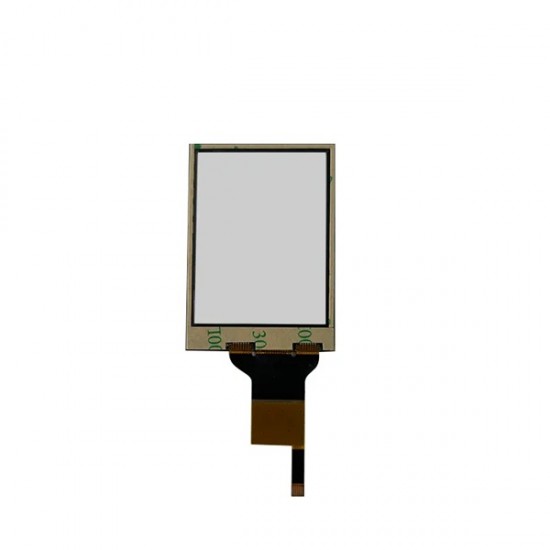

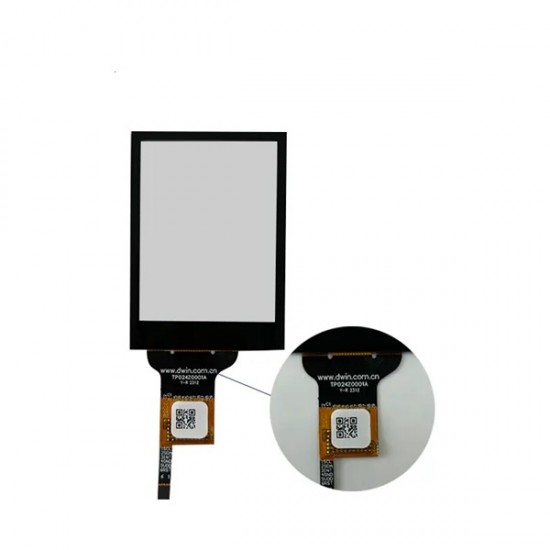

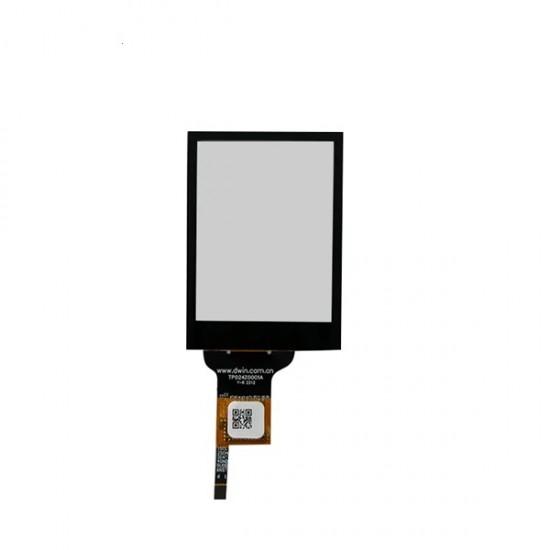

DWIN TP024Z0001A 2.4 Inch Capacitive Touch Panel with GT911 Controller, I2C Interface, G+G Multi-Touch Screen
The DWIN TP024Z0001A is a high-performance 2.4-inch capacitive touch panel designed for embedded systems, industrial control equipment, smart home devices, handheld instruments, and HMI applications. Featuring a durable Glass-to-Glass (G+G) construction and the reliable GT911 touch controller, this touch panel delivers precise multi-touch functionality, excellent optical clarity, and long-term durability. The I2C communication interface ensures easy integration with microcontrollers, SBCs, and display modules, making it an ideal solution for modern touch-enabled projects. Its compact form factor, high light transmittance, and robust surface hardness provide a responsive and user-friendly touch experience in demanding environments.
Features
- 2.4-inch projected capacitive touch panel
- GT911 touch controller with I2C interface
- G+G (Glass + Glass) structure for enhanced durability
- Supports multi-touch operation
- High transparency (≥85%) for clear display visibility
- Surface hardness rated at 6H for scratch resistance
- Compact and lightweight design
- Suitable for industrial, medical, consumer electronics, and HMI applications
- Supports custom cover glass options and branding services
Specifications
- Model: TP024Z0001A
- Touch Type: Capacitive Multi-Touch
- Controller IC: GT911
- Interface: I2C
- Structure: G+G (Glass + Glass)
- Display Size: 2.4 Inch
- View Area: 37.32 × 49.56 mm
- Outline Size: 42.70 × 60.10 × 1.63 mm
- Cover Lens Thickness: 0.7 mm
- Sensor Glass Thickness: 0.55 mm
- Surface Hardness: 6H
- Light Transmittance: ≥85%
- Operating Temperature: -20°C to +70°C
- Storage Temperature: -30°C to +80°C
Package includes
- 1x TP024Z0001A 2.4 Inch Capacitive Touch Panel with GT911 Controller, I2C Interface, G+G Multi-Touch Screen
