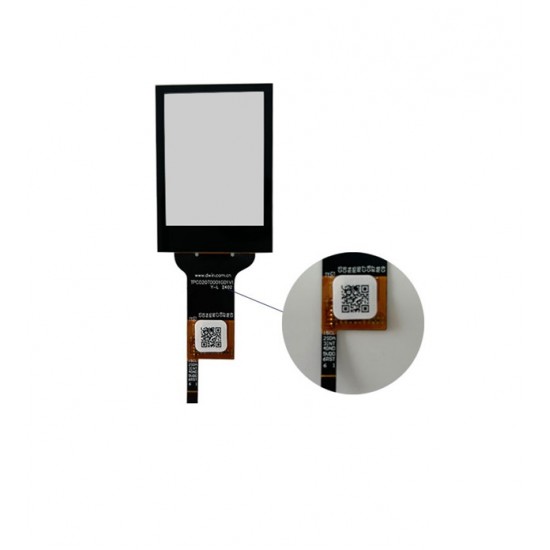

DWIN TPC020T0001G01V1 2.0 Inch Capacitive Touch Panel with GT911 Controller, I2C Interface, G+G Multi-Touch Screen
The DWIN TPC020T0001G01V1 is a high-performance 2.0-inch capacitive touch panel designed for embedded systems, industrial control equipment, smart home devices, medical instruments, and HMI applications. Featuring a durable Glass-to-Glass (G+G) structure and the reliable GT911 touch controller, this touch panel delivers precise multi-touch functionality, excellent optical clarity, and long-term durability.
With its I2C communication interface, the touch panel can be easily integrated with microcontrollers, SBCs, TFT displays, and custom embedded designs. The robust construction provides enhanced scratch resistance and stable operation across a wide temperature range, making it suitable for both consumer and industrial environments.
Features
- 2.0-inch capacitive touch panel
- GT911 capacitive touch controller
- I2C communication interface
- G+G (Glass + Glass) construction
- Supports multi-touch operation
- High optical transmittance (≥85%)
- Surface hardness up to 6H for improved durability
- Compact and lightweight design
- Reliable operation in industrial environments
- Suitable for HMI, IoT, medical, and automation applications
Specifications
- Model: TPC020T0001G01V1
- Display Size: 2.0 Inch
- Touch Technology: Capacitive Multi-Touch
- Structure: G+G (Glass + Glass)
- Controller IC: GT911
- Interface: I2C
- Outline Dimensions: 36.00 × 51.60 × 1.63 mm
- Viewing Area: 30.60 × 40.80 mm
- Cover Lens Thickness: 0.7 mm
- Sensor Glass Thickness: 0.55 mm
- Surface Hardness: 6H
- Light Transmittance: ≥85%
- Operating Temperature: -20°C to +70°C
- Storage Temperature: -30°C to +80°C
Applications
- Industrial control systems
- Human Machine Interface (HMI) devices
- Smart home control panels
- Medical equipment
- Consumer electronics
- Embedded display solutions
- IoT devices
- Custom touchscreen projects
Package Includes
- 1 × DWIN TPC020T0001G01V1 2.0 Inch Capacitive Touch Panel
