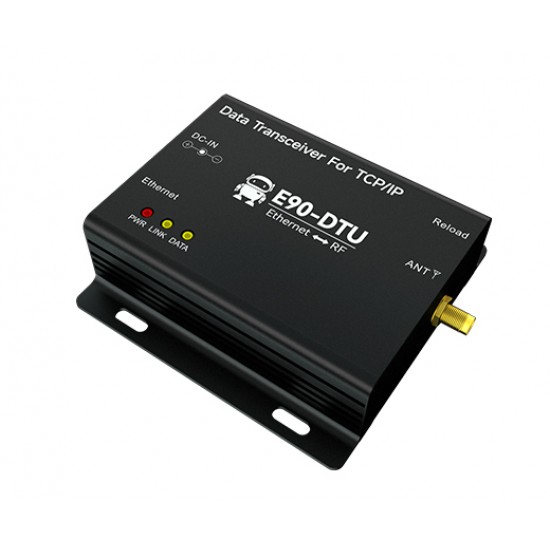

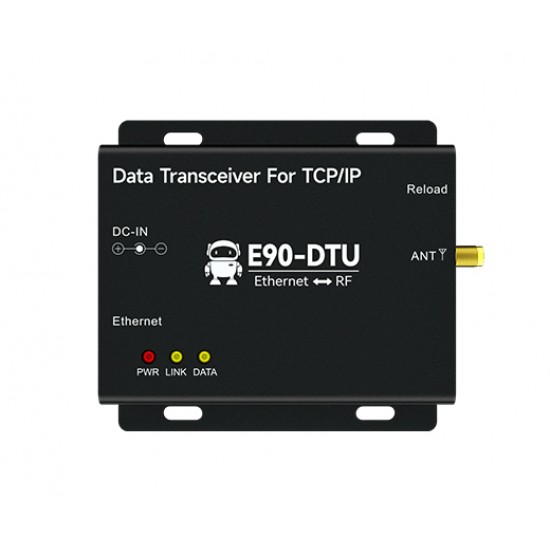

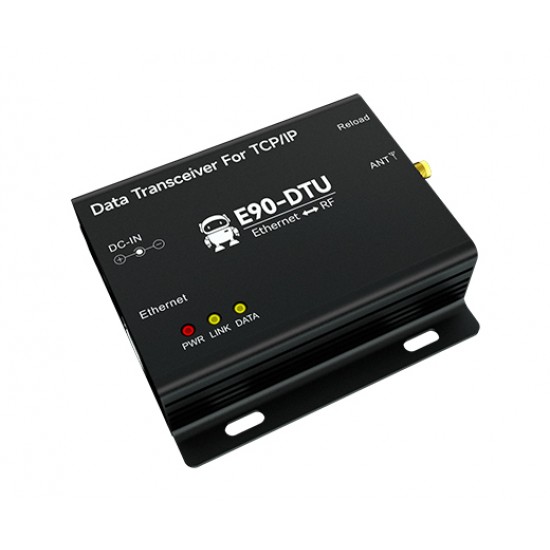

Ebyte E90-DTU(900SL30)E 868～930MHz 30dBm LoRa Wireless Data Transmission Gateway - 10 Km Communication Distance

Ebyte E90-DTU(900SL30)E  868～930MHz 30dBm LoRa Wireless Data Transmission Gateway - 10 Km Communication Distance

E90-DTU(900SL30)E is a wireless gateway (Ethernet interface data transmission radio) that supports 10M/100M rate and is developed by Ebyte based on LoRa communication technology and Ethernet protocol.The shell adopts three-proof coating, which is Anti-Fungal, Anti-Humidity, and Anti-Salt Spray Supports 2-way Socket and provides six working modes: TCP Server, TCP Client, UDP Server, UDP Client, HTTP Client, and MQTT Client. It also supports six-way client connections in TCP server mode.

Datasheet

Features

• Using the latest LoRa technology, it has a longer distance and more powerful performance than traditional LoRa data transmission radios
• Adopts industrial -grade LoRa modulation technology, has data encryption, and the packet length canbeset
• Supports LBT function, the radio waits for transmission according to the current environmental noise intensity, improving the communication success rate of the radio in harsh environments
• Support wireless sending of command data packets, remote configuration and communication encryption
• It can realize multi-level relay networking, effectively expand the communication distance, and achieve ultra-long-distance communication
• Industrial grade design can work in -40℃～+85℃ environment, wide voltage input (DC 8 ～28V)
• All-aluminum alloy shell, compact in size, easy to install and good in heat dissipation
• Perfect shielding design, good electromagnetic compatibility and strong anti-interference ability
• RJ45 adaptive 10/100M Ethernet interface
• Support multiple working modes ( TCPS , TCPC , UDPS , UDPC , HTTPC , MQTTC )
• three configuration methods: configuration tool, web page, and AT command
• Support 2-way Socket
• Server mode supports up to 10 Socket connections
• Support DHCP function
• Supports DNS (domain name resolution) and custom domain name resolution servers;
• Supports a variety of Modbus gateways (simple protocol conversion, multi-host mode, storage gateway, configurable gateway, etc.)
• Supports quick access to Alibaba Cloud, Baidu Cloud, OneNET , Huawei Cloud, and version 3.1 standard MQTT servers
• Support HTTP protocol ( GET/POST request)
• Supports timeout restart function, time can be customized
• Support short connection function, short connection interval can be customized
• Supports heartbeat package and registration package functions
• Supports serial port cache cleaning function
• Supports access to external networks, LAN, and virtual serial port tools
• Support hardware restoration to factory settings and online upgrade

Specifications

• Interface type：Ethernet
• Working frequency：868～930MHz
• Transmit power：30dBm
• Communication distance：10km
• Working Voltage: DC8~28V
• Antenna interface: SMA (external thread, internal hole)
• Operating temperature: -40 ~ +85℃, industrial grade
• Working humidity: 10% ~ 90%, relative humidity, no condensation
• Dimensions84*82*25mm

Package Includes

• 1x Ebyte E90-DTU(900SL30)E  868～930MHz 30dBm LoRa Wireless Data Transmission Gateway - 10 Km Communication Distance
