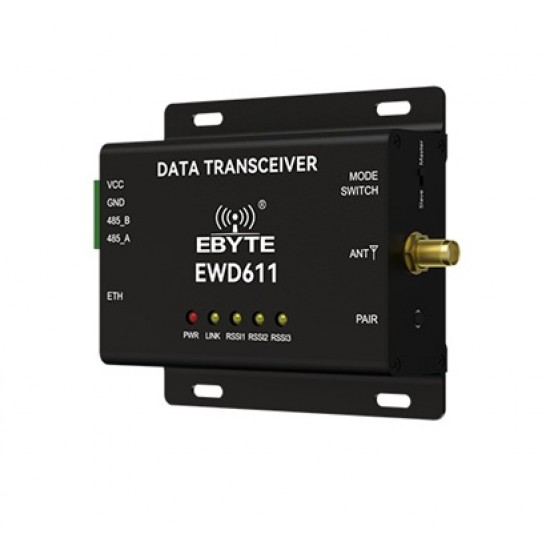

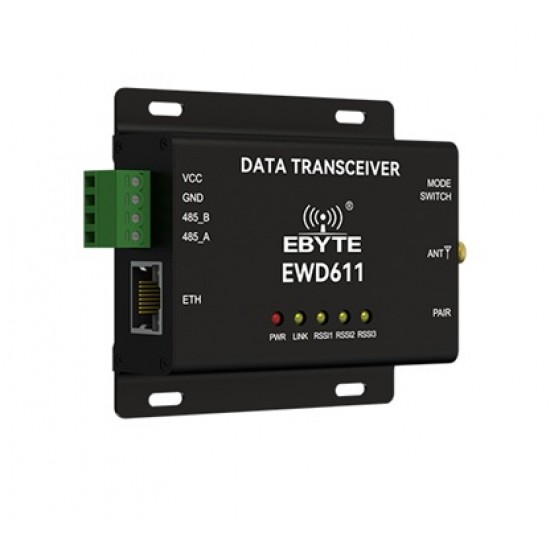

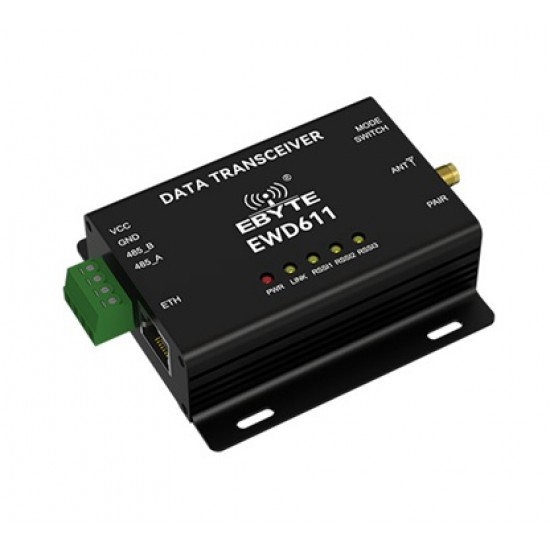

EBYTE EWD611-868NW33(485) Industrial 868MHz Wireless Video & Data Transmission Radio | RS485 + RJ45 Ethernet | 33dBm | 16Mbps | 2km Range
The EWD611-868NW33(485) is a 2W high-power, long-distance data and video transmission radio developed by EBYTE. It integrates video and data transmission, boasting a 16Mbps transmission rate and supporting up to 31 sub-nodes in a network. It also allows for simultaneous transparent transmission via both Ethernet and serial ports. Using standard AT commands, operation is simple and quick. The radio can be widely used in smart wearables, home automation, home security, personal healthcare, smart appliances, accessories and remote controls, automobiles, lighting, industrial internet, intelligent data acquisition, and intelligent control. The product is coated with a conformal coating, providing protection against mold, moisture, and salt spray.
Specifications
- Operating voltage (V): 4.2 ~ 24
- Operating temperature (°C): -40 ~ 85
- Operating frequency band (MHz): 863~ 873
- Transmit power (dBm): 32.5 ~ 33 ~ 33.5
- Power consumption
- Emitting current (mA): 550 ~ 1100 ~ 2000
- Received current (mA): 50 ~ 85 ~ 180
- Receiver sensitivity (dBm): ~107
- Communication distance (m): 1500 ~ 2000
- Communication interface RS485/Network Port
- FLASH: 8MB
- SRAM: 704KB
- External dimensions: 84 82 25mm
- Antenna Interface: SMA-K interface
- Product net weight: 126g
Package Includes
- 1x EBYTE EWD611-868NW33(485) Industrial 868MHz Wireless Video & Data Transmission Radio | RS485 + RJ45 Ethernet | 33dBm | 16Mbps | 2km Range
