EBYTE EWD611-900NW20(485) Industrial 850MHz~930MHz Wireless Video & Data Transmission Radio | RS485 + RJ45 Ethernet | 20dBm | 16Mbps | 1km Range

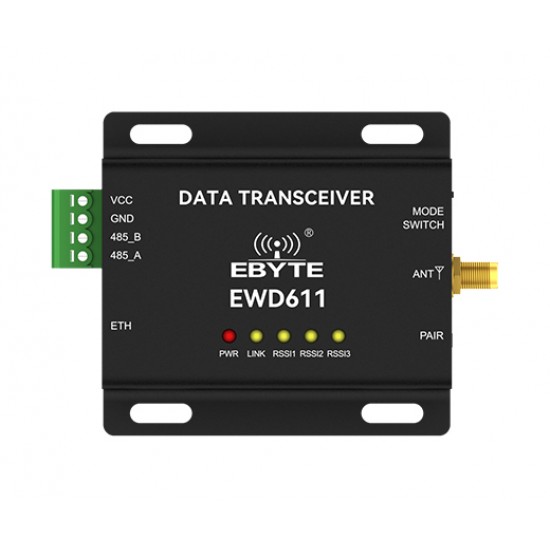

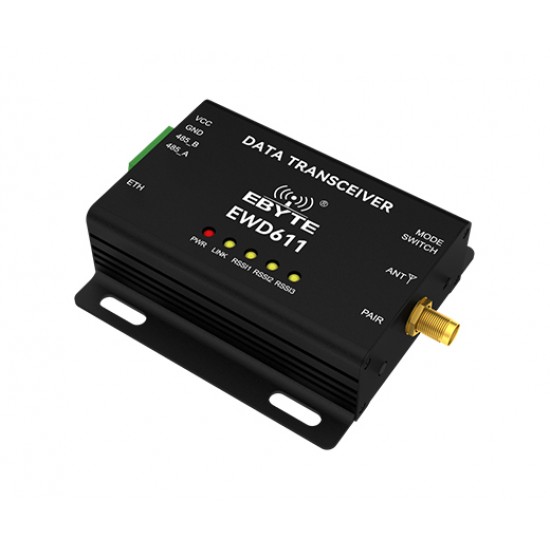

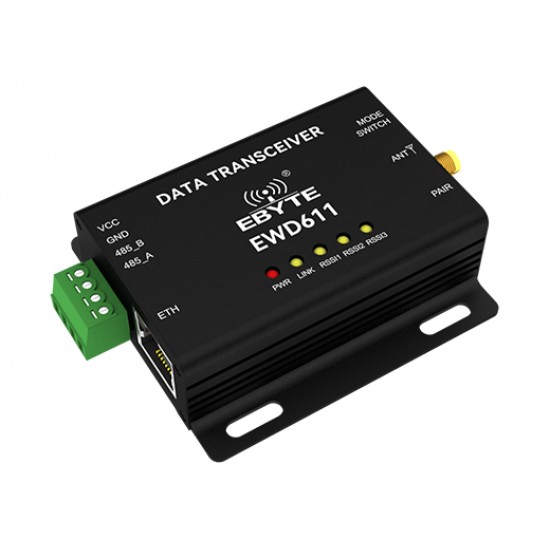

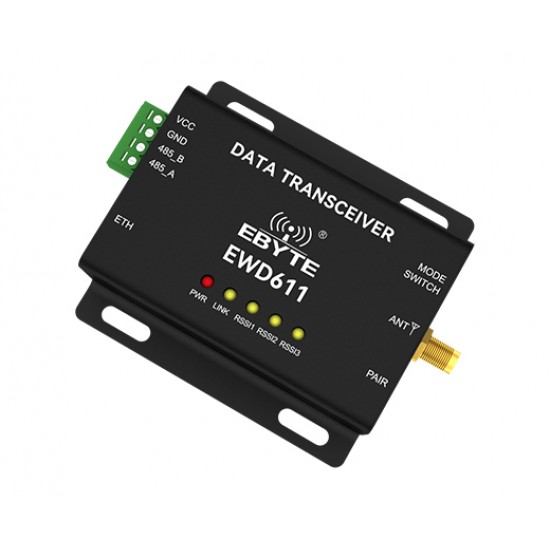

EWD611-900NW20(485) is a long-distance image transmission + data transmission radio developed by Ebit. With a transmission rate of 16Mbps, it can realize 4-channel 1080p video transmission, and can also achieve transparent transmission of network port + serial port at the same time.The shell adopts three-proof coating, which is Anti-Fungal, Anti-Humidity, and Anti-Salt Spray. It works in the 850MHz~930MHz frequency band, and the maximum RF transmission power is 20dBm. The digital radio uses universal AT commands, which is simple and fast to operate. It can be widely used in smart wearables, home automation and other fields.

Datasheet

Specifications

Communication interface: RS485/network port
FLASH: 8MB
SRAM: 704KB
Overall dimensions: 66*68*21.6mm
Antenna interface: SMA-K interface
Product net weight: 68g
Working voltage (V): 5 ~ 15
Supply voltage (V): ~ 12
Working temperature (℃): -40 ~ 85
Working frequency band (MHz: 850 ~ 930
Transmit power (dBm): 19.5 ~ 20.5
Power consumption

Emission current (mA): 500mA
Receive current (mA): 100mA
Sleep current(uA): 10mA

Receiving sensitivity (dBm): -107
Communication distance (m): 500 ~ 1000

Package Includes

1x EBYTE EWD611-900NW20(485) Industrial 850MHz~930MHz Wireless Video & Data Transmission Radio | RS485 + RJ45 Ethernet | 20dBm | 16Mbps | 1km Range
