EBYTE EWD611-915NW33(485) Industrial 915MHz Wireless Video & Data Transmission Radio | RS485 + RJ45 Ethernet | 33dBm | 16Mbps | 2km Range

This product qualifies for Free Surface Shipping !

All orders with value above 1999+GST are eligible for free delivery in Surface mode. (Not applicable for B2B offline orders)
₹​15,276.00
₹​12,945.76 + 18% GST
All Inclusive, Shipping Calculated at Checkout
Assured Cashback of ₹ 129
B2B GST Credit Available
Price in reward points: 12945

EBYTE EWD611-915NW33(485) Industrial 915MHz Wireless Video & Data Transmission Radio | RS485 + RJ45 Ethernet | 33dBm | 16Mbps | 2km Range

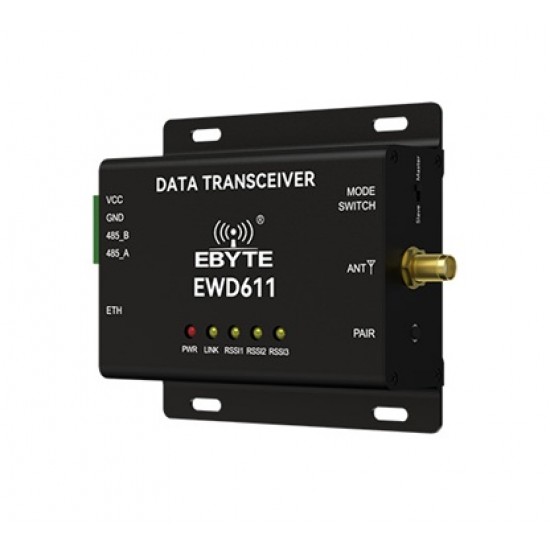

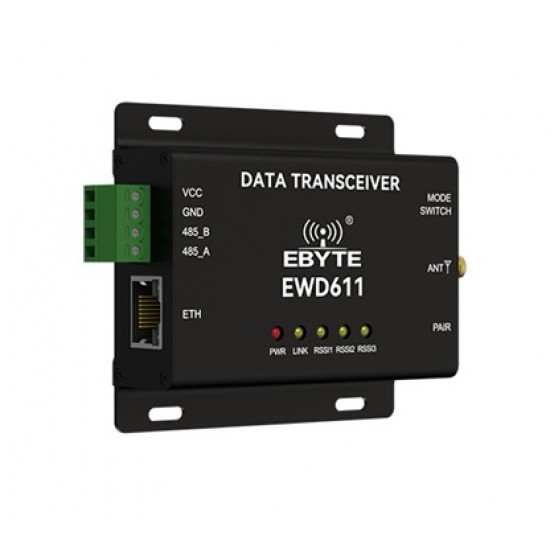

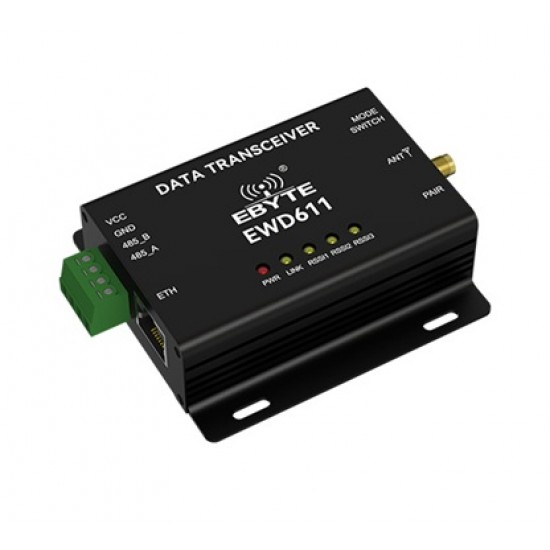

The EWD611-915NW33(485) is a 2W high-power, long-distance data and video transmission radio developed by Ebyte. It integrates video and data transmission, boasting a 16Mbps transmission rate and supporting up to 4 channels of 1080p video transmission. It can support a network of up to 31 sub-nodes and can also perform simultaneous transparent transmission via Ethernet and serial ports. Using universal AT commands, operation is simple and quick. The radio can be widely used in smart wearables, home automation, home security, personal healthcare, smart appliances, accessories and remote controls, automobiles, lighting, industrial internet, intelligent data acquisition, and intelligent control. The product is coated with a conformal coating, providing protection against mold, moisture, and salt spray.


Datasheet


Specifications

  • Operating voltage (V): 4.2 ~ 24
  • Operating temperature (°C): 40 ~ 85
  • Operating frequency band (MHz): 902 ~ 928
  • Transmit power (dBm): 32.5 ~ 33.5
  • Power consumption
    • Emitting current (mA): 550 ~ 2000
    • Received current (mA) 50 ~ 180
  • Communication distance (m): 2000
  • Communication interface: RS485/Network Port
  • FLASH: 8MB
  • SRAM: 704KB
  • External dimensions: 84 82 25mm
  • Antenna Interface: SMA-K interface
  • Product net weight: 126g


Package Includes

  • 1x EBYTE EWD611-915NW33(485) Industrial 915MHz Wireless Video & Data Transmission Radio | RS485 + RJ45 Ethernet | 33dBm | 16Mbps | 2km Range
