Name: EC200U-CN 4G LTE GNSS Mini Modem – USB-C, GPS Tracking
Brand: 7Semi
SKU: 07959
Price: 2107.00 INR
Availability: OutOfStock

EC200U-CN 4G LTE GNSS Mini Modem – USB-C, GPS Tracking

7Semi

EC200U-CN 4G LTE GNSS Mini Modem – USB-C, GPS Tracking

Based on 0 reviews. - Write a review

₹2,107.00

₹1,785.59 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 18
B2B GST Credit Available

Price in reward points: 1785

Stock: 0 in Stock
SKU: 07959
Delivery Time
Bulk & B2B RFQ

Buy Now NOTIFY WHEN AVAILABLE

Plan to Buy Later ? Add to Wish List

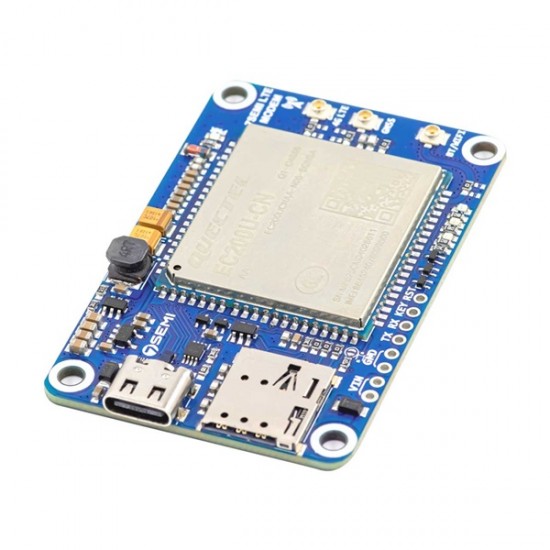

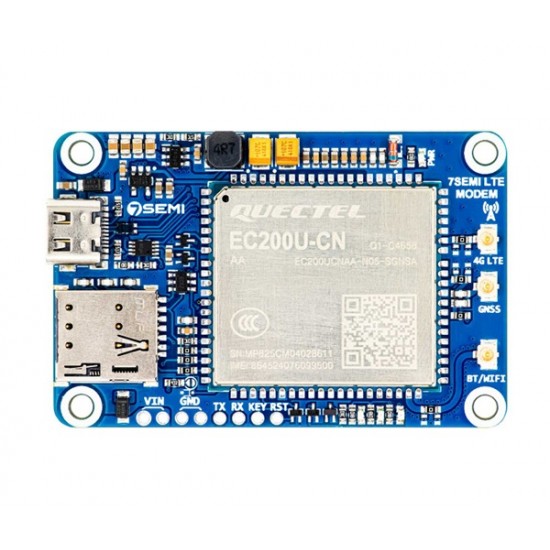

EC200U-CN 4G LTE GNSS Mini Modem – USB-C, GPS Tracking

EC200U-CN 4G LTE Mini Modem is a compact and easy-to-use module for internet connectivity and location tracking. It supports 4G LTE with fallback to 2G networks, so you get stable connection in most areas. It also supports GNSS like GPS, GLONASS, BeiDou, Galileo, and QZSS for accurate location tracking. The modem can be powered using USB or external supply and supports both USB and UART communication, making it flexible for different setups. It comes with an FPC antenna for better signal strength. This module is ideal for IoT, tracking, automation, and communication projects.

Datasheet

Features

4G LTE Connectivity: Supports LTE with fallback to GSM networks.
GNSS Support: Works with GPS, GLONASS, BeiDou, Galileo, and QZSS.
Easy Power Options: Can use USB (5V) or external power (5–26V).
USB & UART Support: Simple connection for communication and control.
Nano SIM Support: Works with standard nano SIM cards.
Strong Signal: Comes with FPC antenna for better network reception.
Wide Frequency Support: Works across multiple LTE and GSM bands.
Compact Design: Small and easy to integrate into projects.
Ideal for IoT: Suitable for tracking, remote monitoring, and automation.

Specifications

Cellular Module: Quectel EC200U-CN LTE Cat 1
Network Support: 4G LTE Cat 1 with 2G GSM fallback
LTE-FDD Bands: B1, B3, B5, B8
LTE-TDD Bands: B34, B38, B39, B40, B41
GSM Bands: 900MHz, 1800MHz
GNSS Support: GPS, GLONASS, BeiDou, Galileo, QZSS
GNSS Frequency: L1
Communication Interface: USB Type-C, UART
SIM Type: Nano SIM
Input Voltage: USB-C 5V or External 5V–26V
Operating Temperature: -40°C to +80°C

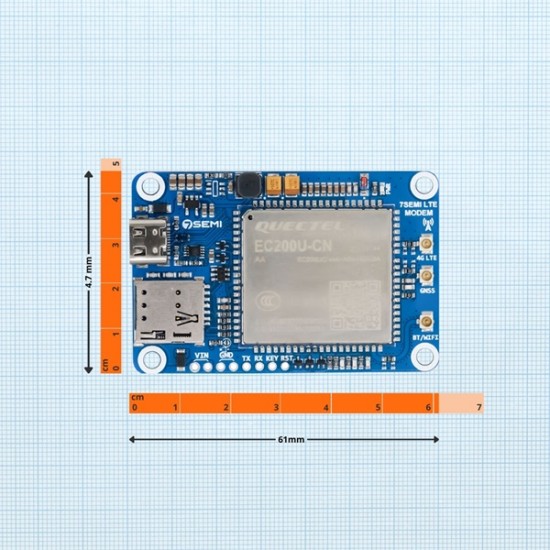

Dimensions: 61 × 40 × 4.92 mm
Typical Applications: IoT, GPS Tracking, Fleet Management, Asset Tracking, Remote Monitoring, Industrial Automation
Regional Compatibility: India & China LTE Bands Supported

Package Includes

1x 7Semi EC200U-CN 4G LTE GNSS Mini Modem – USB-C, GPS Tracking
