Elecrow 3.5inch IPS SPI LCD Capacitive Touch Display Module With ST7796 Driver - 320x480 Resolution, Arduino Compatible (MPN:DLS30035B)

Elecrow 3.5inch IPS SPI LCD Capacitive Touch Display Module With ST7796 Driver - 320x480 Resolution, Arduino Compatible

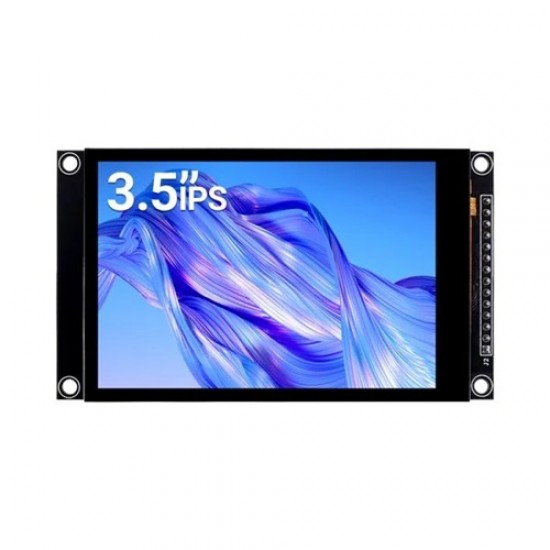

This 3.5-inch IPS SPI module, equipped with ST7796 driver chip, presents you with 320x480 resolution and 16.7M color delicate display, whether it is images or text, it can be presented in rich and delicate colors. The IPS panel ensures that you can enjoy a clear and color-free visual experience from any angle. Capacitive touch technology makes interactive operation easy. Onboard level conversion circuit, compatible with 5V and 3.3V MCU. 4-wire SPI serial bus design effectively saves I/O pin resources and simplifies hardware design. The input interface provides two options of 2.54 pin header and FPC extension interface to meet the connection requirements in different scenarios. It comes with a micro TF card slot, and it can provide great convenience for your data storage needs.

We not only provide underlying driver technology support, but also a wealth of example learning programs, covering various mainstream development platforms such as ESP32, STM32, Arduino UNO, etc. Whether you are a beginner or an experienced developer, you can quickly get started and make your development process smooth. Whether you are engaged in intelligent hardware development or industrial automation applications, this module can provide you with a stable, efficient and convenient display solution, and is an ideal choice for your project development.

User Manual / Datasheet / Example Codes Etc.

Features

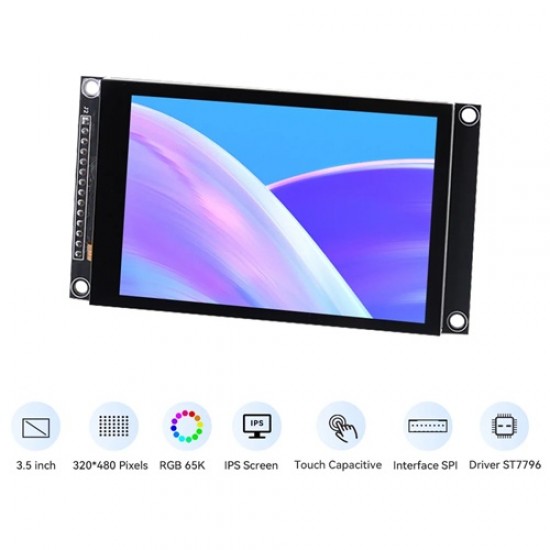

• 3.5-inch color screen, 320x480 resolution, 65K colors, rich display colors
• Capacitive touch, sensitive response
• IPS full-view panel, good viewing angle
• Onboard level conversion circuit, compatible with 5V and 3.3V MCU
• 4-wire SPI serial bus, saving I/O pins

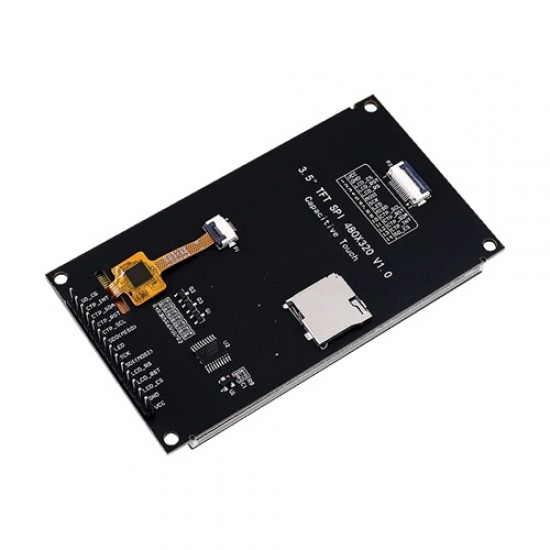

• Module input supports 2.54 pin header interface and FPC extension interface
• On board micro TF card slot, can expand more storage space
• Provide underlying driver technology support, easy to get started
• Provide rich example learning programs (ESP32/STM32/Arduino UNO)

Specifications

• LCD Screen
• Size: 3.5 inch
• Screen Type: IPS
• Resolution: 320xRGBx480 (pixels)
• Number of Colors(Max): 16.7M
• Driver IC: ST7796U
• Interface: 4-wire SPI interface
• Brightness(TYP): 300(cd/m2)
• Backlight Type: White LED*6
• Operating Temperature; -30℃~80℃
• Storage Temperature: -30℃~80℃
• Touch Screen
• Touch Screen Type: Capacitive Touch Screen
• Driver IC: FT6336U
• Communication Interface: IIC
• Operation Temperature: -20~70(℃)
• Storage Temperature: -30~80(℃)
• Other
• Working Voltage: 5V
• Backlight Current: 95mA
• Power: 0.5w
• Interface: 14P 2.54mm spacing Header and 0.5mm spacing FPC seat
• Active Area: 48.96x73.44(mm)

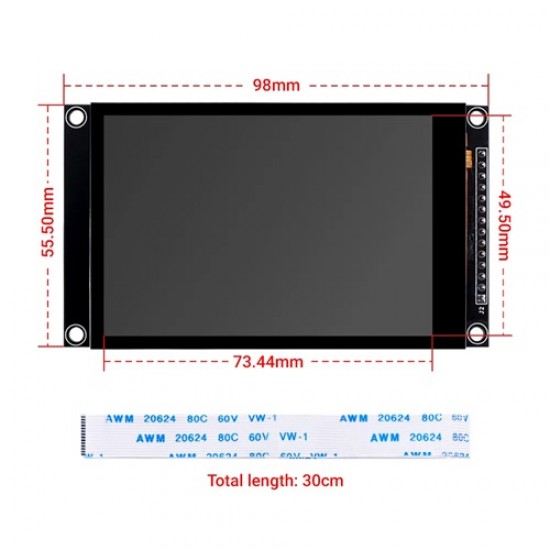

• Module Size: 55.5x98x14.28(mm)

Package Includes

• 1x 3.5 inch SPI IPS Display
• 1x 30cm 14Pin FPC Cable
